[DISCONTINUED] IB836B-EHT Vivotek 2.8-12mm Varifocal 30FPS @ 1920 x 1080 Outdoor IR Day/Night WDR Bullet IP Security Camera 12VDC/PoE - Extreme Weather

VIVOTEK's IB836B-H is a series of stylish, bullet-style network cameras designed for diverse outdoor applications and offering a complete range of options. Equipped with a 2MP Full HD sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IB836B-H series is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel with WDR and SNV technology, no matter whether in high contrast or in low light environments.

Increasing its flexibility, VIVOTEK's IB836B-H series provides options for both fixed focus used for simple operation without electrical power, and remote focus with built-in stepping motors and P-iris to provide precise adjustment remotely.

Specifications

• Model - Fixed-focal, Extreme Weather

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 1Gb
• RAM - 2Gb

Camera Features

• Image Sensor - 1/2.8" Progressive CMOS
• Maximum Resolution - 1920x1080 (2MP)
• Lens Type - Fixed-focal
• Focal Length - f = 3.6 mm
• Aperture -F 2.1
• Field of View
• 83° (Horizontal)
• 53° (Vertical)
• 91° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR
• Day/Night - Removable IR-cut filter for day & night function
• Minimum Illumination
  • 0.6 Lux @ F2.1 (Color)
  • 0.001 Lux @ F2.1 (B/W)
• Pan/tilt/zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
• IR Illuminators
  • Built-in IR illuminators, effective up to 30 meters
  • with Smart IR
  • IR LED*8

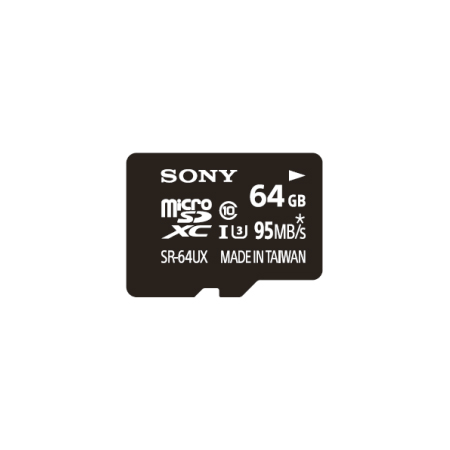

• On-board Storage - Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.264 & MJPEG
• Maximum Frame Rate
  • 30 fps @ 1920x1080
  • In both compression modes
• Maximum Streams - 4 simultaneous streams
• S/N Ratio - Above 58 dB
• Dynamic Range - 100dB
• Video Streaming - Adjustable resolution, quality and bitrate, Smart Stream
• Image Settings - Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast,saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, Video Rotation, Defog

Audio

• Audio Capability - Two-way audio (full duplex)
• Compression - G.711, G.726
• Interface - Built-in Microphone External line output

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
• Interface - 10 Base-T/100 BaseTX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection
• VCA* - Line crossing detection, field detection, loitering detection

Alarm and Event

• Alarm Triggers - Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
• Alarm Events - Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD CardFile upload via HTTP, SMTP, FTP, NAS server and SD card

General

• Connectors
  • RJ-45 cable connector for Network/PoE connection
  • Audio input
  • Audio output
  • DC 12V power input
  • Digital input*1
  • Digital output*1
• LED Indicator - System power and status indicator
• Power Input - DC 12V IEEE 802.3af/at PoE Class 0
• Power Consumption - Max. 9 W
• Dimensions - Ø 88 x 293 mm
• Weight - Net: 1264 g
• Casing
  • Weather-proof IP66-rated housing
  • Vandal-proof IK10-rated metal housing
• Safety Certifications - CE, LVD, FCC Class B, VCCI, C-Tick
• Operating Temperature
  • Starting Temperature - 10°C ~ 50°C (14°F~ 122°F)
  • Working Temperature - -20°C ~ 50°C (-4°F~ 122°F)
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 7/8/Vista/XP/2000
• Web Browser - Mozilla Firefox 7~10 (streaming only) Internet Explorer 7/8/9/10/11
• Other Players
  • VLC: 1.1.11 or above
  • Quicktime: 7 or above

Included Accessories

• CD - User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software
• Others - Quick installation guide, warranty card, alignment sticker/desiccant bag, screw pack

IB836B-EHT Specifications PDF
