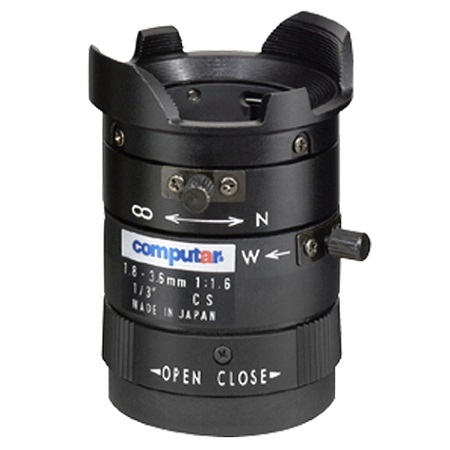

T2Z1816CS Computar CS-Mount 1.8-3.6mm Vari-focal F/1.6 Manual Iris Lens

Specifications

• Model No - T2Z1816CS
• Focal Length - 1.8mm - 3.6mm
• Max. Aperture Ratio - 1:1.6
• Max. Image Format - 4.8mm x 3.6mm (φ8mm)
• Operation Range
• Iris - F1.6 ‐ F16C
• Focus - 0.2m ‐ lnf.
• Zoom - 1.8mm - 3.6mm
• Control
• Iris - Manual
• Focus - Manual
• Zoom - Manual
• Object Dimension at M.O.D.
  • 1.8mm - 123.8cm x 56.5cm
  • 3.6mm - 33.2cm x 22.9cm
• Angle of View
• 1/3 type
  • D - 173.8°‐ 99.0°
  • H - 144.2°‐ 79.4°
  • V - 109.9°‐ 59.6°
• 1/4 type
• D - 135.8°‐ 74.4°
• H - 109.5°‐ 59.6°
• V - 82.3°‐ 44.7°
• Operating Temperature - -20°C ‐ +50°C
• Effective Lens Aperture
• Front - φ22.0mm
• Rear - φ7.9mm
• Back Focal Length
• Tele - 10.5mm
• Wide - 7.0mm
• Flange Back Length - 12.5mm
• Mount - CS‐Mount
• Filter Size -
• Dimensions - φ37.4mm x 51mm
• Weight - 68g

T2Z1816CS Specification PDF
