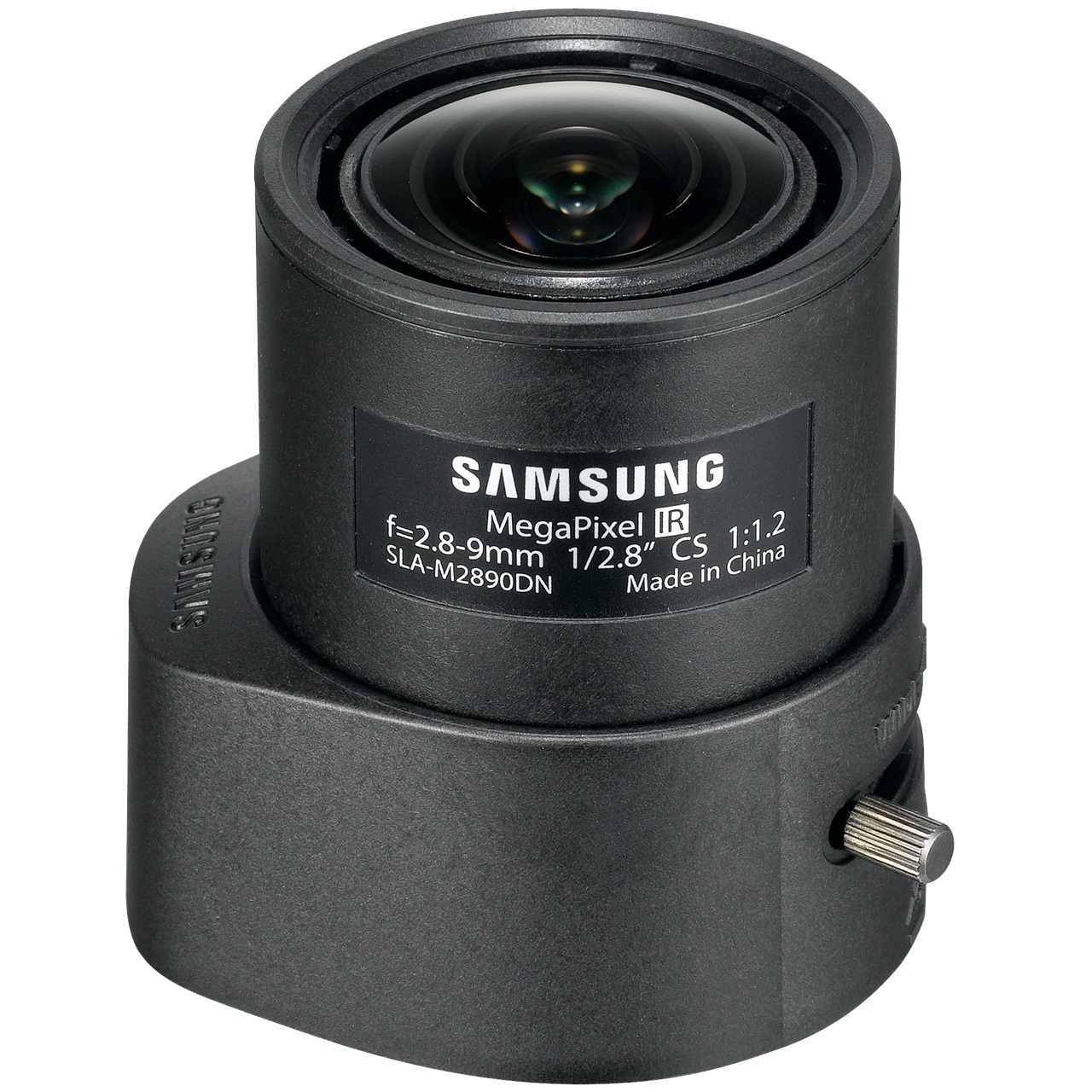

SLA-M2890DN Hanwha Vision Lens 1/2.8" 3 MP Vari-focal (2.8-9.0mm) Auto DC Iris CS-Mount

Specifications

Video

• CCD - 1/2.8"
• Resolution - 1.3Megapixel
• Zoom Ratio - 3.2x
• Focal length - 2.8 ~ 8.2mm (0.11" ~ 0.35")
• Max. Aperture Ratio - 1 : 1.2 ~ 360
• Max. image Format - 5.12(H) x 3.84(V) (Ø6.7mm)
• Angular Field of View - Diagonal - 134.2Ëš ~ 42.7Ëš ; Horizontal - 104.2Ëš ~ 33.7Ëš : Vertical - 77.2Ëš ~ 25.3Ëš

Operation

• iris - Auto (F1.2 ~ 360)
• Focus - Manual (0.3m ~ ∞)
• Zoom - Manual (2.8 ~ 9mm)
• iris Type - DC

Effective lens Aperture

• Front - Ø25mm (Ø0.98")
• Rear - Ø6.8mm (Ø0.27")

Operation

• Back Focal length - 7.52mm (0.3") (In air)
• Flange Back length - 12.5mm (0.49")
• Mount - CS-mount
• Dimensions (WxHxD) - 45.0 x 51.5 x 54.3mm (1.77" x 2.03" x 2.14")
• Weight - 84g (0.19 lb)

SLA-M2890DN Specifications PDF
