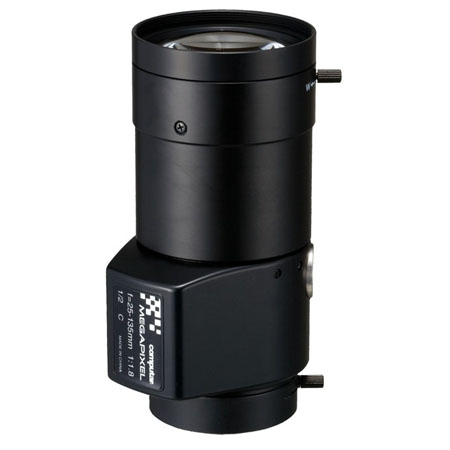

HG5Z2518FC-MP Computar C-Mount 25-135mm F/1.8 3 Mega-Pixel Varifocal HD Series DC Auto Iris Lens

Specifications

• Model No. - HG5Z2518FC-MP
• Focal Length - 25mm - 135mm
• Max. Aperture Ratio - 1:1.8
• Max. Image Format - 4.8mm x 6.4mm( 0 8.0mm)
• Operation Range
  • Iris - FI.8 - F360C
  • Focus - 1.5m - Inf.
  • Zoom - 25mm - 135mm
• Control
  • Iris - DC Auto Iris
  • Focus - Manual
  • Zoom - Manual
• Angle of View
  • D - 18.4" - 3.5°
  • H - 14.5" - 2.8°
  • V - 10.8° - 2.1°
• Coil
  • Drive - 190Ω
  • Control - 1000Ω
Operating Temperature - -10°C - +50°C
• Effective Lens Aperture
  • Front - 044.5mm
  • Rear - 0 12.2mm
• Back Focal Length
  • Tele - 12.0mm
  • Wide - 16.4mm
• Flange Back Length - 17,526mm
• Mount - C-Mount
• Filter Size - M52 x 0.75
• Dimensions - 054 x 64 x 117
• Weight - 450 g
• 1/3 type
  • 13.6" - 2.6°
  • 10.8° - 2.1°
  • 8.1° - 1.6°
• 1/4 type
  • 10.1° -2.0°
  • 8.1° - 1.6°
  • 6.0° - 1.2°



  HG5Z2518FC-MP Specifications PDF
