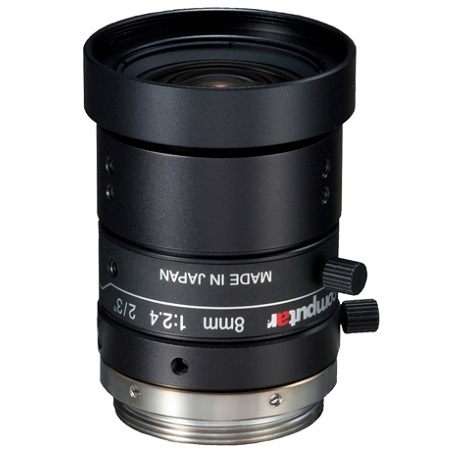

M0824-MPW2 Computar 2/3" C-Mount 8mm F/2.4 5 Mega-Pixel Ultra Low Distortion Lens

Specifications

• Model No. - M0824-MPW2
• Focal Length - 8mm
• Max. Aperture Ratio - 1:2.4
• Max. Image Format - 8.8mm x 6.6mm(φ11mm)
• Operation Range
  • Iris -F2.4 ‐ F16.0
  • Focus - 0.05m ‐ Inf.
• Control
  • Iris - Manual
  • Focus - Manual
• Object Dimension at M.O.D.
  • 2/3 Type - 5.4cm x 7.4cm
  • 1/1.8 Type - 4.3cm x 5.7cm
  • 1/2 Type - 3.9cm x 5.3cm
• Angle of View
  • D - 69.32°
  • H - 57.80°
  • V - 44.36°
• Operating Temperature - -10℃ ‐ +50℃
• Effective Lens Aperture
  • Front - φ21.0mm
  • Rear - φ12.0mm
• Distortion
  • 2/3 type - -1.87%(y=5.5)
  • 1/1.8 type - -1.55%(y=4.32)
  • 1/2 type - -1.42%(y=4.0)
• Back Focal Length - 13.7mm
• Flange Back Length - 17.526mm
• Mount - C‐Mount
• Filter Size - M32.0 P=0.5mm
• Dimensions - φ32mm x 45.71mm
• Weight - 80.0g
• 1/1.8 type
  • 56.90°
  • 46.72°
  • 35.75°
• 1/2 type
  • 53.23°
  • 43.74°
  • 33.23°

M0824-MPW2 Specifications PDF
