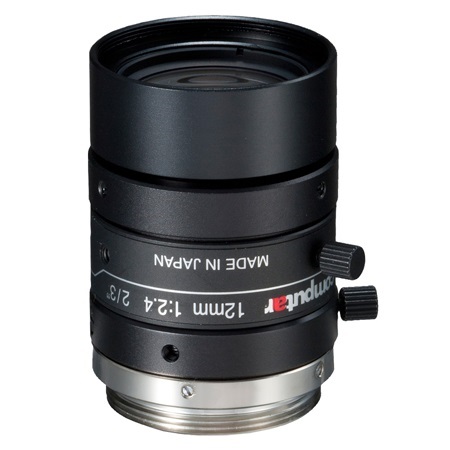

M1224-MPW2 Computar 2/3" C-Mount 12mm F/2.4 5 Mega-Pixel Ultra Low Distortion Lens

Specifications

• Model No. - M1224-MPW2
• Focal Length - 12mm
• Max. Aperture Ratio - 1:2.4
• Max. Image Format - 8.8mm x 6.6mm(φ11mm)
• Operation Range
  • Iris -F2.4 ‐ F16.0
  • Focus - 0.1m ‐ Inf.
• Control
  • Iris - Manual
  • Focus - Manual
• Object Dimension at M.O.D.
  • 2/3 Type - 6.4cm x 8.5cm
  • 1/1.8 Type - 5.0cm x 6.7cm
  • 1/2 Type - 4.6cm x 6.2cm
• Angle of View
  • D - 48.6°
  • H - 39.8°
  • V - 30.4°
• Operating Temperature - -10℃ ‐ +50℃
• Effective Lens Aperture
  • Front - φ19.5mm
  • Rear - φ13.5mm
• Distortion
  • 2/3 type - -0.05%(y=5.5)
  • 1/1.8 type - -0.34%(y=4.32)
  • 1/2 type - -0.35%(y=4.0)
• Back Focal Length - 14.39mm
• Flange Back Length - 17.526mm
• Mount - C‐Mount
• Filter Size - M27.0 P=0.5mm
• Dimensions - φ29mm x 42.68mm
• Weight - 72.0g
• 1/1.8 type
  • 39.1°
  • 31.7°
  • 24.0°
• 1/2 type
  • 36.5°
  • 29.5°
  • 22.3°

M1224-MPW2 Specifications PDF
