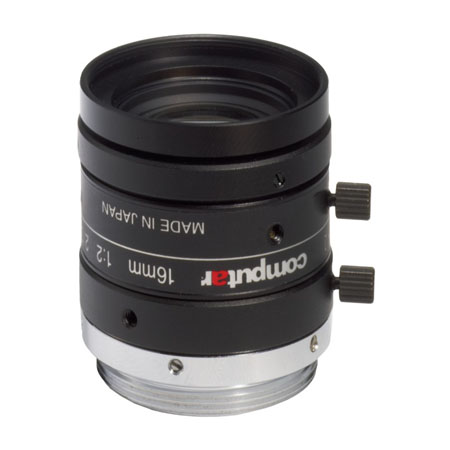

M1620-MPW2 Computar 2/3" C-Mount 16mm F/2.0 5 Mega-Pixel Ultra Low Distortion Lens

Specifications

• Model No. - M1620-MPW2
• Focal Length - 16mm
• Max. Aperture Ratio - 1:2.0
• Max. Image Format - 8.8mm x 6.6mm(φ11mm)
• Operation Range
  • Iris - F2.0 ‐ F16.0
  • Focus - 0.2m ‐ Inf.
• Control
  • Iris - Manual
  • Focus - Manual
• Object Dimension at M.O.D.
  • 2/3 Type - 8.8cm x 11.74cm
  • 1/1.8 Type - 6.93cm x 9.20cm
  • 1/2 Type - 6.40cm x 8.53cm
• Angle of View
  • D - 37.7°
  • H - 30.7°
  • V - 23.3°
• Operating Temperature - -10℃ ‐ +50℃
• Effective Lens Aperture
  • Front - φ18.0mm
  • Rear - φ11.0mm
• Distortion
  • 2/3 type - 0.09%(y=5.5)
  • 1/1.8 type - -0.06%(y=4.32)
  • 1/2 type - -0.07%(y=4.0)
• Back Focal Length - 14.7mm
• Flange Back Length - 17.526mm
• Mount - C‐Mount
• Filter Size - M27.0 P=0.5mm
• Dimensions - φ29mm x 33.53mm
• Weight - 53.0g
• 1/1.8 type
  • 30.1°
  • 24.3°
  • 18.5°
• 1/2 type
  • 28.0°
  • 22.6°
  • 17.1°

M1620-MPW2 Specifications PDF
