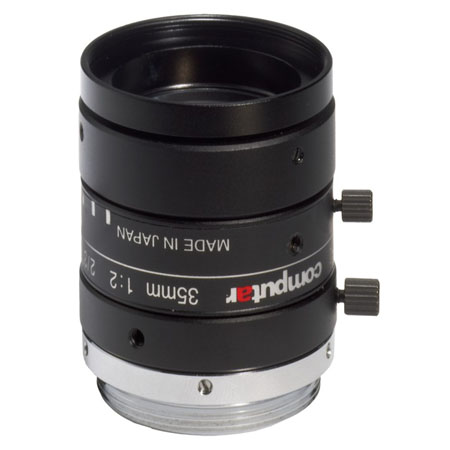

M3520-MPW2 Computar 2/3" C-Mount 35mm F/2.0 5 Mega-Pixel Ultra Low Distortion Lens

Specifications

• Model No. - M3520-MPW2
• Focal Length - 35mm
• Max. Aperture Ratio - 1:2.0
• Max. Image Format - 8.8mm x 6.6mm(φ11mm)
• Operation Range
  • Iris - F2.0 ‐ F22.0
  • Focus - 0.2m ‐ Inf.
• Control
  • Iris - Manual
  • Focus - Manual
• Object Dimension at M.O.D.
  • 2/3 Type - 3.48cm x 4.63cm
  • 1/1.8 Type - 2.74cm x 3.63cm
  • 1/2 Type - 2.53cm x 3.37cm
• Angle of View
  • D - 17.8°
  • H - 14.3°
  • V - 10.7°
• Operating Temperature - -10℃ ‐ +50℃
• Effective Lens Aperture
  • Front - φ18.0mm
  • Rear - φ12.0mm
• Distortion
  • 2/3 type - 0.011%(y=5.5)
  • 1/1.8 type - 0.010%(y=4.32)
  • 1/2 type - 0.009%(y=4.0)
• Back Focal Length - 18.0mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M27.0 P=0.5mm
• Dimensions - φ29mm x 37.34mm
• Weight - 59.0g
• 1/1.8 type
  • 14.0°
  • 11.2°
  • 8.5°
• 1/2 type
  • 13.0°
  • 10.4°
  • 7.8°

M3520-MPW2 Specifications PDF
