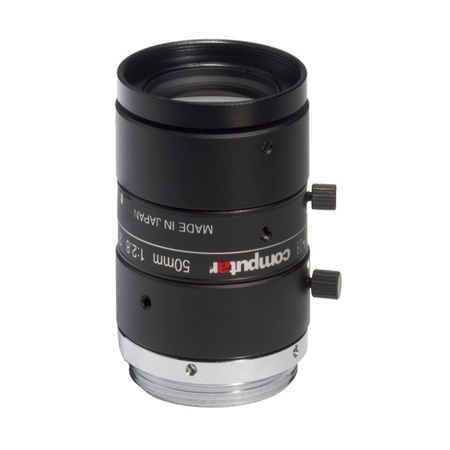

M5028-MPW2 Computar 2/3" C-Mount 50mm F/2.8 5 Mega Pixel Ultra Low Distortion Manual Iris Lens

Specifications

• Model No. - M5028-MPW2
• Focal Length - 50mm
• Max. Aperture Ratio - 1:2.8
• Max. Image Format - 8.8mm x 6.6mm(φ11mm)
• Operation Range
  • Iris - F2.8 ‐ F32.0
  • Focus - 0.4m ‐ Inf.
• Control
  • Iris - Manual
  • Focus - Manual
• Object Dimension at M.O.D.
  • 2/3 Type - 4.78cm x 6.38cm
  • 1/1.8 Type - 3.77cm x 5.00cm
  • 1/2 Type - 3.77cm x 5.00cm
• Angle of View
  • D - 12.5°
  • H - 10.0°
  • V - 7.5°
• Operating Temperature - -10℃ ‐ +50℃
• Effective Lens Aperture
  • Front - φ18.0mm
  • Rear - φ12.0mm
• Distortion
  • 2/3 type - 0.027%(y=5.5)
  • 1/1.8 type - 0.017%(y=4.32)
  • 1/2 type - 0.015%(y=4.0)
• Back Focal Length - 27.7mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M27.0 P=0.5mm
• Dimensions - φ29mm x 45.36mm
• Weight - 69.0g
• 1/1.8 type
  • 9.9°
  • 7.9°
  • 5.9°
• 1/2 type
  • 9.1°
  • 7.3°
  • 5.5°
