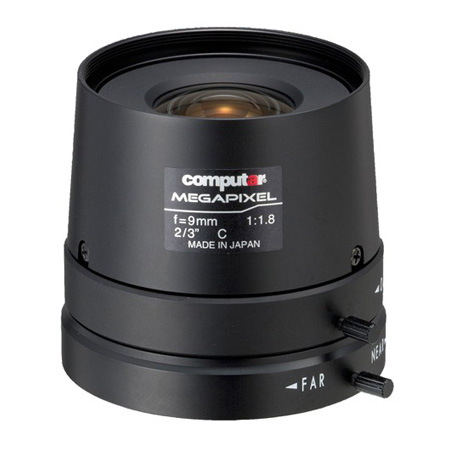

M0918FIC-MP Computar 2/3" C-Mount 9mm F/1.8 5 Megapixel Manual Iris Lens

Specifications

• Model No. - M0918FIC-MP
• Focal Length - 9mm
• Max. Aperture Ratio - 01:01.8
• Max. Image Format - 6.6mm x 8.8mm(φ11mm)
• Operation Range
  • Iris - F1.8 ‐ F16C
  • Focus - 1m ‐ lnf.
• Control
  • Iris - Manual
  • Focus - Manual
• Angle of View
  • 2/3 type
    • D - 63.4°
    • H - 52.1°
    • V - 39.9°
  • 1/2 type
    • D - 47.8°
    • H - 38.7°
    • V - 29.3°
  • 1/3 type
    • D - 36.4°
    • H - 29.3°
    • V - 22.1°
• Effective Lens Aperture
  • Front - φ20.1mm
  • Rear - φ12.4mm
• Back Focal Length - 14.8mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M40.5 x 0.5
• Dimensions - φ47.5mmx45mm
• Weight - 133.6 g
• Operating Temperature - -10℃ ‐ +50℃
