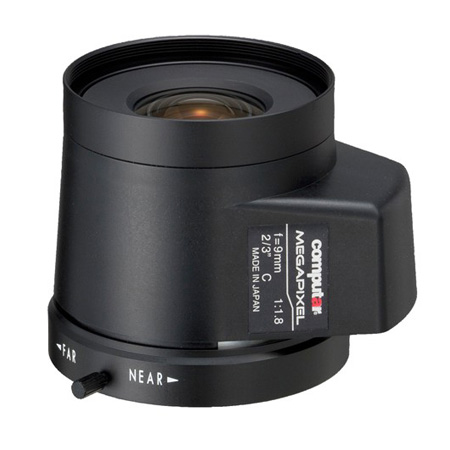

MG0918FC-MP Computar 2/3" C-Mount 9mm F/1.8 5 Megapixel DC Auto Iris Lens

Specifications

• Model No. - MG0918FC-MP
• Focal Length - 9mm
• Max. Aperture Ratio - 1:1.8
• Max. Image Format - 6.6mm x 8.8mm(φ11mm）
• Operation Range
  • Iris - F1.8 ‐ F360C
  • Focus - 1m ‐ lnf..
• Control
  • Iris - DC Auto Iris
  • Focus - Manual
• Angle of View
  • 2/3 type
    • D - 63.4°
    • H - 52.1°
    • V - 39.9°
  • 1/2 type
    • D - 47.8°
    • H - 38.7°
    • V - 29.3°
  • 1/3 type
    • D - 36.4°
    • H - 29.3°
    • V - 22.1°
• Effective Lens Aperture
  • Front - φ20.1mm
  • Rear - φ12.4mm
• Back Focal Length - 14.8mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M40.5 x 0.5
• Dimensions - φ42mmx57.8mm x45mm
• Weight - 107 g
• Coil
  • Drive - 190Ω
  • Control - 1000Ω
• Operating Temperature - -10℃ ‐ +50℃

MG0918FC-MP Specifications PDF
