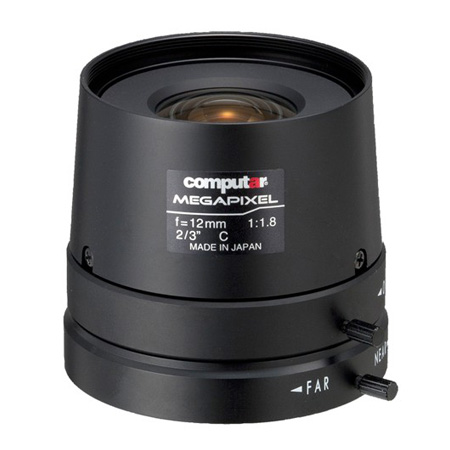

M1218FIC-MP Computar 2/3" C-Mount 12mm F/1.8 5 Megapixel Manual Iris Lens

Specifications

• Model No. - M1218FIC-MP
• Focal Length - 12mm
• Max. Aperture Ratio - 1:1.8
• Max. Image Format - 6.6mm x 8.8mm(φ11mm）
• Operation Range
  • Iris - F1.8 ‐ F16C
  • Focus - 1m ‐ lnf.
• Control
  • Iris - DC Auto Iris
  • Focus - Manual
• Angle of View
  • 2/3 type
    • D - 48.0°
    • H - 39.3°
    • V - 30.0°
  • 1/2 type
    • D - 36.0°
    • H - 29.1°
    • V - 22.0°
  • 1/3 type
    • D - 27.4°
    • H - 22.0°
    • V -16.6°
• Effective Lens Aperture
  • Front - φ20.0mm
  • Rear - φ13.2mm
• Back Focal Length - 15.0mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M40.5 x 0.5
• Dimensions - φ47.5mmx45mm
• Weight - 132.2 g
• Operating Temperature - -10℃ ‐ +50℃

M1218FIC-MP Specifications PDF
