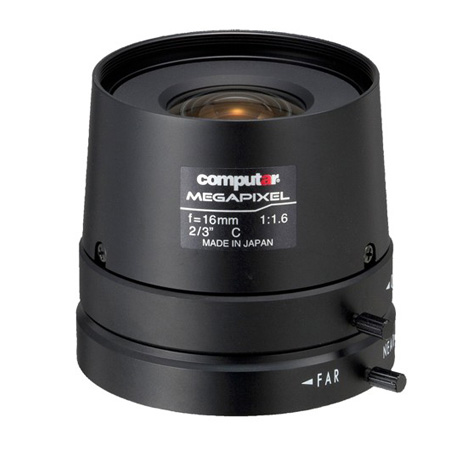

M1616FIC-MP Computar 2/3" C-Mount 16mm F/1.8 5 Megapixel Manual Iris Lens

Specifications

• Model No. - M1616FIC-MP
• Focal Length - 16mm
• Max. Aperture Ratio - 1:1.6
• Max. Image Format - 6.6mm x 8.8mm(φ11mm）
• Operation Range
  • Iris - F1.6 ‐ F16C
  • Focus - 1m ‐ lnf..
• Control
  • Iris - DC Auto Iris
  • Focus - Manual
• Angle of View
  • 2/3 type
    • D - 38.0°
    • H - 30.8°
    • V - 23.4°
  • 1/2 type
    • D - 28.1°
    • H - 22.7°
    • V - 17.1°
  • 1/3 type
    • D - 21.3°
    • H - 17.1°
    • V - 12.9°
• Effective Lens Aperture
  • Front - φ21.9mm
  • Rear - φ11.0mm
• Back Focal Length - 13.3mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M40.5 x 0.5
• Dimensions - φ47.5mm x45mm
• Weight - 139.3g
• Coil
  • Drive - 190Ω
  • Control - 1000Ω
• Operating Temperature - -10℃ ‐ +50℃

M1616FIC-MP Specifications PDF
