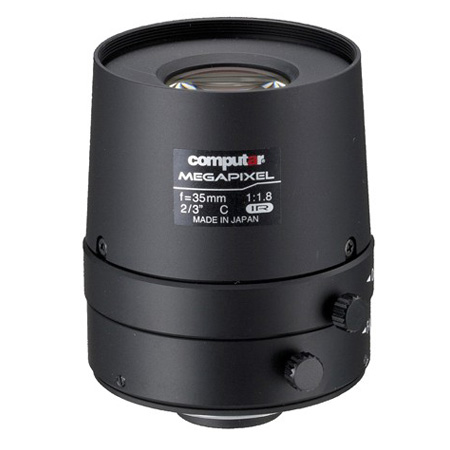

M3518FIC-MPIR Computar 2/3" C-Mount 35mm F/1.8 5 Megapixel Manual Iris Lens

Specifications

• Model No. - M3518FIC-MPIR
• Focal Length - 35mm
• Max. Aperture Ratio - 1:1.8
• Max. Image Format - 11.3mm x 6.0mm(φ12.8mm）
• Operation Range
  • Iris - F1.8 ‐ F16C
  • Focus - 1m ‐ lnf..
• Control
  • Iris - DC Auto Iris
  • Focus - Manual
• Angle of View
  • 2/3 type
    • D - 17.4°
    • H - 13.9°
    • V - 10.5°
  • 1/2 type
    • D - 12.7°
    • H - 10.2°
    • V - 7.6°
  • 1/3 type
    • D - 9.5°
    • H - 7.6°
    • V - 5.7°
• Effective Lens Aperture
  • Front - φ19.8mm
  • Rear - φ12.1mm
• Back Focal Length - 14.3mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M40.5 x 0.5
• Dimensions - φ46.5mm x 53.2mm
• Weight - 149.2g
• CMV2000 11.264 x 5.984 (φ12.75)
  • D - 20.0°
  • H - 17.8°
  • V - 9.5°
• Operating Temperature - -10℃ ‐ +50℃
