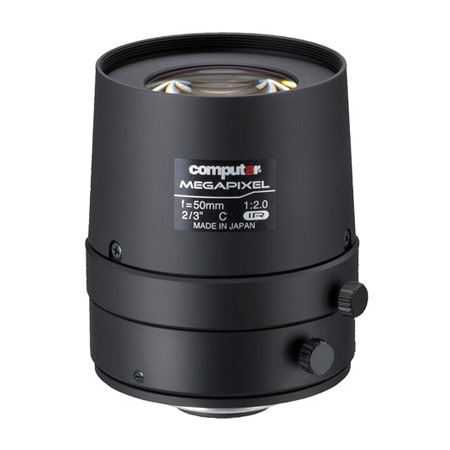

M5020FIC-MPIR Computar 2/3" C-Mount 50mm F/2.0 5 Megapixel IR-corrected Manual Iris Lens

Specifications

• Model No - M5020FIC-MPIR
• Focal Length - 50mm
• Max. Aperture Ratio - 1:2.0
• Max. Image Format - 11.3mm x 6.0mm(φ12.8mm）
• Operation Range
  • Iris - F2.0 ‐ F16C
  • Focus - 2m ‐ lnf.
• Control
  • Iris - DC Auto Iris
  • Focus - Manual
• Angle of View
  • 2/3 type
    • D - 12.2°
    • H - 9.8°
    • V - 7.3°
  • 1/2 type
    • D - 8.9°
    • H - 7.1°
    • V - 5.3°
  • 1/3 type
    • D - 6.7°
    • H - 5.3°
    • V - 4.0°
• Effective Lens Aperture
  • Front - φ25.2mm
  • Rear - φ11.0mm
• Back Focal Length - 14.8mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M40.5 x 0.5
• Dimensions - φ46.5mm x 53.9mm
• Weight - 155.0 g
• CMV2000 11.264 x 5.984 (φ12.75)
  • D - 14.1°
  • H - 12.5°
  • V - 6.7°
• Operating Temperature - -10℃ ‐ +50℃

M5020FIC-MPIR Specifications PDF
