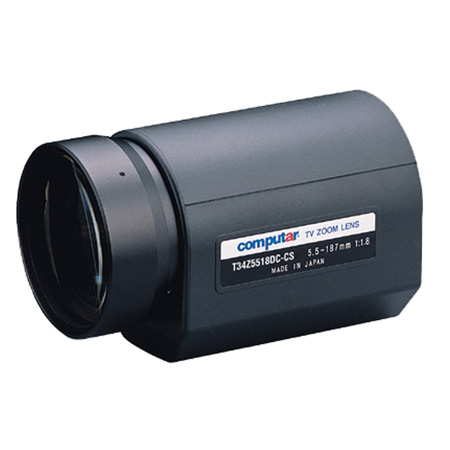

T34Z5518DC Computar 1/3" CS-Mount 5.5-187mm Motorized Zoom F/1.8 Mini Connector Video DC Auto Iris Lens

Computar Motorized Zoom Lenses provide remote control of focal length, iris and focus through the use a lens controller, for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance in parking lots, highways, etc.

Specifications

• Model No. - T34Z5518DC-CS
• Focal Length - 5.5mm - 187mm
• Max. Aperture Ratio - 01:01.8
• Max. Image Format - 4.8mm x 3.6mm(φ6mm)
• Operation Range
  • Iris - F1.8 - F560C
  • Focus - 1.5m - Inf.
  • Zoom - 5.5mm - 187mm
• Control
  • Iris - DC Auto Iris
  • Focus - Motorized
  • Zoom - Motorized
• Object Dimension at M.O.D
  • 5.5mm - 129.2cm x 95.2cm
  • 187mm - 4.1cm x 3.1cm
• Angle of View
  • 1/3 type
    • D - 57.5° - 1.92°
    • H - 46.6° - 1.55°
    • V - 35.2° - 1.17°
  • 1/4 type
    • D - 43.8° - 1.45°
    • H - 35.2° - 1.17°
    • V - 26.5° - 0.88°
• Supply Voltage
  • Focus - DC8V
  • Zoom - DC8V
• Current
  • Focus - 40mA or less
  • Zoom - 25mA or less
• Response Time
  • Focus - Approx. 3.5 sec.
  • Zoom - Approx. 3.5 sec.
• Coil
  • Drive - 190Ω
  • Control - 1000Ω
• Operating Temperature - +10°C - 50°C
• Effective Lens Aperture
  • Front - φ70.0mm
  • Rear - φ9.1mm
• Back Focal Length - 12.7mm
• Flange Back Length - 12.5mm
• Mount - CS-Mount
• Filter Size - M77 P=0.75mm
• Tripod Screw - 1/4 - 20UNC
• Dimensions - W82mm x H97.4mm x D160mm
• Weight - 1110g
