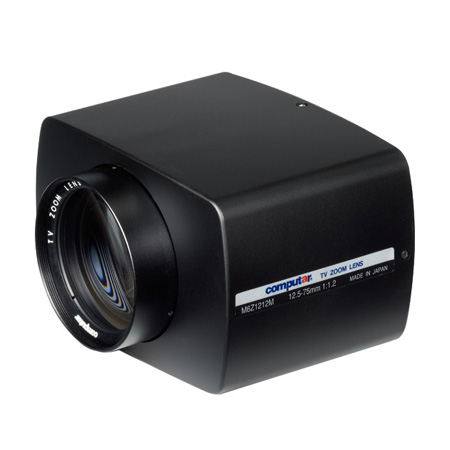

M6Z1212M Computar 2/3" C-Mount 12.5-75mm Motorized Zoom F/1.2 3 Motors

Specifications

• Model No. - M6Z1212M
• Focal Length - 12.5mm - 75mm
• Max. Aperture Ratio - 01:01.2
• Max. Image Format - 8.8mm x 6.6mm(φ11mm)
• Operation Range
  • Iris - F1.2 - F16C
  • Focus - 1.0m - Inf.
  • Zoom - 12.5mm - 75mm
• Control
  • Iris - Motorized
  • Focus - Motorized
  • Zoom - Motorized
• Object Dimension at M.O.D
  • 12.5mm - 68.8cm x 51.6cm 75mm - 12.1cm x 9cm
• Angle of View
  • 2/3 type
    • D - 46.9° - 8.3°
    • H - 38.3° - 6.7°
    • V - 29.2° - 5.1°
  • 1/2 type
    • D - 35.0° - 6.2°
    • H - 29.2° - 5.1°
    • V - 21.3° - 3.8°
  • 1/3 type
    • D - 26.5° - 4.7°
    • H - 21.3° - 3.8°
    • V - 16.0° - 2.8°
• Supply Voltage
  • Iris - DC8V
  • Focus - DC8V
  • Zoom - DC8V
• Current
  • Iris - 30mA or less
  • Focus - 30mA or less
  • Zoom - 25mA or less
• Response Time
  • Iris - Approx. 3 sec.
  • Focus - Approx. 5 sec.
  • Zoom - Approx. 4 sec.
• Operating Temperature - +10°C - -50°
• Effective Lens Aperture
  • Front - φ46.5mm
  • Rear - φ15.6mm
• Back Focal Length - 15.4mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M55 P=0.75mm
• Tripod Screw - 1/4 - 20UNC
• Dimensions - W108mm x H71mm x D114.5mm
• Weight - 750g
