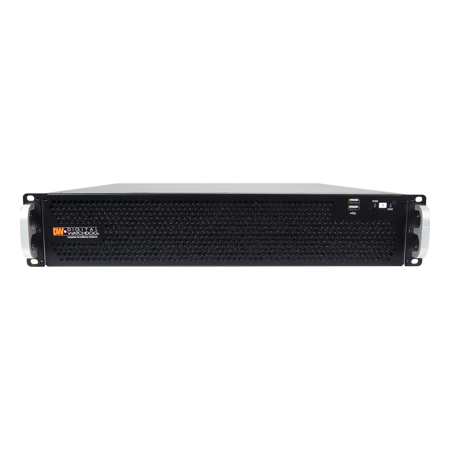

[DISCONTINUED] DW-BJPR2U20T-LX Digital Watchdog 2U Rack NVR 600Mbps Max Throughput - 20TB w/ 1 x 4 Channel License - Linux Ubuntu


  • Supports All ONVIF Conformant IP Cameras
  • Storage Options: 18 -30TB Internal Storage
  • Record up to 128 IP Cameras with Total Throughput up to 600Mbps
  • Data Redundancy RAID-5
  • True HD and DVI Local Monitoring Outputs Ports
  • Dual Network Ports
  • USB Interface
  • Linux Ubuntu on a separate SSD
More details...
Ordering Notes: Dealers Only
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Blackjack P-RACK NVRs powered by DW Spectrum IPVMS can record and manage up to 128 2.1MP 1080p IP cameras at up to 30fps, with up to 600 Mbps throughput. Hardware options include RAID 5 hard drive configuration, Intel i7 Processor and 16GB Memory. Standard features include Linux Ubuntu OS on an SSD HDD, scheduled auto reboot for hardware performance, and cross platform connectivity for Windows and Mac client software, allowing you to monitor and connect to your system from virtually anywhere, 2x NIC cards, DVI and true HD output. DW Spectrum IPVMS, offering you great features such as Automatic Camera Detection, Fully Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings. Blackjack P-RACK NVRs are ONVIF conformant, can be configured with 6-36TB HDD for true enterprise scalability and come with our unbeatable 5 Year Limited Warranty.


  • MODEL - Blackjack P-Rack 2U w/RAID
  • Maximum IP Cameras - 128
  • Included IP Licenses - 4
  • Form Factor - Rack Mount
  • Operating System
    • OS on SSD
      • Linux Ubuntu 14.04
      • 64GB SSD
      • Option: DW-SSD64 – Spare SSD for Mirroring the OS
  • CPU - Intel i7 Processor
  • Memory - 16GB
  • NIC - 2x Gigabit Ethernet (RJ45) ,Option: DW-R4NIC - Upgrade QUAD GB NIC Card
  • System
    • “Max Video Storage Rate (Mbps)” - 600 Mbps
  • Storage
    • Maximum Hard Drives - 6 x SATA HDD
    • Maximum Storage - 36TB RAID 5
  • Video-Out
    • Outputs - True HD Output or VGA or DVI
    • Video Card - GeForce 210 512MB Option: DW-RV4H - 4 head HD Video Card*
  • Resolution - HD 1080p
  • Pre-Loaded VMS Software - DW Spectrum
  • Unlimited Remote Clients - Cross Platform - Windows, Linux and Mac
  • Mobile Apps - iOS and Andriod
  • DW Spectrum IP Video Management Software
    • Industries most powerful VMS engine - with Intelleigent HD dual stream management
    • “Automatic camera discovery - auto-detect and connect to 1,000s of supported IP cameras at every resolution ONVIF Profile S conformant “
    • Alarm Input / Relay Output and Audio recording supported
  • Keyboard & Mouse - Included
  • Railkit - Included
  • Power - 400W
  • Operating Temperature and Humidity - 5~40 °C / 20~90% RH
  • Dimension (WxDxH) (inches) - 17.32" x 26" x 19 "
  • Warranty - 5 Year Limited

DW-BJPR2U20T-LX Specifications PDF
