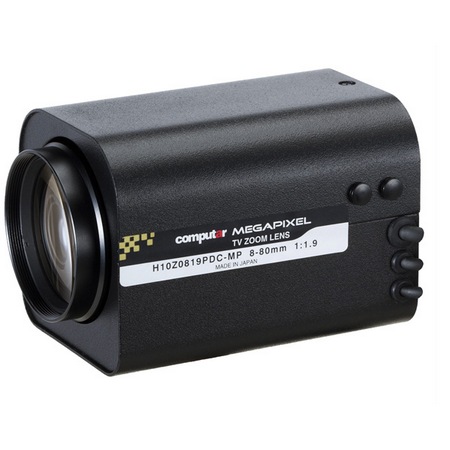

H10Z0819PDC-MP Computar 1/2" C-Mount 8-80mm F/1.8 1.3 Megapixel Preset Auto Iris Zoom Lens

Specifications

• Model No. - H10Z0819PDC-MP
• Focal Length - 8mm φ 80mm
• Max. Aperture Ratio - 01:01.9
• Max. Image Format - 6.4mm x 4.8mm(φ8mm)
• Operation Range
  • Iris - F1.9 - F1000 (W/ND Filter)
  • Focus - 2.5m - inf.
  • Zoom - 8mm - 80mm
• Control
  • Iris - DC Auto Iris
  • Focus - Motorized
  • Zoom - Motorized
• Object Dimension at M.O.D.
  • 8mm - 1448 x 1951 mm
  • 80mm - 137 x 187 mm
• Angle of View
  • 1/2 type
    • D - 54.10°- 5.05°
    • H - 44.81°- 4.45°
    • V - 34.62°- 3.38°
  • 1/3 type
    • D - 42.26°- 4.17°
    • H - 34.62°- 3.38°
    • V - 26.39°- 2.55°
  • 1/4 type
    • D - 32.57°- 3.17°
    • H - 26.39°- 2.55°
    • V - 20.00°- 1.92°
• Supply Voltage
  • Focus - DC6-12V
  • Zoom - DC6-12V
• Current
  • Focus - 60mA or less
  • Zoom - 60mA or less
• Response Time
  • Focus - Approx. 6.5 sec. (when 8V input)
  • Zoom - Approx. 7 sec. (when 8V input)
• Preset Potentiometer
  • Focus - 10kΩVR
  • Zoom - 10kΩVR
• Coil
  • Drive - 190Ω
  • Control - 1150Ω
• Effective Lens Aperture
  • Front - φ40.0mm
  • Rear - φ13.2mm
• Back Focal Length - 16.53mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M46 P=0.75mm
• Tripod Screw - 1/4 -20UNC
• Dimensions - W65mm x H67mm x D104.5mm
• Weight - 590g
• Operating Temperature - -10° - +50°

H10Z0819PDC-MP Specification PDF
