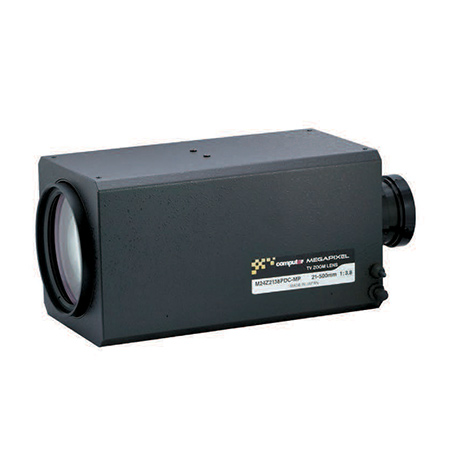

M24Z2138PDC-MP Computar 2/3" C Mount 21-500mm Motorized F/3.8 2MP DC Auto Iris Lens

Specifications

• Model No. - M24Z2138PDC-MP
• Focal Length - 21mm ‐ 500mm
• Max. Aperture Ratio - 1:3.8
• Max. Image Circle - φ11mm
• Operation Range
  • Iris - F3.8 ‐ F500C
  • Focus - 5m ‐ lnf.
  • Zoom - 21mm ‐ 500mm
• Control
  • Iris - DC Auto Iris
  • Focus - Motorized
  • Zoom - Motorized
• Angle of View
  • 1/2 type
    • D - 29.4°‐ 1.3°
    • H - 23.5°‐ 1.0°
    • V - 17.6°‐ 0.8°
  • 1/8 type
    • D - 23.6°‐ 1.0°
    • H - 18.9°‐ 0.8°
    • V - 14.2°‐ 0.6°
  • 1/2 type
    • D - 21.4°‐ 0.9°
    • H - 17.1°‐ 0.8°
    • V - 12.8°‐ 0.6°
• Supply Voltage
  • Focus - DC6V
  • Zoom - DC6V
• Current
  • Focus - 90mA or less
  • Zoom - 90mA or less
• Response Time
  • Focus - Approx. 6.5 sec.
  • Zoom - Approx. 6.5 sec.
• Preset Potentiometer
  • Focus - 5kΩVR
  • Zoom - 5kΩVR
• Coil
  • Drive - 190Ω
  • Control - 1000Ω
• Effective Lens Aperture
  • Front - φ66mm
  • Rear - φ14.5mm
• Back Focal Length - 21.3mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M77 P=1mm
• Tripod Screw - 1/4 -20UNC
• Dimensions - W101mm x H102.4mm x D237.6mm
• Weight - 2240g
• Operating Temperature - -10° - +50°

M24Z2138PDC-MP Specification PDF
