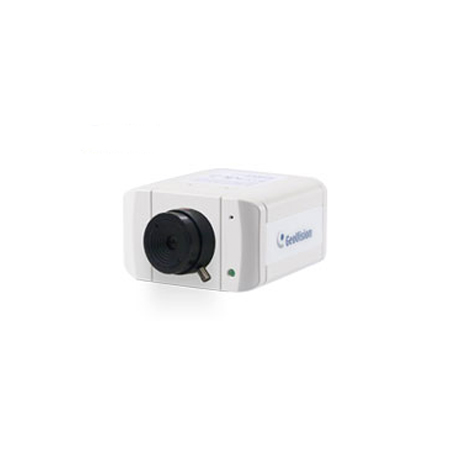

GV-BX5700-8F Geovision 2.95mm 30 FPS @ 2592 x 1944 Indoor Day/Night WDR Box IP Security Camera 12VDC/PoE

Specifications

Camera

• Image Sensor - 1/1.8" progressive scan low lux CMOS
• Picture Elements - 2592 (H) x 1944 (V)
• Minimum Illumination - Color 0.04 Lux, B/W 0.03 Lux, IR ON 0 Lux
• Shutter Speed - Automatic, Manual (1/5 ~ 1/6000 sec.)
• White Balance - Automatic, Manual (2800K ~ 8500K)
• Gain Control - Automatic
• S/N Ratio - 50 dB
• WDR - Yes
• Dynamic Range - 72 dB

Lens

• Megapixel - Yes
• Day/Night - Yes (with removable IR‐cut filter)
• Lens Type - Fixed
• Focal Length - 2.95 mm
• Maximum Aperture - F/2.0
• Mount - CS Mount
• Image Format - 1/1.8"
• Horizontal FOV - 90° ~ 40°
• Operation - Manual (w/lock), Zoom Fixed, Iris N/A
• Torque (Focus/Zoom screws) - 0.049 N.m

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Stream - Stream 1 from H.265 or H.264 Stream 2 from H.265, H.264 or MJPEG
• Frame Rate - 50Hz: 25 fps at 2592 x 1944, 25 fps at 2592 x 1520 60Hz: 30 fps at 2592 x 1944, 30 fps at 2592 x 1520 * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes)
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Denoise, Metering
• Audio Compression - G.711
• Audio Support - Two‐Way Audio
• Sensor Input - 1 input (dry contact)
• Alarm Output - 1 digital output (200 mA 5V DC)

Video Resolution

• Main Stream - 4:3 2592 x 1944 (default), 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, , 16:9 2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360, 5:4 1280 x 1024, 640 x 512
• Sub Stream - 4:3 1024 x 768, 640 x 480 (default), 320 x 240, 16:9 1280 x 720, 640 x 360, 448 x 256, 5:4 1280 x 1024, 640 x 512, 320 x 256

Network

• Interface - 10/100 Ethernet
• Protocol - DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA
• Wireless LAN - IEEE 802.11 b/g/n
• Antenna Type - External
• Security - WEP, WPA-PSK(TKIP), WPA-PSK(AES), WPA2-PSK(TKIP), WPA2-PSK(AES)

Mechanical

• Temperature Detector - Yes
• Power - 2‐pin terminal block, PoE
• Ethernet - Ethernet (10/100 Base‐T), RJ‐45 cable
• Audio - 1 In (Using the built‐in microphone or externally connecting a microphone) 1 Out (Stereo phone jack, 3.5 mm / 0.14 in)
• Digital I/O - 3‐pin terminal block, pitch 2.5 mm / 0.1 in
• Auto Iris - Yes (with varifocal lens)
• Local Storage - Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) *UHS-II card type is not supported.
• TV‐Out - BNC connector (640 x 480 resolution)

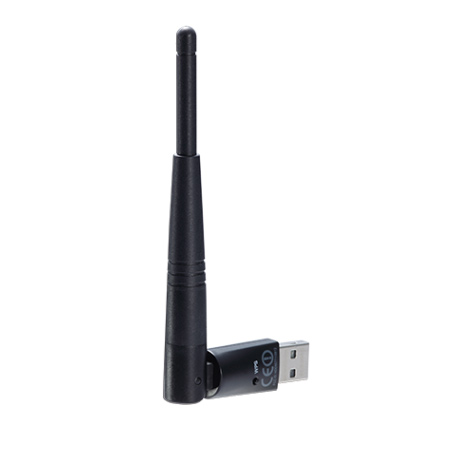

• Mini USB - GV‐WiFi Adapter or USB hard drive
• LED Indicator - 2 LEDs: Power, Status

General

• Environment Temperature - 32°F ~ 122°F
• Humidity - 10% to 90% (no condensation)
• Power Source - 12V DC / PoE (IEEE 802.3af)
• Max. Power Consumption - 12V DC, 4.37W
• Dimensions - 2.97 x 2.95 x 2.13 in (without lens)
• Weight - 0.72 lb
• Regulatory - CE, FCC, RCM, LVD, RoHS compliant

Power over Ethernet

• PoE Standard - PoE (IEEE 802.3af Class 3 Power over Ethernet / PD)
• PoE Power Supply Type - End‐Span, Mid-Span
• PoE Power Output - Per Port 48V DC, 350 mA, Max. 15.4 watts

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay, Digital PTZ
• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

• Network Storage GV-Backup Center, GV-VMS
• Smart Device Access - GV‐Eye for iOS and Android
• Live Viewing - Browser (IE, Chrome, Firefox, Safari), Mobile app
• CMS Server support - GV-Control Center, GV-Center V2, GV-Vital Sign Monitor

GV-BX5700-8F Specifications PDF
