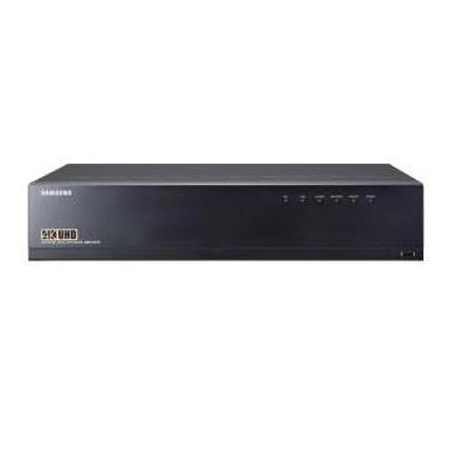

XRN-2010-36TB Hanwha Techwin 32 Channel at 4K (2160p) NVR 256Mbps Max Throughput - 36TB

The XRN-2010 is a 4K network video recorder, that supports: up to 32 channels, H.265/H.264/MJPEG, ARB & Failover (N+1), 8 fixed internal SATA HDDs (with a maximum internal storage capacity of 48TB), e-SATA/iSCSI storage, WiseStream compression technology, dual monitor video out, maximum camera resolution of 12MP recording/display and fisheye dewarping on WEB and CMS.

Specifications

Display

• Video
  • Inputs - Up to 32CH
  • Resolution - CIF ~ 12MP
  • Protocols - Samsung, ONVIF
• Live
  • Local Display - 1x HDMI, 1x VGA dual monitor
  • Multi Screen Display - [Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, [Web] 1 / 4 / 9 / 16 / 25 / 36 / Sequence
  • Performance - [Local monitor] 12MP (30fps), 8.3MP (120fps), 1080p (480fps), 720P (960fps), D1 (960fps)

Performance

• Operating System
  • Embedded - Linux
• Recording
  • Compression - H.265, H.264, MJPEG, WiseStream (H.265, H.264)
  • Recording Bandwidth - Max. 256Mbps
  • Resolution - CIF ~ 12MP
  • Mode - Normal, Schedule (Continuous / Event), Event (Pre / Post)
  • Event Trigger - Alarm input, Video loss, Camera event (Sensor, MD, Video analytics)
  • Event Action - E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
• Search & Playback
  • Playback Bandwidth - 32Mbps (16CH simultaneously)
  • Performance - Max. 4 users (Local 1, Remote 3)
  • Mode - Date & Time (Calendar) / Event log list / Text search
  • Simultaneous Playback - Max. 16CH (Local monitor, CMS)
  • Resolution - CIF ~ 12MP
  • Fish-eye Dewarping - WEB / CMS
  • Playback Control - Fast/Slow Forward/Backward, Move one step up/down
• Storage
  • Built-in / Internal HDD - 0TB ~ 6TB / 8 (Max. 48TB)
  • External - iSCSI storage (Max. 384TB), Promise VessRaid R2600
• Backup
  • File Backup (Via Web) - BU/Exe (GUI), JPG/AVI (Network)
  • Function - Multi channel (Up to 16CH) play, Date-time/title display
• Sensor
  • Input / Output - 8 / 4 (NO/NC selectable)
• Audio
  • Input - 32CH (Network)
  • Compression - G.711, G.726, AAC (16/48KHz)
  • Audio Communication - 2-way

Network

• Interface - RJ-45, Gigabit ethernet x 2
• Protocol Support - TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
• DDNS - iPOLiS DDNS
• Transmission Bandwidth - 512Mbps (iSCSI off ), 256Mbps (iSCSI on)
• Max. Remote Users - Search 3 / Live unicast 10 / Live multicast 20
• IP - IPv4 / IPv6
• Security - IP address filtering, User access log, 802.1x authentication, Encryption
• Language - English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
• OS - Window 7, 8, 10, Mac OS X (10.8 or above)
• Web Browser - MS IE, Google Chrome, Mac Safari, Firefox
• Viewer Software
  • Type - SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
  • CMS Support - SDK / CGI (SUNAPI)

Functions

• Camera Setup
  • Register - Auto, Manual
  • Setup Items - IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness/ Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye dewarping mode, Hallway view setup, Camera webpage
• PTZ
  • Control / Preset - Via GUI, Webviewer, SPC-2000 / 255 presets
• Smart Phone
  • OS - Android, iOS
  • Protocol Support - RTP, RTSP, HTTP, CGI (SUNAPI)
  • Control - Live (16CH) : Multi-profile support, Playback (1CH)
  • Max. Remote Users - Search 3 / Live unicast 10
  • Failover / ARB - N + 1 / Yes
  • System Control - Mouse, Web, SPC-2000 (Controller)

Indicator / Interface

• Front
  • Indicator - LED (Status indicator) : 6ea HDD action 1, Alarm 1, Power 1, Record 1, Backup 1, Network1
• Connections
  • HDMI - Main : 1ea (Both support Live / PB / Setup) Support up to 4K (3840 x 2160, Single monitor mode)
  • VGA - Sub : 1ea (Support live screen up to 16 div. mode)
  • Audio - Out 1ea (RCA, Line)
  • Ethernet - RJ-45 2ea (LAN/WAN, 1Gbps)
  • Alarm - In 8ea (Terminal block), Alarm reset 1ea Out 4ea (Terminal block) - Relay out1(NO/NC/COM) - Relay out 2 ~ 4 (NO/COM)
  • USB - 2ea (Front 1, Rear 1)
  • Storage - 1 e-SATA
  • Serial / Reset - RS-232C / Switch 1ea
  • Power Cord - 1ea AC Inlet

System

• Log
  • Log List - Max. 20,000 (System log, Event log each)

Electrical

• Input Voltage / Current - 100 ~ 240V AC ±10%, 50/60Hz / 4 ~ 1.5A
• Power Consumption - Max. 99W (338BTU, 6TB HDD x 8ea)

Environmental

• Operating Temperature - +0°C ~ +40°C (+32°F ~ +104°F)
• Operating Humidity - 20% ~ 85% RH

Mechanical

• Color / Material - Black / Metal
• Dimension (WxHxD) - 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U)
• Weight - 4.86Kg (10.71 lb) (without HDD)
