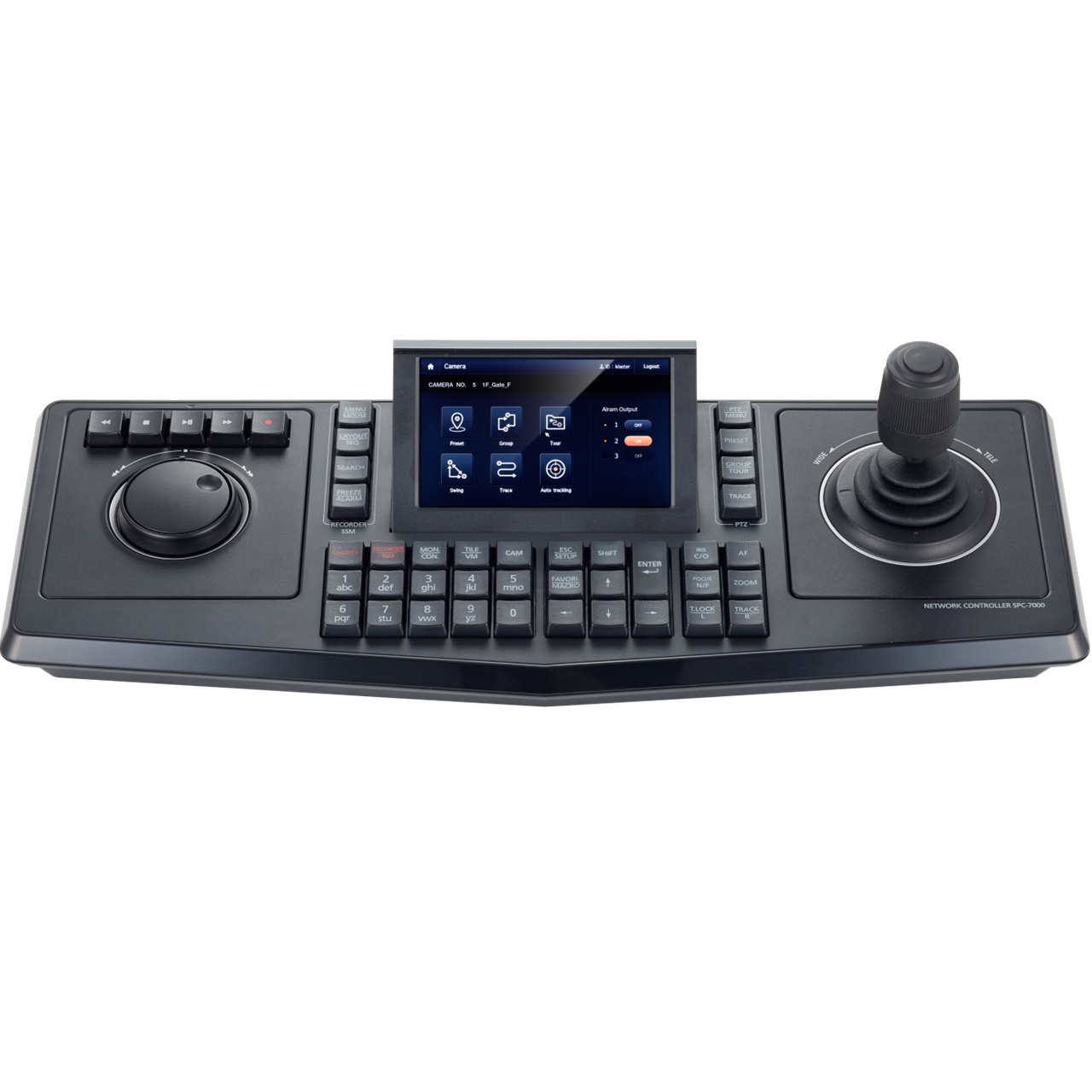

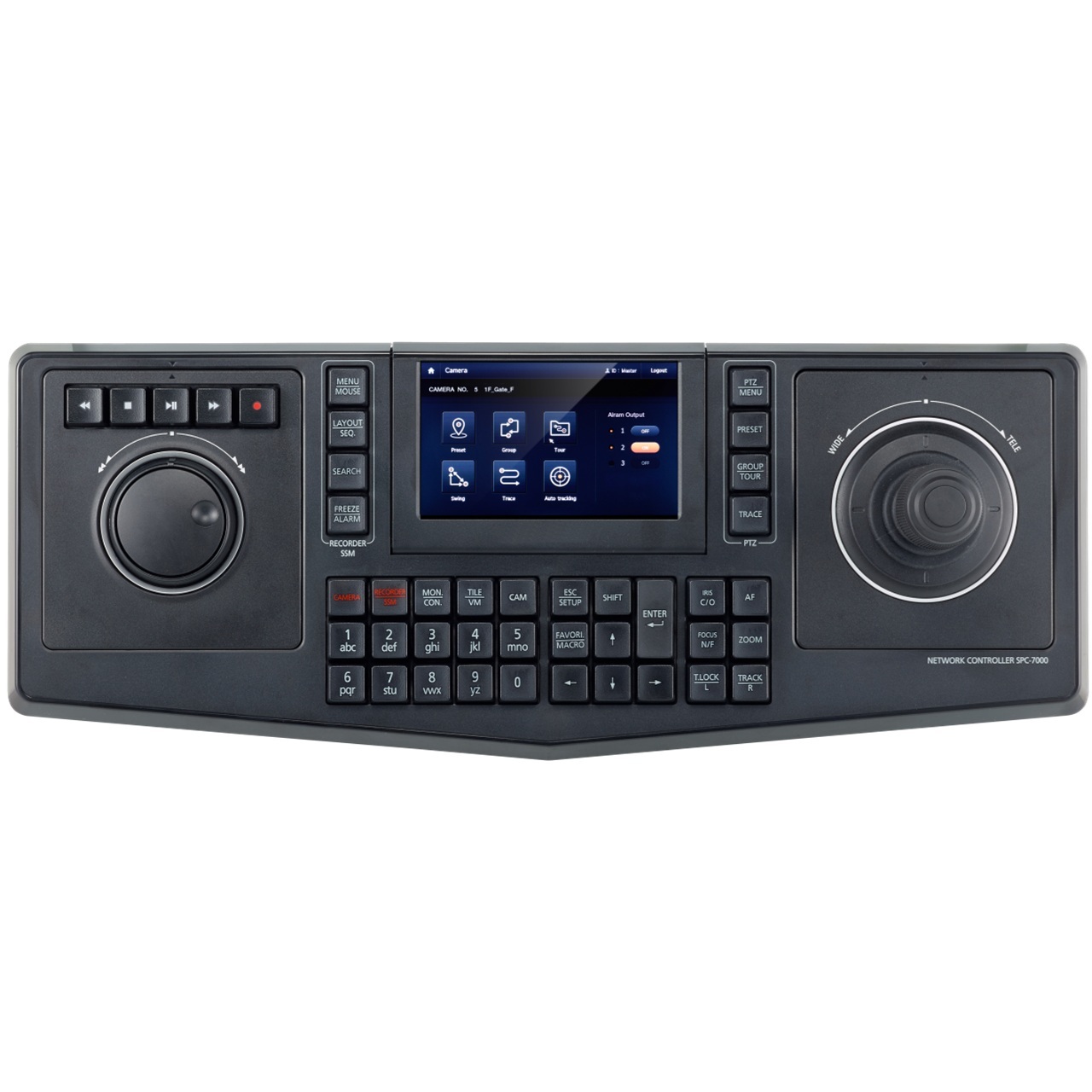

SPC-7000 Hanwha Vision IP System Keyboard Controller Touch Screen TFT LCD Interchangeable 3D Joystick & Jog Shuttle for Left or Right Handed Users

Specifications

Communication

• Control Equipment - Network Camera / SSM / Analog Camera / DVR
• Interface - Ethernet (Network camera), USB (SSM) 1ea, USB 1ea (Upgrade, Config import/export, Image snapshot), RS-485/422 (Analog Camera ,DVR) 1ea, RS-485/422 (Cascade among controllers) 1ea

Interface Protocol

• Ethernet - SUNAPI
• USB - Dedicated
• RS-485/422 - SRD, Pelco-D/P, Panasonic, Vicon, AD, Honeywell, Bosch, Elmo, GE, Samsung-T/E
• Units to Control - Network Camera : Max. 255ea, SSM : 1ea, Analog Camera / DVR : Max. 255ea
• Baud Rate (RS-485/422) - 2400 ~ 57,600bps
• Network Protocol - TCP, HTTP, DHCP, IPv4

Operational

• LCD Display - 5" TFT LCD
• Joystick - 3 Axis twist zoom
• Jog Shuttle - SSM / DVR playback control

Control

• Camera - Pan / Tilt / Zoom, Focus, Auto focus, Preset, Group, Tour, Swing, Trace, Auto tracking, Alarm off/on, Freeze
• Video Wall - Camera-tile (Channel) mapping, Layout (Display division mode) change
• Recorder - Recording / Playback control, Alarm off, Menu
• Device Management - Built-in device registration / Modification on LCD
• User Management - Admin + 9 operators
• Import / Export - Configuration import / export

Miscellaneous

• Video Snapshot - Still image (Network camera) export using USB memory
• Input - Alphabet input (Virtual keyboard)
• Language - English, Spanish, French, Italian, German, Turkish, Polish, Russian, Korean, Chinese, Japanese

Environmental

• Operating Temperature - 0°C ~ 40°C (+32°F ~ +104°F)
• Operating humidity - 20% ~ 85%

Electrical

• Input Voltage - 12V DC
• Power Consumption - Max. 6.4W

Mechanical

• Dimensions (WxhxD) - 459.1x59.1x177.9mm (18.07"x2.33"x 7")
• Weight - 1.5Kg (3.3 lb)
