[DISCONTINUED] WES3HTG-AX-AA KBC Networks 5 GHz 5dBi Omni-Directional Gigabit Point-to-Point and Point-to-Multipoint Wireless HOST - 650 Mbps Throughput

Specifications

Standards

• IEEE Standard - IEEE 802.3 10BASE-TX IEEE 802.3u 100BASE-TX IEEE 802.3x Full Duplex IEEE 802.11ac 5GHz IEEE 802.11h ETSI DFS & TPC IEEE 802.11n MIMO

Radio

• Frequency USA & Canada (FCC) U-NII3 - 5180 ~ 5240MHz, 5745 ~ 5825 MHz
• Frequency Operation - Auto-select User static selectable Dynamic Frequency Selection (ETSI DFS)
• Power Output - 30dBm max(1) Transmit Power Control (ETSI TPC)
• Channel Bandwidth Spectrum - Selectable 20, 40 or 80MHz

Antenna Options

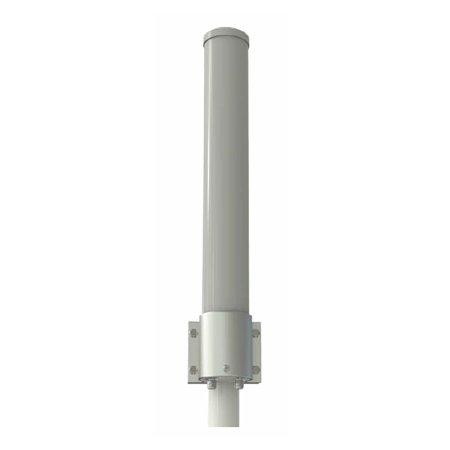

• 5dBi - Omni-directional
• 9dBi - Directional integrated patch Dual polarization Beamwidth: Azimuth:Horizontal 65°, vert 65° Elevation: Horizontal 33°, vert 33°
• 17dBi - Directional integrated patch Dual polarization Beamwidth: Azimuth:Horizontal 30°, vert 33° Elevation: Horizontal 17°, vert 17°

System

• Data throughput(2) - HT40 300Mbps , HT80 650Mbps
• Latency - <10mS
• Encryption - TKIP / AES encryption up to 128 bit

Power Method

• PoE version - IEEE 802.3 af (PD) / Included PIM
• PoE cable spec - 100m on 24AWG Cat5/5e/6/6e/7

Mechanical (unit)

• Casing - IP66 protection
• Dimensions (L x W x D) - 11.5" x 5.75" x 3.5"
• Weight (17dBi unit) - 1.8 lb
• Installation - Wall-mount or pole-mount

Environmental

• Operating Temperature - -40°~ +165°F
• Storage Temperature - -40°~ +194°F
• Operating Humidity - 5 to 95% non-condensing

Connectors

• 10/100/1000 Electrical - 1 x RJ45

Approvals

• FCC Part 15 Subpart C - Class B
• CE - Class B
• EN 55024 (IEC61000-4-2,3,4,5,6,8,11) - Electromagnetic Immunity
• EN 55022 (CISPR 22) - Electromagnetic Interference (Conduction & Radiation)
• EN 60 950: 1992+A1: 1993+A2: - Low Voltage Directive
• 1995+A4: 1996+A1: 1997
• EN 300 328-2
• EN 300 826
• EN 301 489-17
• EN 301 893
• R&TT Directive (1999/5/EC)
