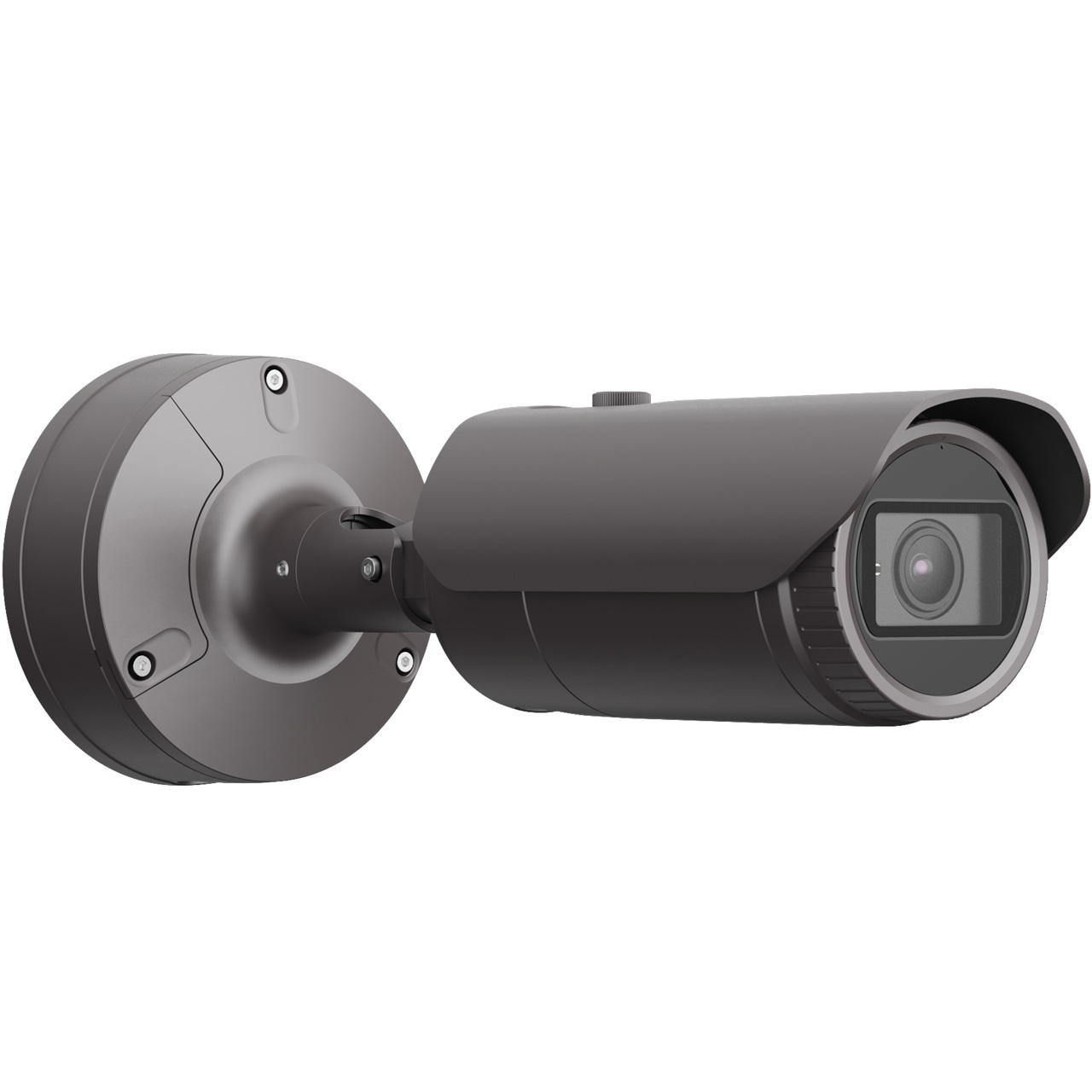

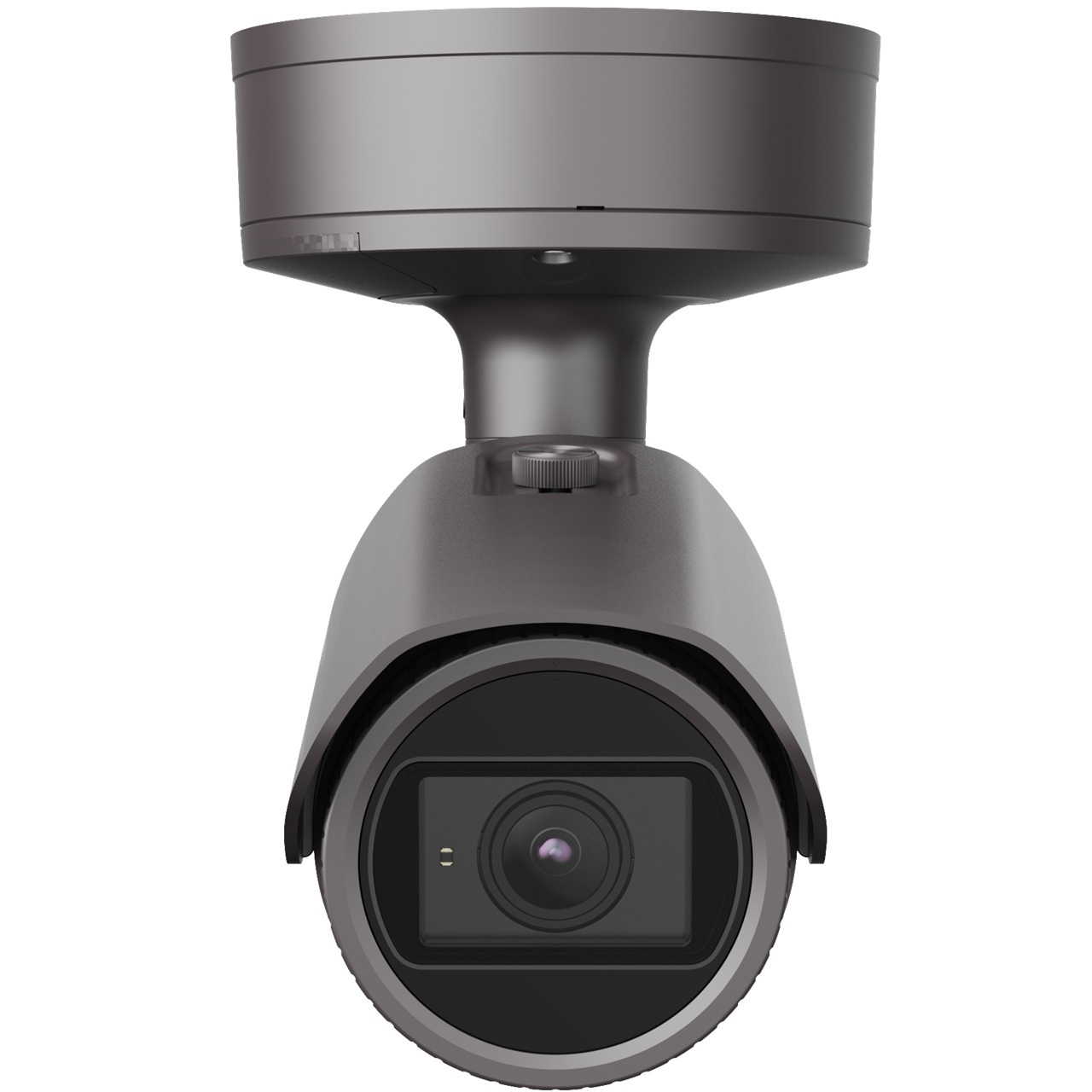

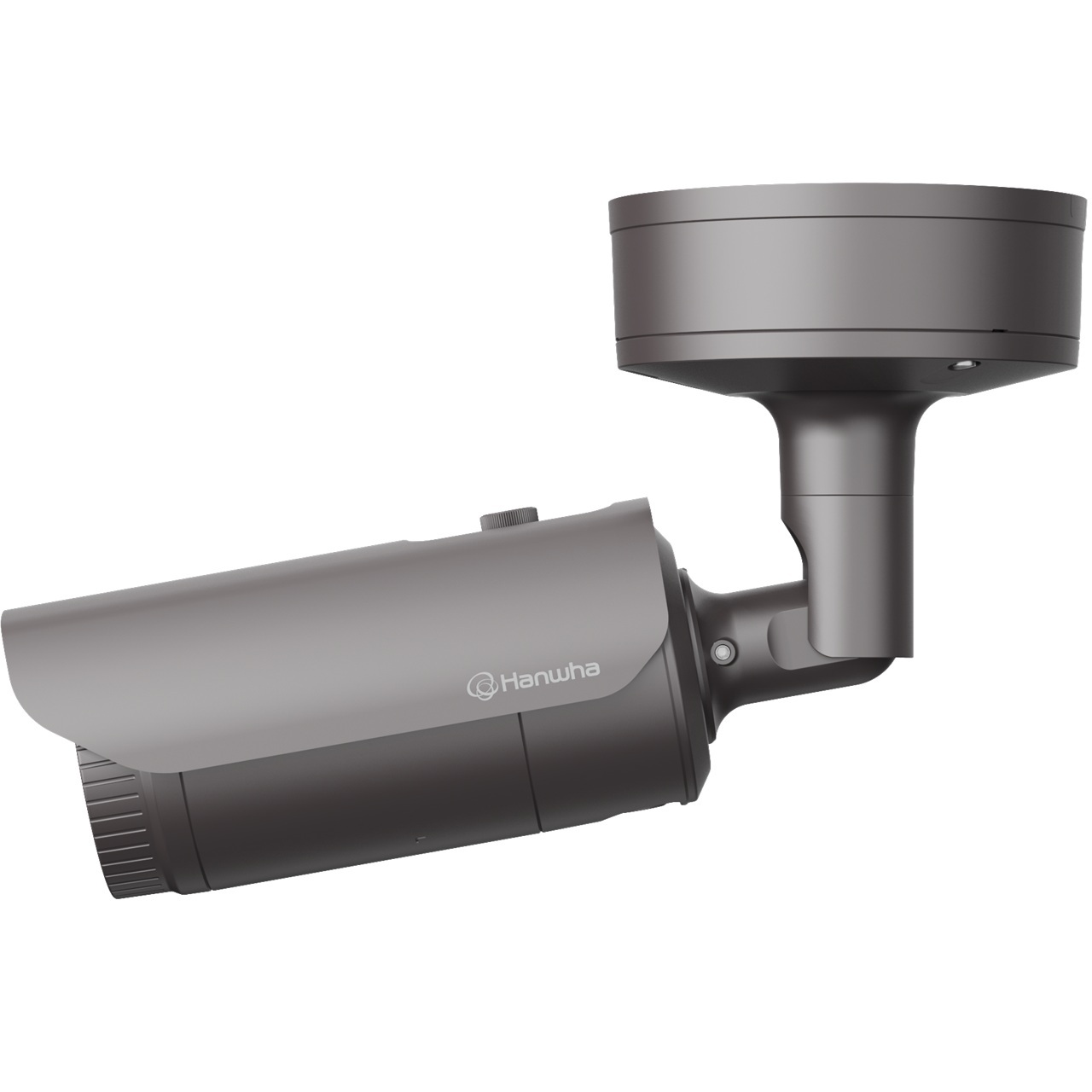

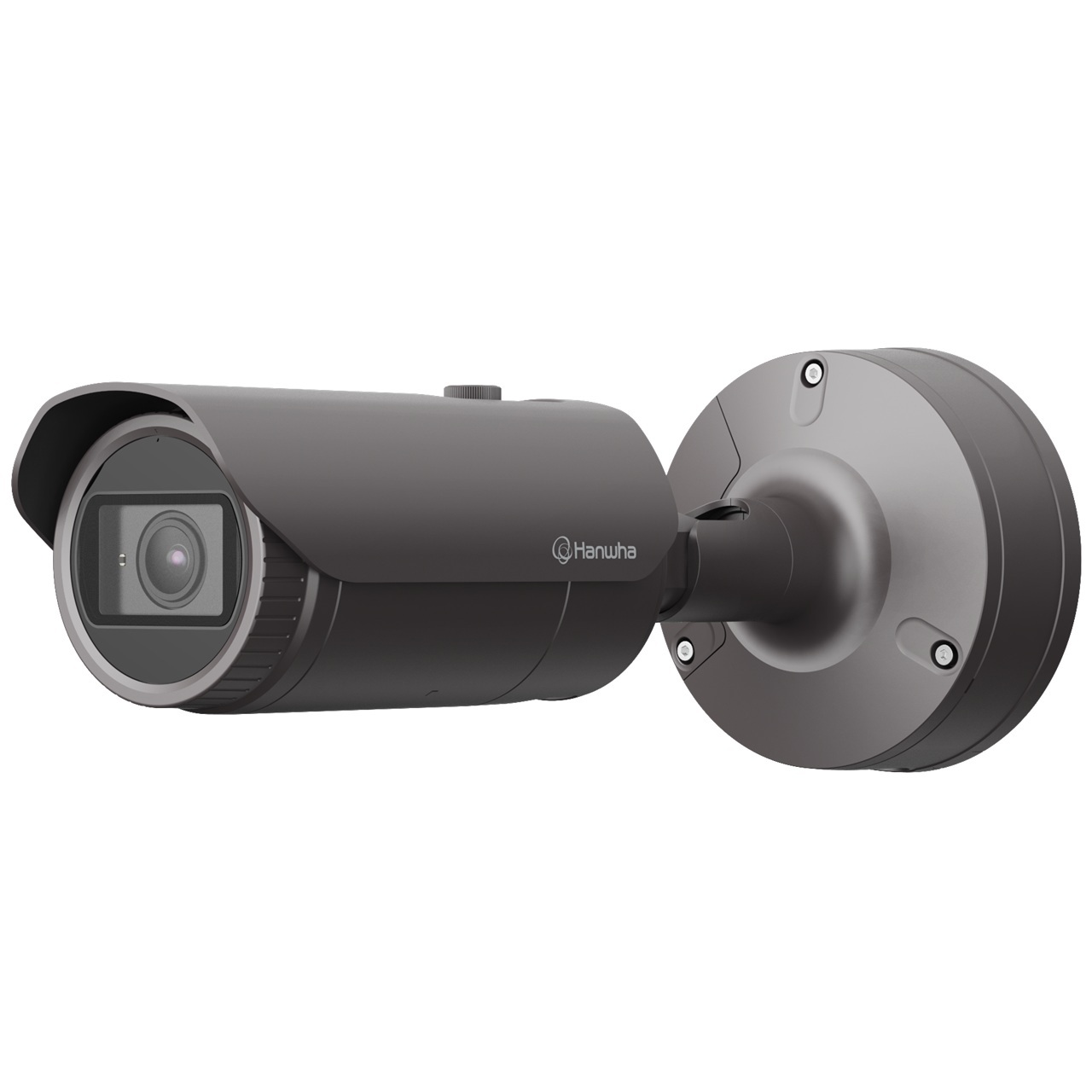

XNO-8080R Hanwha Vision X Series 3.7-9.4mm Motorized 30FPS @ 5MP Outdoor IR Day/Night WDR Bullet IP Security Camera 12VDC/24VAC/POE

Specifications

Video

• Imaging Device - 1/1.8” CMOS
• Resolution - 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264 : Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.07Lux(F1.3, 1/30sec, 30IRE) BW: 0.007Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation USB: Micro USB Type B, 1280x720, for installation

Lens

• Focal Length (Zoom Ratio) - 3.7~9.4mm(2.5x) motorized varifocal
• Max. Aperture Ratio - F1.2
• Angular Field of View - H: 100.2°(Wide)~38.7°(Tele) V: 72.2°(Wide)~29.0°(Tele) D: 132.0°(Wide)~48.6°(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus
• Lens Type - DC auto iris, P iris(IR corrected)

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HCL, WDR, DWDR,SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8 Point Polygonal zones
• Privacy Masking - 32ea, Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Digital PTZ - Support
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
• Alarm I/O - Input 1ea / Output 1ea
• Alarm Triggers - Analytics, Network disconnection, Alarm input
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover
• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms
• IR Viewable Length - 50m(164.04ft)

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
• Edge Storage - Micro SD/SDHC/SDXC 2slot 512GB
• Memory - 1024MB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
• Certification - IP67/IP66/NEMA4X, IK10
• Input Voltage - PoE(IEEE802.3af, Class3), 12VDC, 24VAC
• Power Consumption - PoE: Max 12.95W 12VDC: Max 12.5W 24VAC: Max 14.5W

Mechanical

• Color / Material - Dark grey / Aluminum
• Product Dimensions / Weight - Ø91x368.6mm(Ø6.3x4.67"), 2180g(4.8 lb)
