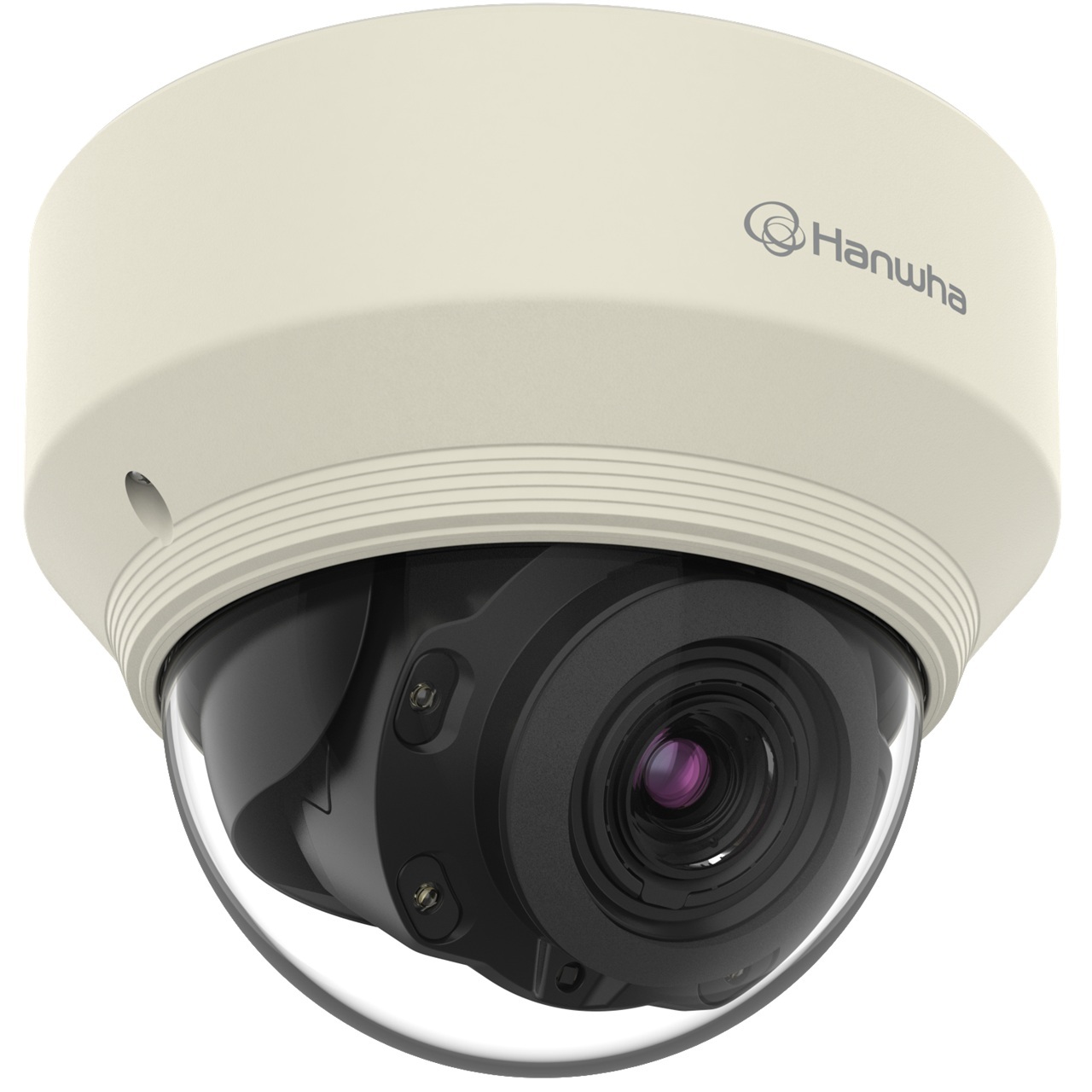

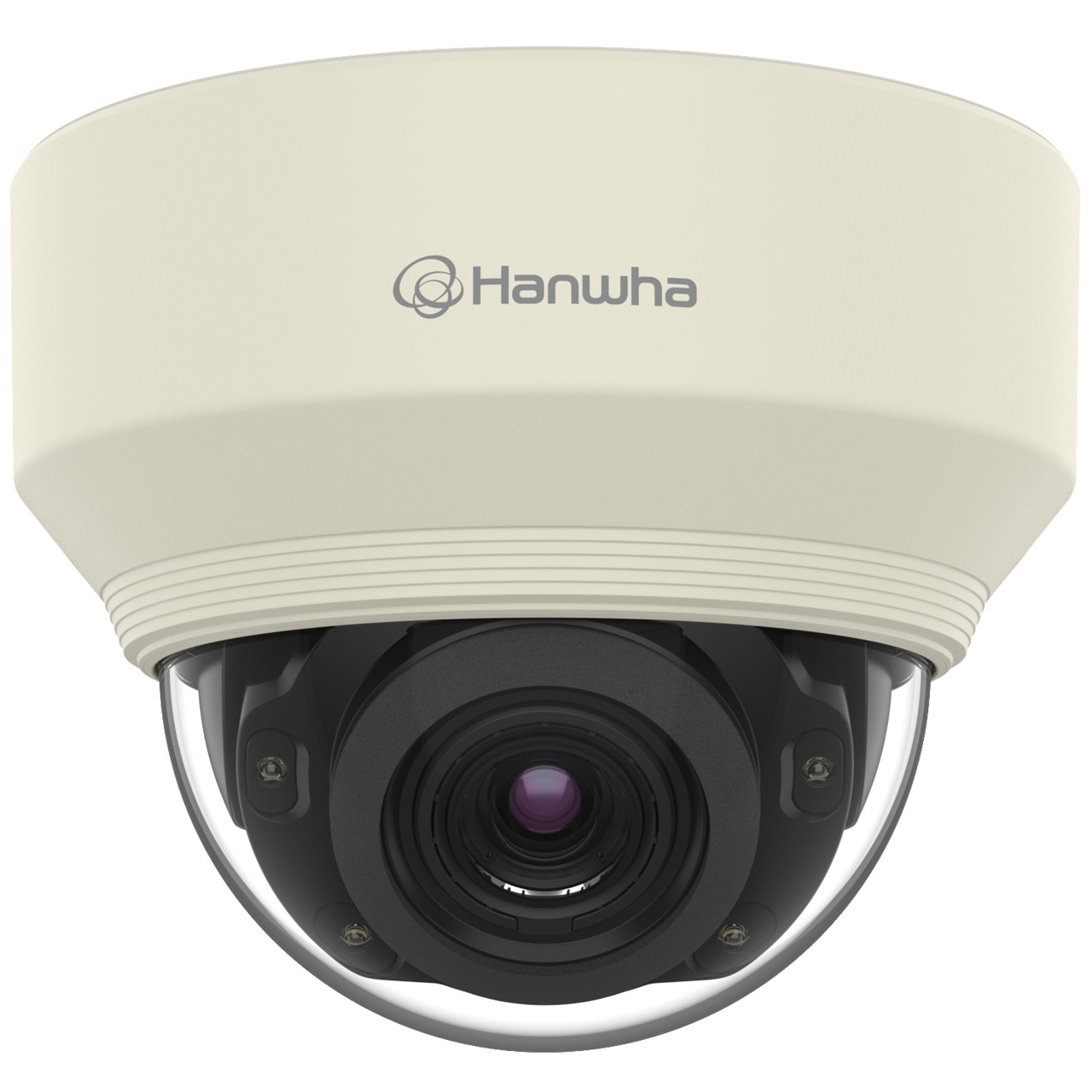

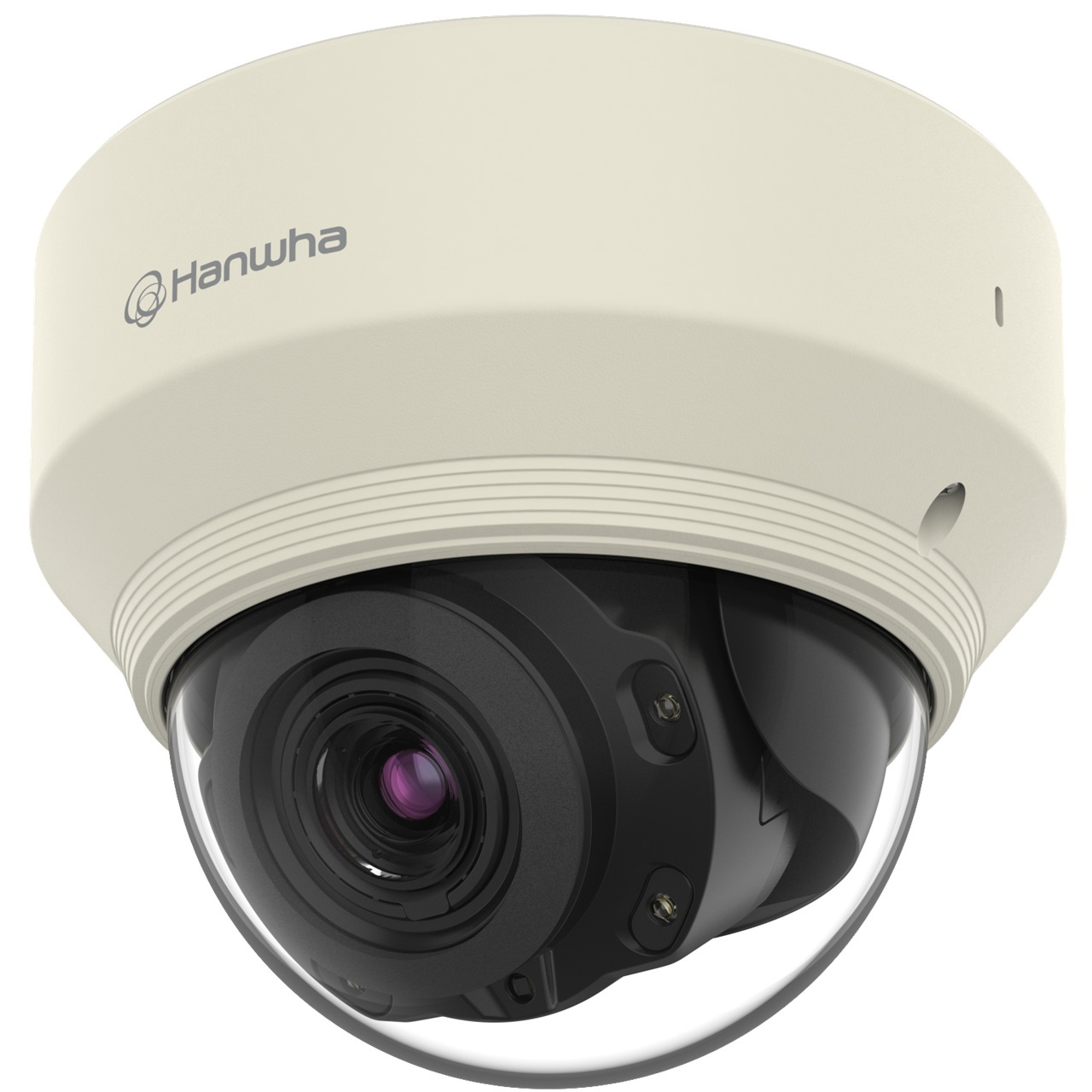

XND-8080RV Hanwha Vision X Series 3.9-9.4mm Motorized 30FPS @ 2560 x 1920 Indoor IR Day/Night WDR Dome IP Security Camera 12VDC/POE

Specifications

Video

• Imaging Device - 1/1.8” CMOS
• Resolution - 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264 : Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.07Lux(F1.3, 1/30sec, 30IRE) BW: 0.007Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, for installation USB: Micro USB Type B

Lens

• Focal Length (Zoom Ratio) - 3.7~9.4mm(2.4x) motorized varifocal
• Max. Aperture Ratio - F1.3
• Angular Field of View - H: 92.1°~38.7° V: 67.2°~29.0° D: 119.9°~48.6°
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus
• Lens Type - DC auto iris, P iris(IR corrected)

Pan / Tilt / Rotate

• Pan / Tilt / Rotate - 0°~354°/0°~67°/0°~355°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HCL, WDR, DWDR,SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8 Point Polygonal zones
• Privacy Masking - 32ea, Polygonal zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Digital PTZ - Support
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Alarm Interface - Input 1ea / Output 1ea
• Alarm Triggers - Analytics, Network disconnection, Alarm input
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover
• Audio In - Selectable(mic in/line in)
• Audio Out - Line out
• Light Type - IR LED
• IR Viewable Length - 50m(164.04ft)
• IR Wavelength - 850nm

Analytics

• Analytics Events - Normal Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction), Digital auto tracking

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual, WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), PIM-SM
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

Security

• User authentication - Digest Authenticaton
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP)
• Secure Communication - HTTPS, SRTP
• Access Control - IP-based access control
• Audit - Access / System / Event Log management

General

• Edge Storage - Micro SD/SDHC/SDXC Max. 256GB x 2slot(Total 512GB)
• Memory - 1GB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -10°C~+55°C(+14°F~+131°F) 0~90% RH(non-condensing)
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / 0~90% RH(non-condensing)
• Input Voltage - PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption - PoE: Max 10.00W 12VDC: Max 9.00W

Mechanical

• Color / Material - Ivory / Plastic
• Product Dimensions / Weight - Ø140.8x113.0mm(Ø5.54x4.45")/ 628g(1.38 lb)

Certifications & Standards

• Environment - IEC 62262 IK08
