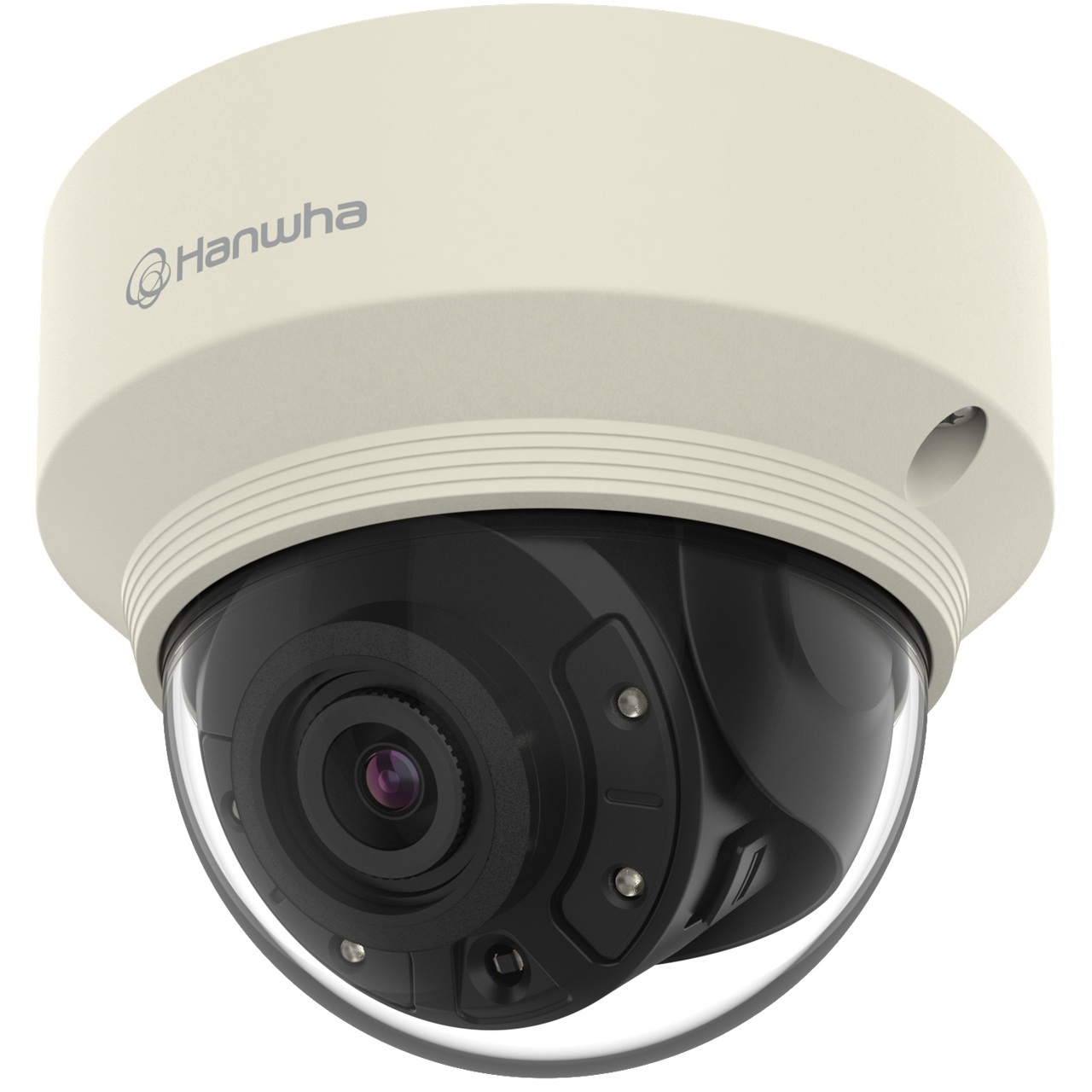

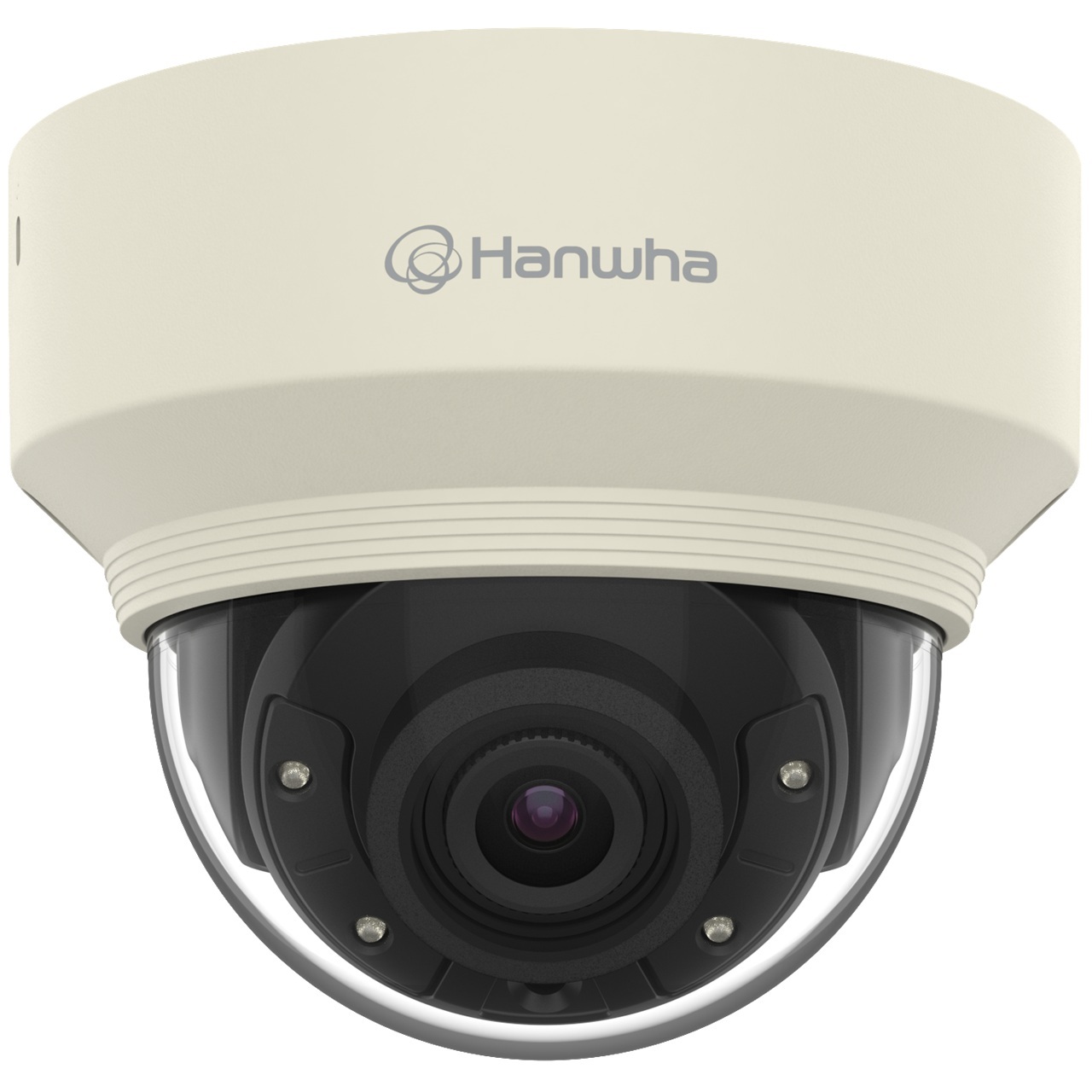

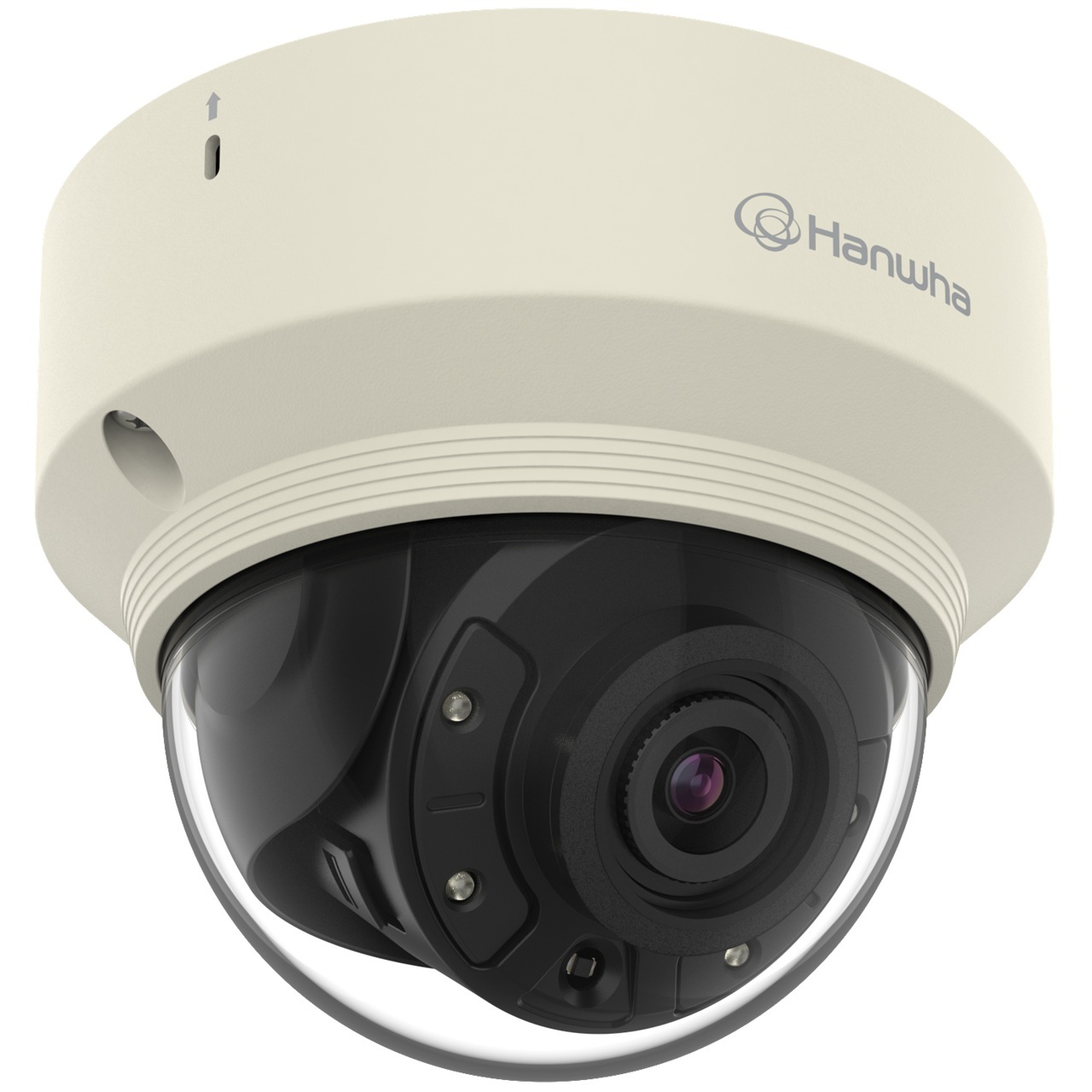

XND-8030R Hanwha Vision X Series 4.6mm 30FPS @ 5MP Indoor IR Day/Night WDR Dome IP Security Camera 12VDC/POE

Specifications

Video

• Imaging Device - 1/1.8" 6M CMOS
• Total Pixels - 3,096(H) x 2,094(V)
• Effective Pixels - 2,616(H) x 1,976(V)
• Scanning System - Progressive Scan
• Min. Illumination - Color : 0.16Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED on)
• S / N Ratio - 50dB
• Video out - CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation, USB : micro USB type B, 1280 x 720 for installation

Lens

• Focal Length (Zoom Ratio) - 4.6mm fixed
• Max. Aperture Ratio - F1.6
• Angular Field of View - H : 77.9Ëš / V : 57.9Ëš / D : 98.7Ëš
• Min. object Distance - 0.4m (1.31ft)
• Focus Control - Manual
• Lens / Mount Type - Fixed / Board-in type

PAN / TILT / RoTATE

• Pan / Tilt / Rotate Range - 0° ~ 354° / 0° ~ 67°/ 0° ~ 355°

OPERATIONAL

• IR Viewable Length - 30m (98.43ft)
• Camera Title - Off / On (Displayed up to 85 characters), - W/W : English / Numeric / Special characters, - China : English / Numeric / Special / Chinese characters, - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
• Day & Night - Auto (ICR) / Color / B/W / External / Schedule
• Backlight Compensation - Off / BLC / HLC (Masking / Dimming), WDR
• Wide Dynamic Range - 120dB
• Contrast Enhancement - SSDR (Off / On)
• Digital Noise Reduction - SSNRV (2D+3D noise filter) (Off / On)
• Digital Image Stabilization - Off / On
• Defog - Off / Auto (Input from fog detection) / Manual
• Motion Detection - Off / On (8ea, 8point polygonal zones), Handover
• Privacy Masking - Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
• Gain Control - Off / Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
• Contrast - Level adjusment
• LDC (Lens Distortion Correction) - Off / On (5 levels with min / max)
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec
• Digital PTZ - 24x, Digital PTZ (Preset, Group)
• Flip / Mirror - Off / On, Hallway view : 90Ëš/270
• Video & Audio Analytics - Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management
• Alarm I/o - Input 1ea / Output 1ea
• Alarm Triggers - Alarm input, Motion detection, Video & Audio analytics, Network disconnect
• Alarm Events - File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output, DPTZ preset
• Pixel Counter - Support

NETWORK

• Ethernet - RJ-45 (10/100BASE-T)
• Video Compression Format - H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution - 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate - H.265 / H.264 : Max. 30fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec - Manual mode (Area-based : 5ea)
• WiseStream II - Support
• Video Quality Adjustment - H.265 / H.264 : Target bitrate level control, MJPEG : Target bitrate level control
• Bitrate Control Method - H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability - Multiple streaming (Up to 10 profiles)
• Audio In - Selectable (Mic in / Line in), Max output level : 1Vrms, Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio out - Line out, Max output level : 1Vrms
• Audio Compression Format - G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8/16/32/48KHz
• Audio Communication - Bi-directional (2-way)
• IP - IPv4, IPv6
• Protocol - TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security - HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP
• Streaming Method - Unicast / Multicast
• Max. User Access - 20 users at unicast mode
• Edge Storage - SD/SDHC/SDXC 2slot (Up to 512GB) - Continuous recording (1st slot to 2nd slot) NAS (Network Attached Storage), Local PC for instant recording
• Application Programming Interface - ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer - Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Non-plugin Webviewer - Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49( Window 64bit only), Apple Safari 9 * Mac OS X only, Plug-in Webviewer - Supported Browser : MS Explore 11, Apple Safari 9 * Mac OS X only
• Central Management Software - SmartViewer, SSM

ENVIRONMENTAL

• operating Temperature / Humidity - -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Vandal Resistance - IK08

ELECTRICAL

• Input Voltage / Current - 12V DC ±10%, PoE (IEEE802.3af)
• Power Consumption - Max. 8W (12VDC), Max. 9W (PoE)

MECHANICAL

• Color / Material - Ivory / Metal
• Dimensions (WxH) - Ø110.0 x 90.0mm (Ø4.33" x 3.54")
• Weight - 380g(0.84lb)
