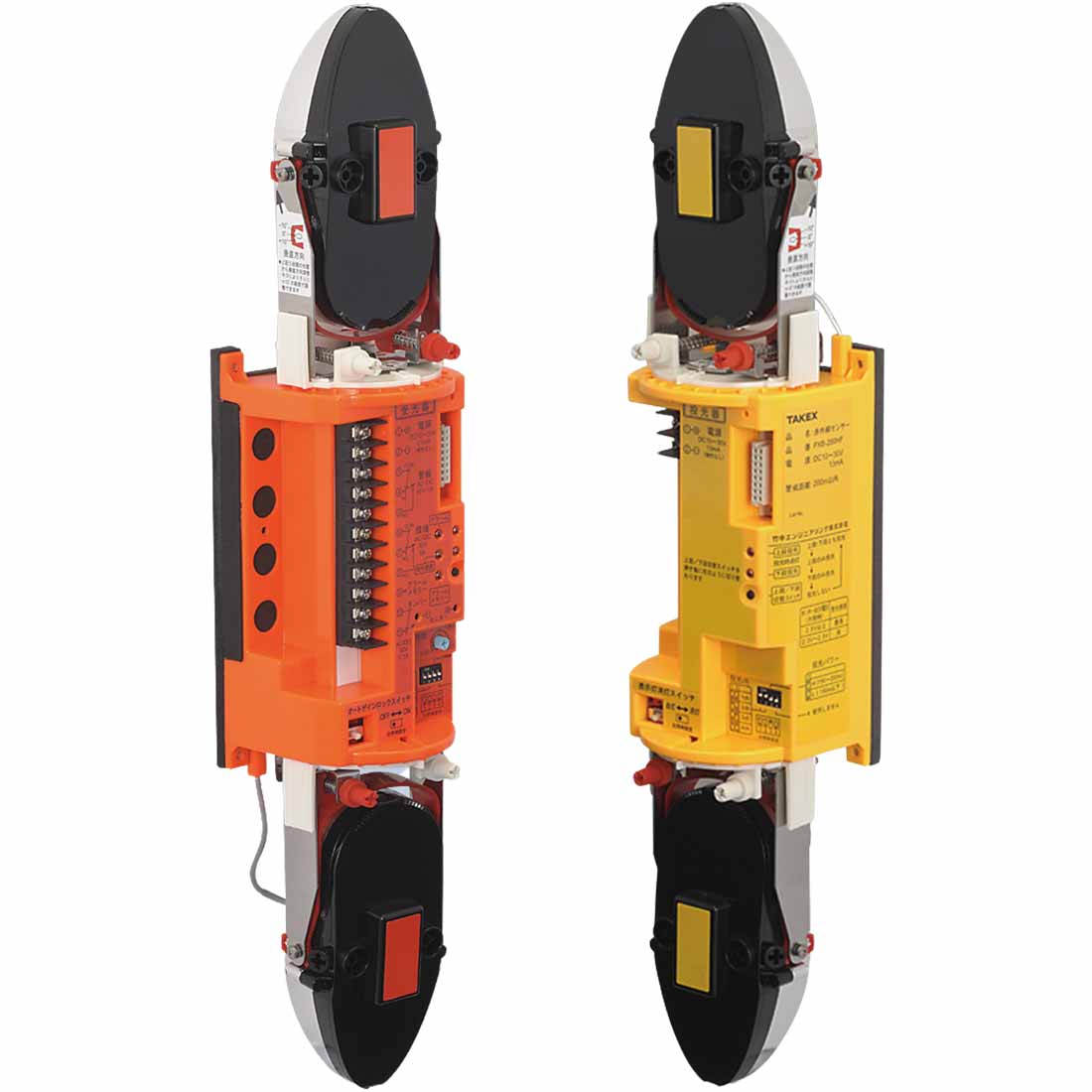

PXB-100ATC-KH TAKEX Indoor/Outdoor Intelligent Quad Beam - 100M

Specifications

• Type - Anti-crawl
• Detection system - Near infrared pulsed beam interruption system (Anti-crawling, Anti-corrosion)
• Infrared beam - Double modulation pulsed beam by LED
• Detection distance - Outdoor 330' (100m) or less
• Response time - AT output : 0.05sec by upper/lower level simultaneous interruption 0.1/0.2/0.3/0.5sec by either level interruption
  HF output : 0.05sec by upper/lower level simultaneous interruption
• Frequency Selection - 4 Channels (+ Sync wire)
• Supply voltage - 12 to 30V DC (Non-polarity)
• Current consumption - Transmitter : 27mA
• Alarm output - Dry contact relay output N.O./N.C. selectable
  Contact action : Interruption time (Min.2sec.)
  Contact capacity : 30V (AC/DC) 0.25A (resistive load)
  Protective resistor
• Environmental output - Dry contact relay output N.O./N.C. selectable
  Action : Activated when weather condition gets worse (Min.5sec.)
  Contact capacity : 30V (AC/DC) 0.25A (resistive load)
  Protective resistor
• LED indicator - Red LED (Receiver) ON : when an alarm is initiated
  Red LED (Receiver) ON : when beam is attenuated
• Adjustment - Horizontal: ±90°, Vertical: ±20°
• Functions - Modulated beam frequency selection, Tone indicator, Environmental module, Beam power selection, Transmitting power adjustment, Programmed AGC, Auto-gain lock function, Monitor Jack, Tamper, Response time adjustment, Upper/lower beam switch, Wireless checker, LED light turn-off function
• Mounting position - Inside TA series Towers
• Wiring - Terminals
• Weight - Transmitter : 12.6oz (360g)
  Receiver : 15.8oz (450g)
• Ambient temperature - -31°F to +151°F (-35°C to +66°C)
• IP Rating - N/A
