VAR2-i8-3-C Raytec Vario2 940nm Infra-Red Illuminator Adjustable FOV Up to 994 Feet @ 10 Degrees 12-24VAC/VDC

VARIO2 is the next generation of Infra-Red and White-Light illuminators from Raytec. Using the latest PLATINUM Elite SMT LEDs, VARIO2 allows cameras to generate longer illumination distances using less power. VARIO2 features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination where it is most needed. With the optional hand-held remote control, VARIO2 also makes installation and commissioning quicker, easier and safer. The VARIO2 i8-3 Adaptive Illumination Infra-Red series delivers maximum distances up to 606m (1988ft).

Specifications

• Max Distance - 606m (1,988f t)
• Angle

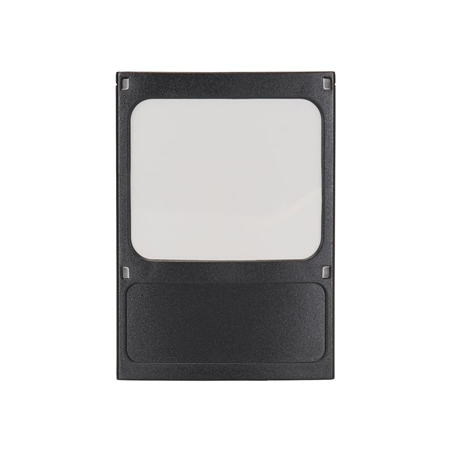

  • Each panel includes a standard pack of 10° circular +
  • 35° x 10° (fitted as standard) and
  • 60° x 25°elliptical lenses.
  • Additional optional lenses: 80° x 30°, 120° x 50°
• Input - 12/24V AC/DC
• Consumption - 138W max
• Beam Shape - Elliptical with HRT (Hot-spot Reduction Technology)
• Beam Angle System - VARIO Interchangeable Lens System
• LED type - Platinum Elite SMT LEDs
• Number of LEDs - 72
• Wavelength - 850nm (940nm options available)
• IP rating - IP66
• Temperature Range - -50° to +50°C (-58 to 122°F)
• Colour - Black
• Weight - 6kg (13.2lbs)
• Dimensions - 423 x 226 x 68mm (17" x 9" x 3" approx.)
• Cable Length - 2.5m
• Bracketry - U bracket included VUB Bracketry also available (Optional)
• Country of Manufacture - United Kingdom

VAR2-i8-3-C Specifications PDF
