VAR2-w2-1 Raytec Vario2 White-Light Illuminator Adjustable FOV Up to 197 Feet @ 10 Degrees 12-24VAC/VDC

VARIO2 is the next generation of Infra-Red and White-Light illuminators from Raytec. Using the latest PLATINUM Elite SMT LEDs, VARIO2 allows cameras to generate longer illumination distances using less power. VARIO2 features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination where it is most needed. With the optional hand-held remote control, VARIO2 also makes installation and commissioning quicker, easier and safer. The VARIO2 w2-1 White-Light series delivers maximum distances up to 50m (164ft).

Specifications

• Total Lumens - 932lm per luminaire
• Max Distance - 60m (197f t)
• Angle
  • Standard pack includes 10° circular +
  • 35° x 10° (fitted as standard) and
  • 60° x 25°elliptical lenses.

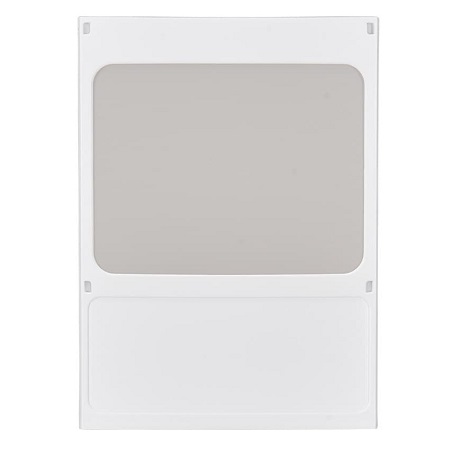

  • Additional optional lenses: 80° x 30°, 120° x 50°
• Input - 12/24V AC/DC
• Consumption - 11W max
• Beam Shape - Elliptical with HRT (Hot-spot Reduction Technology)
• Beam Angle System - VARIO Interchangeable Lens System
• LED type - Platinum Elite SMT LEDs
• Number of LEDs - 6
• Wavelength - White-Light
• Colour Temp - 6000K ~
• Colour Reproduction Index - >70
• IP rating - IP66
• Temperature Range - -50° to +50°C (-58 to 122°F)
• Colour - Silver
• Weight - 600g (1.3lbs)
• Dimensions - 75 x 100 x 64mm (3" x 4" x 2.5" approx.)
• Cable Length - 2.5m
• Bracketry - U bracket included VUB Bracketry also available (Optional)
• Country of Manufacture - United Kingdom

VAR2-w2-1 Specifications PDF
