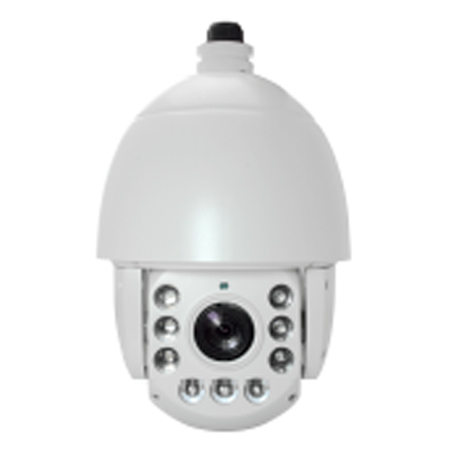

Z8-P4NTAF66LAC Ganz 4.6-152mm 30FPS @ 1920 x 1080 Outdoor IR Day/Night WDR Dome PTZ Security Camera 24VAC

Specifications

• Image Sensor - 1/2.9" Sony CMOS Sensor
• Max. Resolution - 1920x1080
• Frame - PAL:25fps , NTSC:30fps
• Shutter Speed - PAL:1/50-1/50000; NTSC: 1/60-1/60000
• Wide Dynamic Range - dWDR
• Day & Night - ICR
• Min. illumination - 0.1Lux Color @ (F1.6) 0.01 Black & White
• SNR - ≥50dB (AGC OFF)
• Lens - x33, f = 4.6 mm ~ 152mm
• FOV - Appr.55.2°(Wide) 3.2° (Tele)
• IRIS - Auto, F1.6-Close
• IR LED - 12pcs
• IR Range - 150m
• Rotation - Pan continuously 360° Tilt 0∼90°with auto-flip
• Video Transmission - 300m
• Speed Proportion - As the length of focus, to auto-adjust the speed
• Preset - 128 preset, title can be edited
• Scan - 4 scan
• Tour - 4 tour
• Pattern - 4 patterns
• White Balance - ATW//Indoor/Outdoor
• DNR - 2D/3D
• Light Compensation - BLC/HLC/OFF
• Max Distance - >300m, 75-5
• Output Interface - Female BNC
• Communication - Control over coaxial ,RS485
• Power Supply - DC24V/2.5A
• Power Consumption - 9W/25W(IR LED ON
• Operating Temperature - 14oF~+131oF (-10°C~+55°C)
• Operating Humidity - 0% - 85% RH
• Dimensions - Φ9.4" x 13.8" (Φ239x351mm)
• Weight - 15.2lb. (6.9kg.)
• IP Class - IP66, ,TVS4000V

Z8-P4NTAF66LAC Specifications PDF
