IPHDOC-7IN-V2 Rainvision 7" Touch Screen Test Monitor w/ Built-in Wifi H.265 4K - HD-TVI / HD-CVI / AHD / Analog and IP

Specifications

• Display - 7" IPS TFT-LCD Test Monitor with Touch Screen
• Resolution - 1200 x 800
• Network Port - 10 / 100M Auto Adapt, RJ45
• WiFi - Built-in Wifi, Speeds 150M, Display Wireless Camera Image
• H.265 Mainstream Test - New Hardware Decoding / H.265 Decoding / 4K, H.265 & H.264 by Mainstream Code Test
• Dual Window Test - IP & HD-TVI / HD-CVI / AHD / Analog Camera Test at the Same Time
• IP Camera Type - ONVIF, Rainvision,
• IP Discovery - Auto-scan the Whole Network Segment Camera IP
• Rapid ONVIF - Auto Log-in and Display Image, Activate Rainvision Camera, One Key Testing Report
• HD-TVI 3.0 Camera Test (H) - 25/30FPS @ 1080p, 50/60FPS @ 720p, 25/30FPS @ 720p 18FPS @ 3MP (2048 x 1536)
• HD-CVI Camera Test (D) - 25/30FPS @ 1080p, 50/60FPS @ 720p, 25/30FPS @ 720p
• AHD Camera Test (A) - AHD 2.0, 25/30FPS @ 1080p, 25FPS/30FPS @ 720p
• CVBS Loop Test - The Tester Sends and Receives Color Bar Generator Singal to Check BNC Cable
• CVBS Video Test - 1 Channel BNC Input, 1 Channel BNC Looped Output, NTSC/PAL (Auto Adapt)
• Android Software - You can Install Android Version Software, QQ, Wechat, etc.
• Video Level Meter - PEAK Video Singal Level, SYNC Singal Level, Color Bar Chroma Level Measurement
• 4x Enlarge Image - Display Image, 4X Enlarge
• PoE Voltage Measurement - Check the PoE Voltage
• Screen Management - Change Functions Icons Order and You Can Create New Directory
• Snapshot Video Record - Image Screen Snapshot, Record, Save, View and Record and Playback
• HDMI Input - 1 Channel HDMI Outout, 1080p
• CVBS Video Test - 1 Channel HDMI Output, 1080p
• PoE Power Output - 48V PoE Power Output, Max Power 24W
• DC 12V Power Output - Output DC12V/2A Power for Camera
• USB 5V Power Output - 5V 2A Power Output
• Theme - Lite Mode and Normal Mode Optional, Self Define Function Icon, Desktop and Application Drop-down MenuSelect PoE Power, IP Setting, WLAN Switch, HDMI In Apps, etc. in Any Interface
• Audio Test - 1 Channel Audio Signal Input
• PTZ Control - RS485 Control, Baud 600-115200bps
• Color Bar Generator - Output One Channel PAL/NTSC Color Bar Video Singal for Testing Monitor or Video Cable
• UTP Cable Test - Test UTP Cable Connection Status and the Sequence of Wires on the Screen and Save Testing
• Data Monitor - Captures and Analyzes the Command Data from Controlling Device
• Network Test - IP Address Scan, Ping Test, Quickly Search the Connection IP Camera and Other Devices IP
• PoE/PSE Test - Measurement PoE Switch or PSE Power Supply Voltage and Cable Connection Status
• External Power Supply - DC 12V (2A)

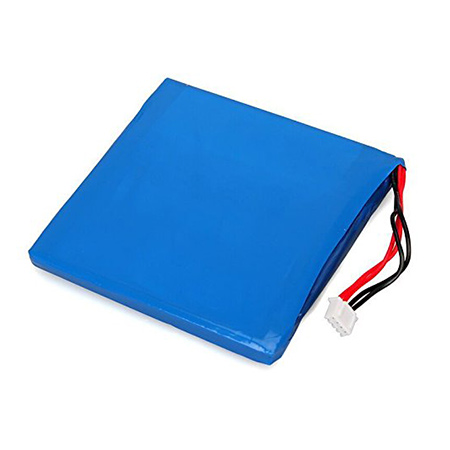

• Battery - Built-in 7.4V Lithium Polymer Battery, 5400mAh
• Rechargeable - After Charging 5~6 Hours, Normal Working Time 10 Hours
• Operation Setting - OSD Menu
• Laguage - Engligh, Chinese, Korean, Russian, Italian, French
• Auto Standby - 5-30 Minutes
• Working Temperature - 14° F - 122° F
• Working Humidity - 30% - 90%
• Dimensions - 9.45" x 6.06" x 1.81"
• Weight - 1.37 lbs

IPHDOC-7IN-V2 Specifications PDF
