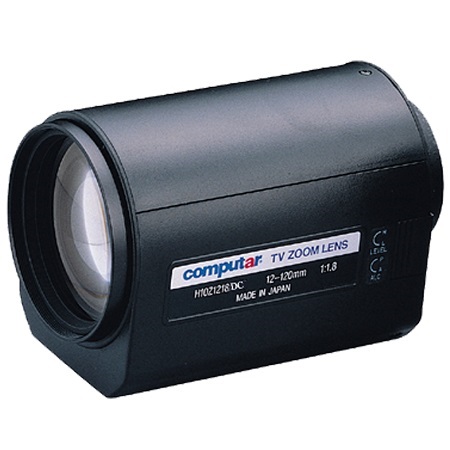

H10Z1218DC Computar 1/2" CS-Mount Motorized Zoom 12-120mm F/1.8 DC Auto Iris Lens

Computar Motorized Zoom Lenses provide remote control of focal length, iris and focus through the use a lens controller, for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance in parking lots, highways, etc.

Specifications

• Focal Length - 12- 120mm
• Max. Aperture Ratio - 01:01.8
• Max. Image Format - 6.4 x 4.8mm ( 8mm)
• Operation Range
  • Iris - F1.8 - 560
  • Focus - 1.5m - Inf.
  • Zoom - 12- 120mm
• Control
  • Iris - DC Auto Iris(by galvanometer)
  • Focus - Motorized
  • Zoom - Motorized
• Object Dimension at M.O.D.
  • 12mm - 78.7 x 58.9cm
  • 120mm - 8.1 x 6.0cm
• Angle of View
  • 1/2"
    • D - 36.4-3.8°
    • H - 29.4-3.1°
    • V - 22.2-2.3°
  • 1/3"
    • D - 27.6-2.9°
    • H - 22.2-2.3°
    • V - 16.7-1.8°
• Control
  • Supply Voltage
    • Focus - DC8V
    • Zoom - DC8V
  • Current
    • Focus - 40mA or less
    • Zoom - 40mA or less
  • Response Time
    • Focus - Approx. 5 sec.
    • Zoom - Approx. 4.5 sec.
• Iris(DC Auto Iris)
  • Drive Coil - 190
  • Control Coil - 1000
• Operating Temperature - - 10°C+50°C
• Effective Lens Aperture
  • Front - 54.0mm
  • Rear - 9.2mm
• Back Focal Length - 14.4 mm
• Flange Back Length - 17.526 mm
• Mount - C-Mount
• Filter Size - M62 P=0.75 mm
• Tripod Screw - 1/4"-20UNC
• Dimensions - W70xH79.5xD123.5mm
• Weight - 630g

H10Z1218DC Specification PDF
