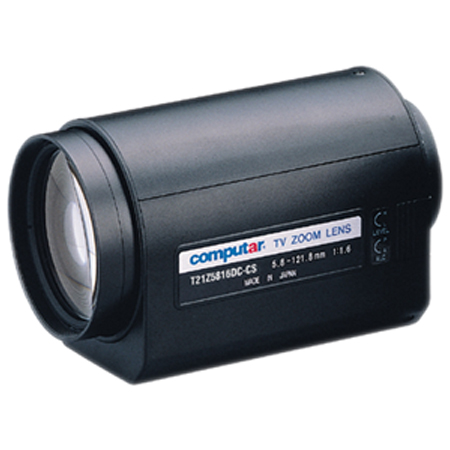

T21Z5816PDC Computar 1/3" CS-Mount Motorized Zoom 5.8-121mm F/1.8 DC Auto Iris Lens

Specifications

• Focal Length - 5.8mm - 121.8mm
• Max. Aperture Ratio - 1:1.6
• Max. Image Format - 4.8mm x 3.6mm(6mm)
• Operation Range
  • Iris - F1.6 - F560C
  • Focus - 1.5m - Inf.
  • Zoom - 5.8mm - 121.8mm
• Control
  • Iris - DC Auto Iris
  • Focus - Motorized, Preset
  • Zoom - Motorized, Preset
• Object Dimension at M.O.D.
  • 5.8mm - 123.7cm x 91.1cm
  • 121.8mm - 6cm x 4.7cm
• Angle of View
  • 1/3"
    • D - 55.5° - 2.9°
    • H - 44.8° - 2.3°
    • V - 33.8° - 1.8°
  • 1/4"
    • D - 42.0° - 2.2°
    • H - 33.8° - 1.8°
    • V - 25.3° - 1.3°
• Supply Voltage
  • Focus - DC8V
  • Zoom - DC8V
• Current
  • Focus - 40mA or less
  • Zoom - 35mA or less
• Response Time
  • Focus - Approx. 4.5 sec.
  • Zoom - Approx. 3.5 sec.
• Preset Potentiometer
  • Focus - 5KVR
  • Zoom - 5KVR
• Coil
  • Drive - 190
  • Control - 1000
• Operating Temperature - -10°C - +50°C
• Effective Lens Aperture
  • Front - 53.2mm
  • Rear - 10.6mm
• Back Focal Length - 13.6mm
• Flange Back Length - 12.5mm
• Mount - CS-Mount
• Filter Size - M62 P=0.75mm
• Tripod Screw - 1/4 - 20UNC
• Dimensions - W70mm x H81mm x D126.5mm
• Weight - 690g

T21Z5816PDC Specifications PDF
