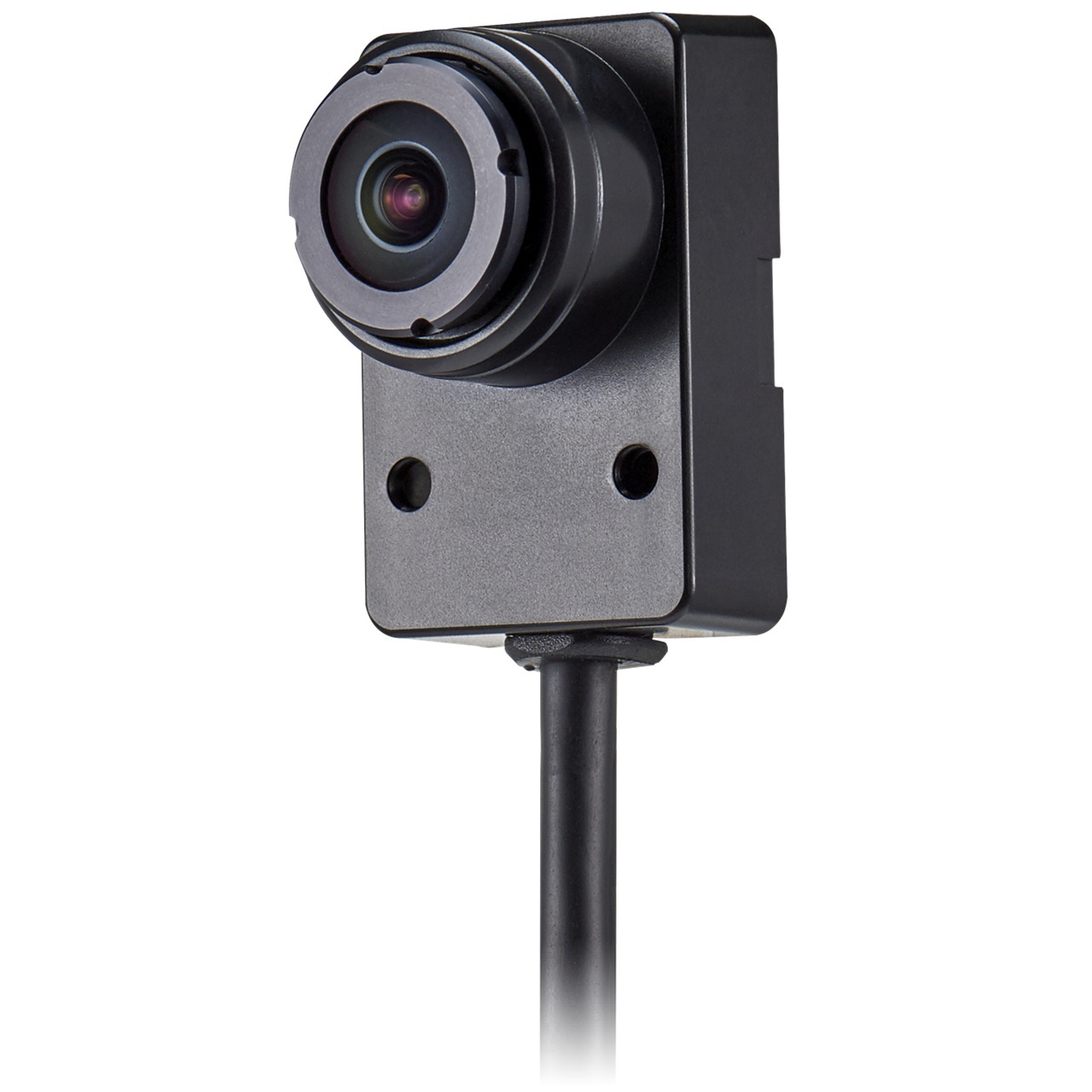

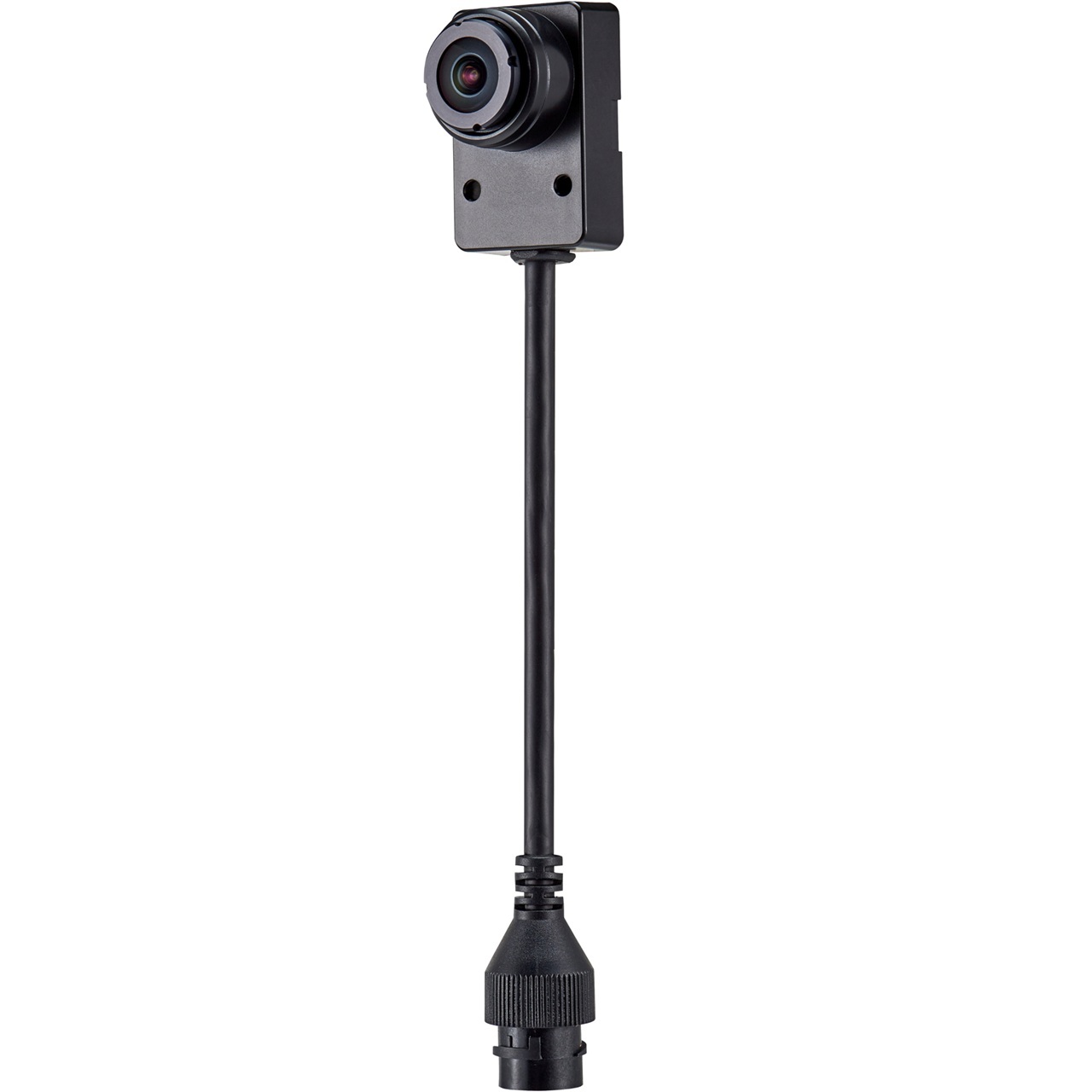

SLA-T2480V Hanwha Vision 2.4mm 1080p Lens

SLA-T2480V Hanwha Vision 2.4mm 1080p Lens	SLA-T2480V Hanwha Vision 2.4mm 1080p Lens	SLA-T2480V Hanwha Vision 2.4mm 1080p Lens
(Click to see larger image and other views)

SLA-T2480V Hanwha Vision 2.4mm 1080p Lens

SLA-T2480V Hanwha Vision 2.4mm 1080p Lens	SLA-T2480V Hanwha Vision 2.4mm 1080p Lens	SLA-T2480V Hanwha Vision 2.4mm 1080p Lens
(Click to see larger image and other views)

SKU: SLA-T2480V

Brand: Hanwha Vision

2.4mm Fixed Lens Module

Features:

2.4mm fixed lens module
2MP resolution
0.45 Lux
120dB WDR
FoV: H: 138°
8m/26ft cable
TAA compliant model: SLA-T2480V/DO

Right angle body lens module for the XNB-6001

More details...

MPN: SLA-T2480V
EAN: 8801089125071

MSRP Price: $215.00

Web Price$215.00

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

Specifications

Video

Imaging Device - 1/2.8" CMOS
Total Pixels - 1,945(H)x1,109(V) 2.16M
Effective Pixels - 1,945(H) x 1,097(V) 2.13M
Scanning System - Progressive Scan
Min. Illumination - Color : 0.45Lux (F2.0) B/W : 0.45Lux (F2.0)
S/N Ratio - 50dB
Wide Dynamic Range - 120dB
Day & Night - Electrical

Lens

Focal Length (Zoom Ratio) - 2.4mm
Max. Aperture Ratio - F2.0
Angular Field of View - H : 138° / V : 73° / D : 168°
Min. Object Distance - 0.3m (0.98ft)
Lens Type - Fixed focal
Mount Type - RJ12 connected with main unit

Environmental

Operating Temperature / Humidity - -10°C~+55°C(+14°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / Less than 90% RH

Mechanical

Color - Lens: Black
Material - Plastic, Metal Cable : Black
Dimensions(WxHxD) - Lens : 30 x 27.9 x 45mm (1.18" x 0.10" x 1.77") Cable : 8m (314.96")
Weight - 328g (0.72 lb)

SLA-T2480V Specifications PDF
