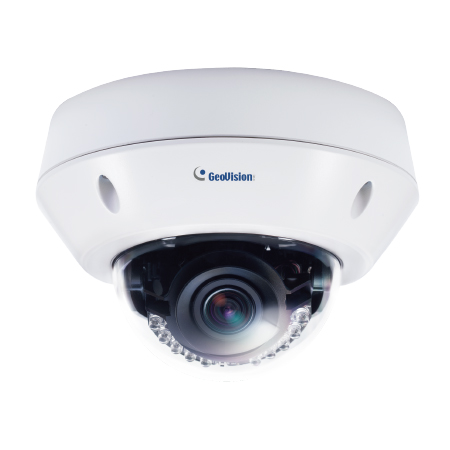

[DISCONTINUED] GV-VD8700 Geovision 3.3~12mm Varifocal 30FPS @ 8MP Outdoor IR WDR Vandal Proof IP Dome Security Camera 12VDC/POE

Introduction Video

Specifications

Camera

• Image sensor - 1 / 2.5" progressive scan low lux CMOS
• Lens - Horizontal FOV 40°~ 115°
• IR LED - IR distance up to 40 m (131.23ft)
• Auto IR - Automatically removable infared-cut
• Min. Illumination - Color: 0.05 Lux, B / W: 0.04 Lux, IR ON: 0 Lux.
• Pan/Tilt/Rotate - 3-axis mechanism. Camera Angle Adjustment Pan 0°~ 350°, Tilt 0°~ 75°, Rotate 0°~ 340°

Video

• Resolution
  • 16 : 9 – 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 352
  • 4 : 3 – 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960, 1024 x 768, 640 x 480
• Video Streaming - Triple streams of H.265 or H.264 (max. bandwidth 4K/2K H265 at 30fps)

Network

• Supported Protocols - Ethernet Protocol TCP, UDP, DHCP, DDNS, HTTP, HTTPS, NTP, RTSP, SMTP

Intelligent video

• Video Analytic - Intelligent outdoor motion detection, Tampering alarm,Face detection, Face recognition. (8 faces in 1.5 seconds, 10,000 enroll ID)

Audio

• Audio Codec
  • G.711, AAC (Optional)
  • Internal Mic
• Audio Input/Output - Audio jack: 1 In / 1 Out

System

• API - Android SDK / NDK, AndroVideo SDK
• ONVIF
  • Profile S
  • Operating System: Microsoft Windows 10 / 8 / 7, Internet Explorer 10 / 11
• System Requirement
  • Mobile Device Access: Advan-Eye for iOS and Android
  • Other Players: VLC: 2.1.1 or above (to support H.265)
• Memory - 2GB RAM, 8GB ROM
• Power Source - PoE (IEEE 802.3at), 12V DC with 2-pin terminal block
• Internet Conn - Ethernet RJ45, 10BASE-T/100BASE-TX
• Edge Storage - Micro SD/SDHC memory card slot (card not included)
• Operating Conditions
  • Start-up: -20°C ~ 50°C (-4°F ~ 122°F)
  • Operation -30°C ~ 50°C (-22°F ~ 122°F)
  • Humidity: 10% to 90% (no condensation)
• IngressProtect - IP66
• Vandal Resistance. - IK10 impact-resistant with aluminum case
• Approvals - CE, FCC, RoHS compliant
• Weight - 1.7 kg (3.75 lb)
• Dimension - 204 x 199.8.160mm (L x W x H)

GV-VD8700 Specifications PDF
