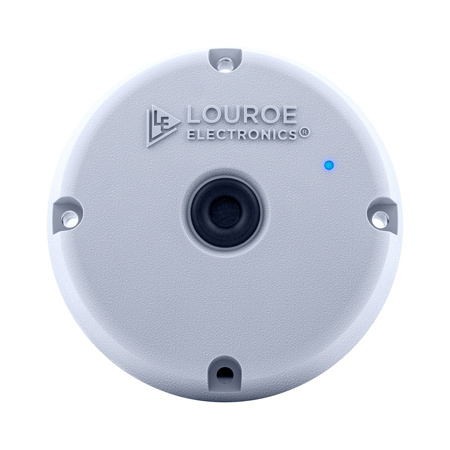

LE-870 Louroe Electronics Digifact A Smart IP Ceiling/Surface Mount Microphone 5VDC/PoE

The all-new Digifactâ„¢ A is an IP microphone with audio analytics capabilities and an onboard processor to meet today's security needs. The Digifact features a quad-core processor that streams audio over multiple industry standards including Real Time Streaming Protocol (RTSP) and can be easily connected to leading VMS platforms. It incorporates audio and signal processing for clear audio capture quality and a wide dynamic range.
The microphone's decibel level threshold alarming can create alarms based on specific dB levels and trigger relay outputs to cameras or other equipment making it capable of operating independently or as part of a larger security solution. When utilized with audio analytics, the Digifactâ„¢ A can automatically detect gunshots, aggression, car alarms and/or glass breakage.

Specifications

Audio

• Audio Streaming - One-Way
• Sensitivity - - 45 dBV/Pa, 1 Pa = 94 dB SPL
• Frequency Response - 50 Hz to 15 kHz

Network

• Supported protocols - IPv4, HTTP, RTSP, RTP, TCP, SSH
• Security - Password protection, user level access

General

• Enclosure - High Impact Anti-Static ABS
• Power - Power over Ethernet IEEE802.3af Optional external 5V DC 2A
• Memory - 512 MB RAM
• Event Trigger - Audio analytics, decibel threshold
• Event Actions - TCP notification, external output activation, pre and post-alarm audio recording to Network Attached Storage (NAS)
• Connectors - Female RJ45 for 10BASE-T/100BASETX PoE; 5-pin header for four outputs (5V DC), max load 100mA; 2-pin header for 5V DC 2A input

LE-870 Installation Manual

LE-870 Specifications PDF
