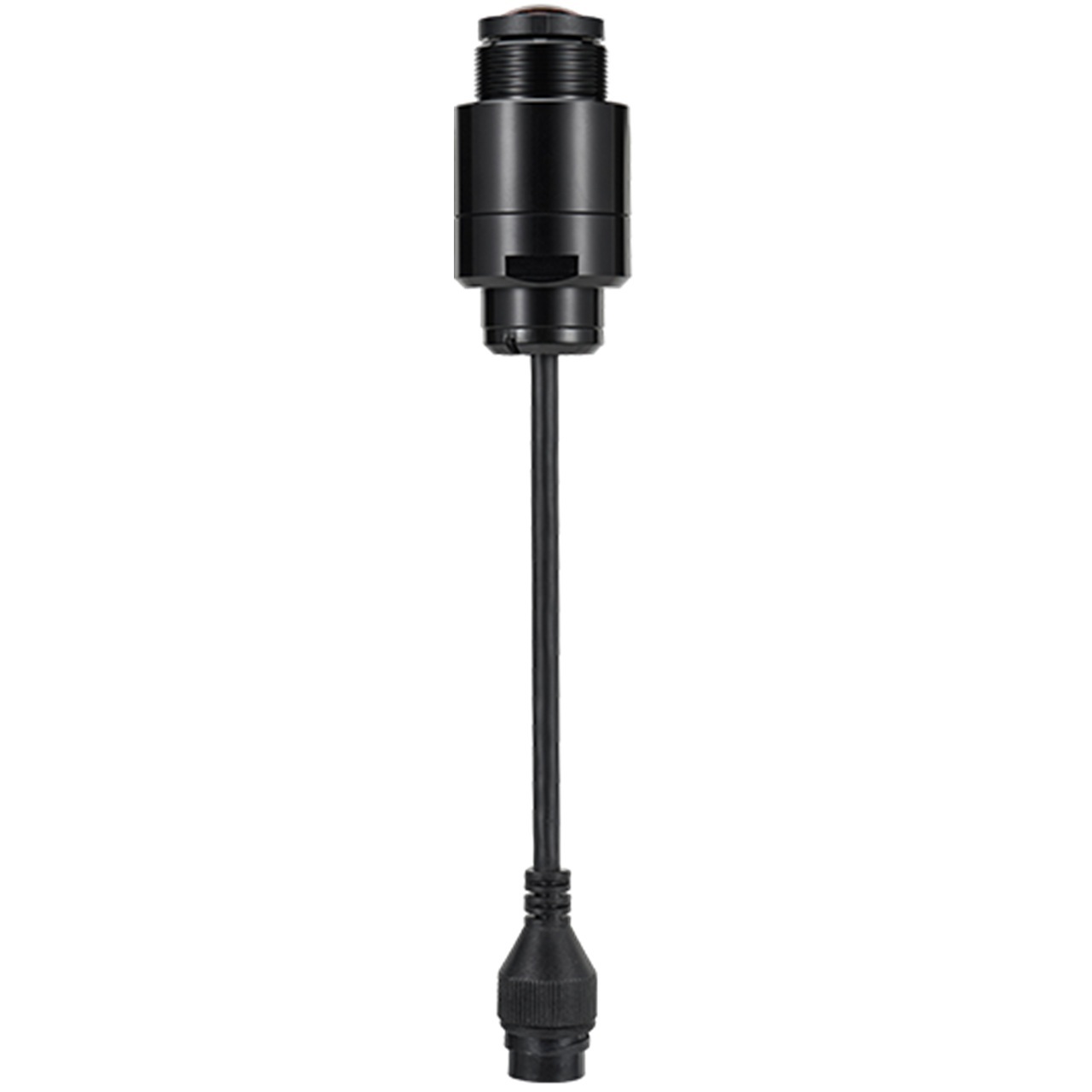

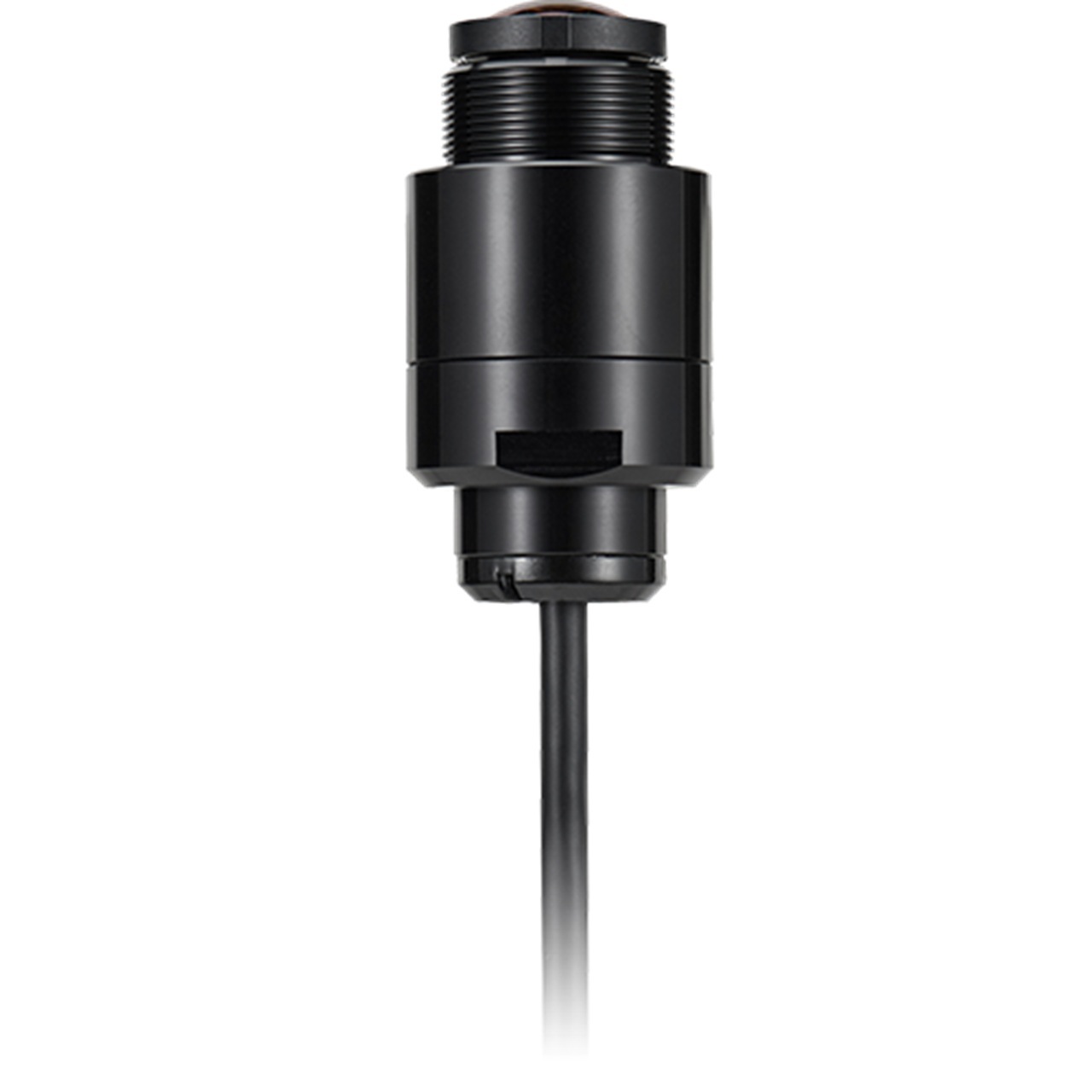

SLA-T1080F Hanwha Techwin 2M Lens Module

Specifications

Video

• Imaging Device - 1/2.8" 2M CMOS
• Total Pixels - 1,945(H) x 1,109(V) 2.16M
• Effective Pixels - 1,945(H) x 1,097(V) 2.13M
• Scanning System - Progressive Scan
• Min. Illumination - Color : 0.03Lux (F1.6)
• S / N Ratio - 50dB
• Wide Dynamic Range - 120dB
• Day & Night - Electrical

Lens

• Focal Length (Zoom Ratio) - 1.6mm
• Max. Aperture Ratio - F1.6
• Angular Field of View - H : 187° / V : 113.9°
• Min. Object Distance - 0.3m (0.98ft)
• Lens Type - Fixed focal
• Mount Type - RJ12 connected with main unit

Environmental

• Operating Temperature / Humidity - 10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - 50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH

Mechanical

• Color / Material - Lens : Black / Plastic, Metal. Cable : Black
• Dimensions (WxHxD) - Lens : Ø35 x 68.9mm (Ø1.38" x 2.71"). Cable : 8m (314.96")
• Weight - 321g (0.71 lb)

SLA-T1080F Specifications PDF
