DWG

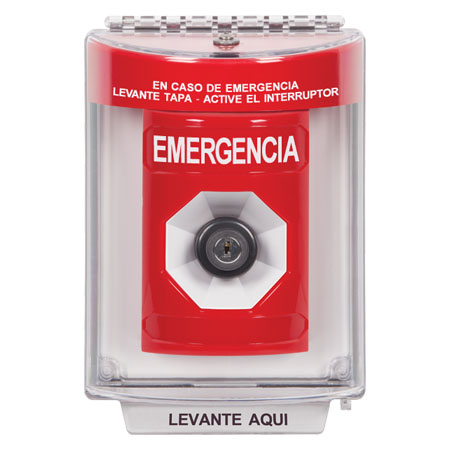

SS2033EM-ES STI Red Indoor/Outdoor Flush Key-to-Activate Stopper Station with EMERGENCY Label Spanish

SKU: SS2033EM-ES
  • Color Option :Red
  • Cover Option :Indoor/Outdoor Flush
  • Switch Configuration Option :Key-to-Activate
  • Label Text Option : EMERGENCY
  • Label Language Option : Spanish
  • Multipurpose push button switches cover a wide range of applications both indoors and outdoors
  • Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components)
  • Unique, curved design helps protect against accidental activation
  • Station housing molded of tough polycarbonate
  • Models used with LT-1UL Latching Timer Module are Listed for access control
  • Stainless steel backplate
  • 5VA flammability rating on backplate and spacer
  • Typical working properties of polycarbonate are -40F to 250F (-40C to 121C)
  • Polycarbonate complies with FDA regulations for food contact applications
More details...
MSRP Price: $146.97
Web Price: $109.00
Save to my Wish List
Product Details

These multipurpose push button switches cover a wide range of applications both indoors and outdoors. Theyre called Stopper Stations. They incorporate a unique, patented design that helps dramatically to stop accidental activation. A number of standard models are available or we can create custom units to meet your needs exactly. You have your choice of any of five universal shell colors, several button styles, standard or custom wording and language.


Specifications

  • Interchangeable or replaceable N.O. or N.C., SPST gold-plated contact blocks rated for 6 amps @ 600 VAC or 1 amp @ 250 VDC
  • Standard switch includes one N.O. and one N.C. contact. Holds up to three sets of isolated contacts.
  • Contact Depth : 2.13
  • Note: To properly fit a stopper station some standard single gang boxes need additional depth. To add 5/8 depth, order KIT-102722-color (B=blue, G=green, R=red, Y=yellow, W=white, E=orange)

SS2033EM-ES Specifications PDF

STI Stopper Station Ordering Guide

Check out some additional items that you may need to purchase with this product:
Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.

STI-1314 STI Universal Stopper Mounting Back Plate

STI-1314 STI Universal Stopper Mounting Back Plate

MSRP Price: $22.00

Web Price: $22.00
