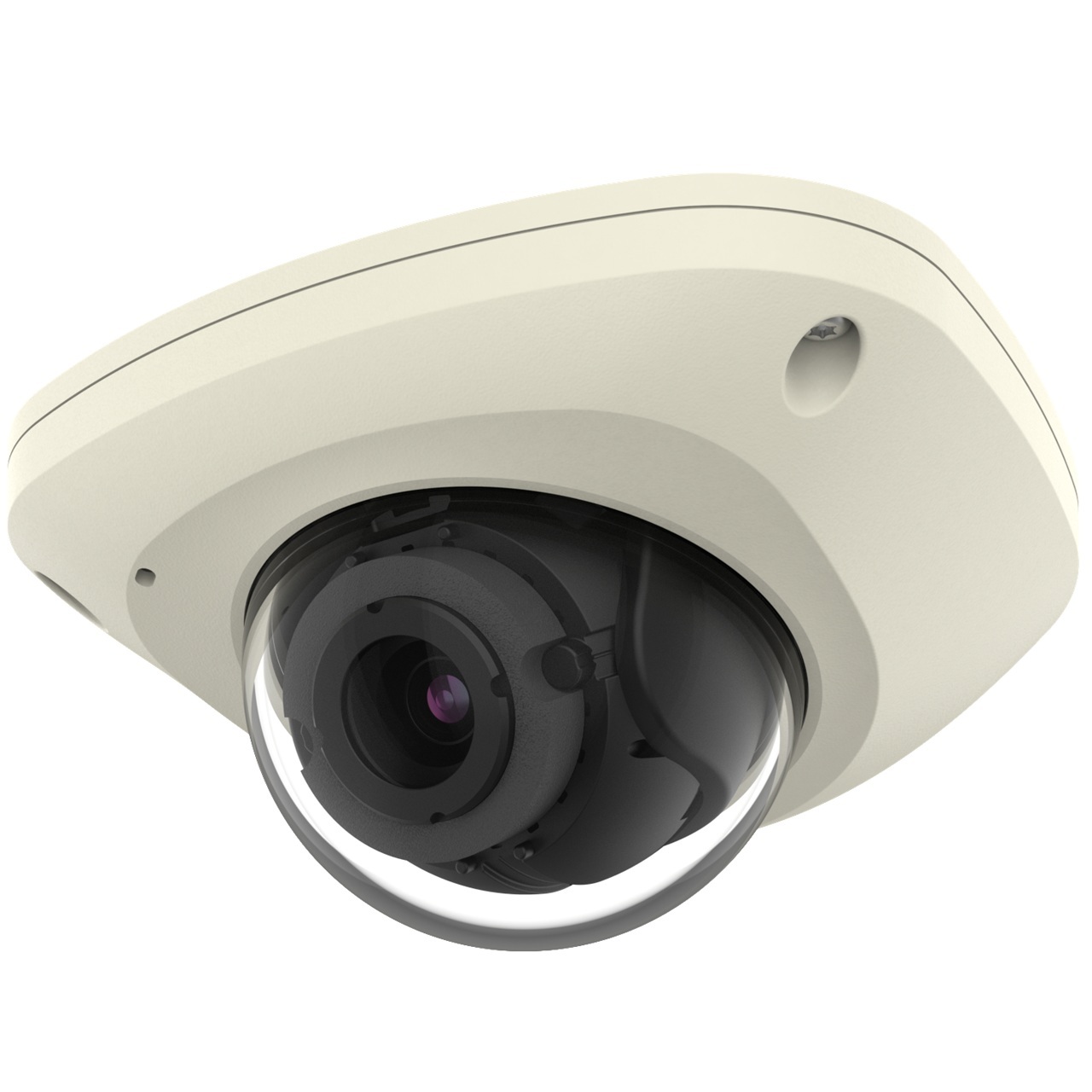

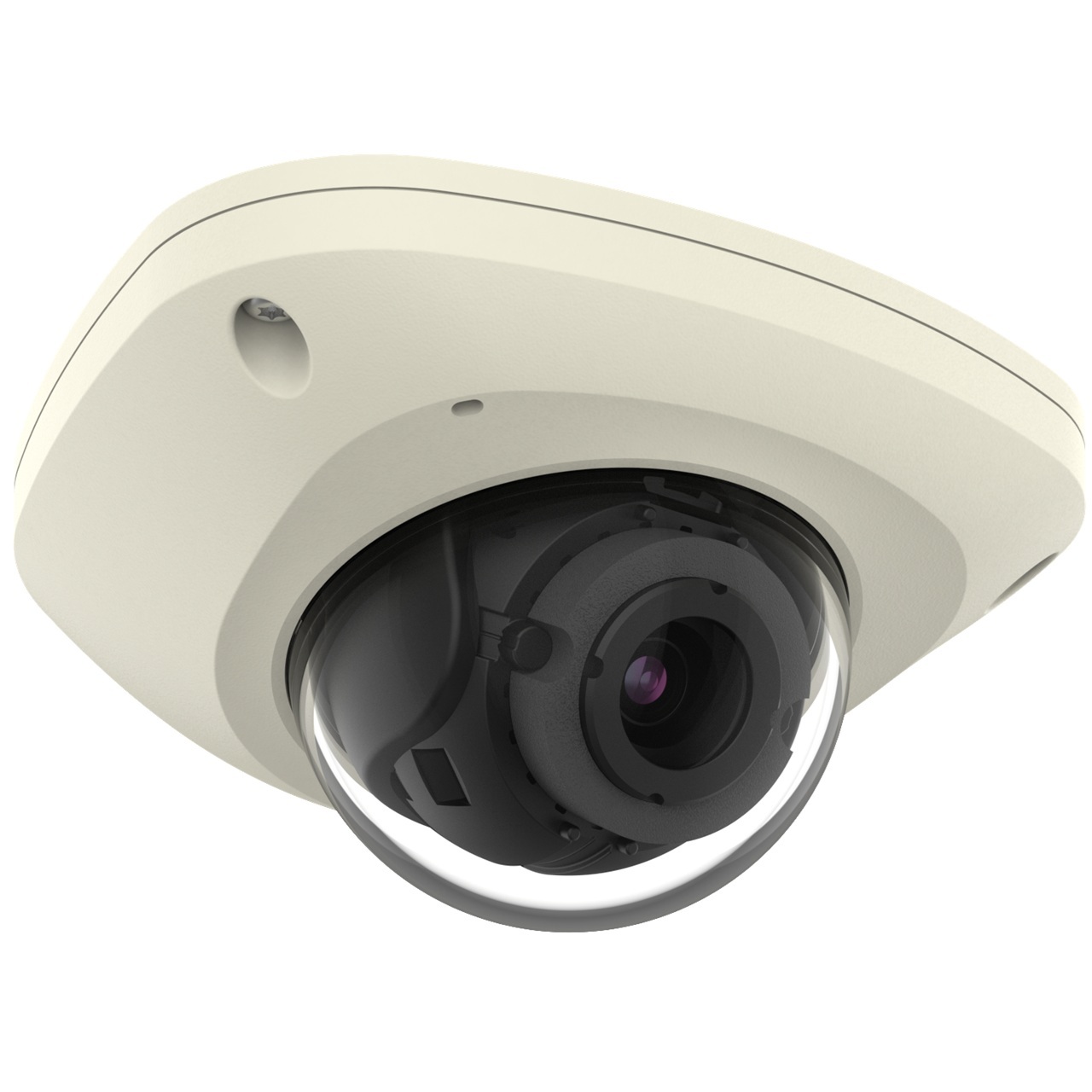

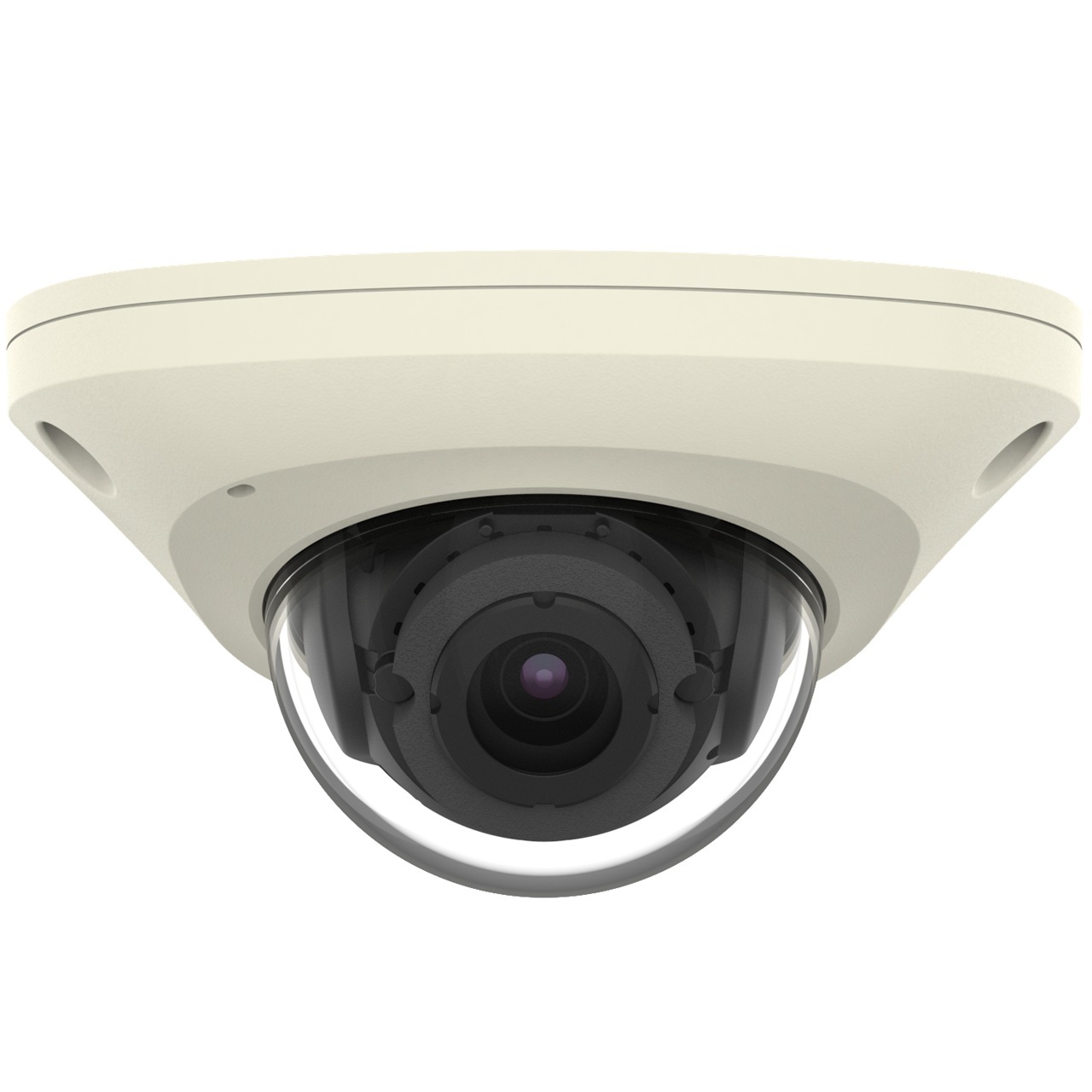

XNV-6012 Hanwha Vision X Series 2.4mm 60FPS @ 2MP Outdoor Day/Night WDR Dome IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.04Lux(F2.0, 1/30sec) BW: 0.04Lux(F2.0, 1/30sec)
• Video Out - USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 2.4mm fixed focal
• Max. Aperture Ratio - F2.0
• Angular Field of View - H: 135.4Ëš, V: 71.2Ëš, D: 161.6Ëš
• Lens Type - Fixed

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - -5~+5° / 0°~67° / -90~+90°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (Electrical)
• Backlight Compensation - BLC, HLC, WDR, SSDR
• Wide Dynamic Range - (150dB)
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 32ea, 4point polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
• Alarm Triggers - Analytics, Network disconnect
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers
• Audio In - Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming (Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC Max. 256GB x 1slot
• Memory - 1024MB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -30°C~+55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C
• Storage Temperature / Humidity - -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Certification - IP66, IK10, NEMA4X EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009 EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 EN61000-4-6:2009, EN50155:2007, NEMA 4X
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE : Max 6.5W

Mechanical

• Color / Material - Ivory / Aluminum
• Product Dimensions / Weight - 98.9(W)x52.0(H)x100.0(D)mm(3.88"x2.08x3.94"), 295g(0.65 lb)

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 15.7m(51.67ft)
• Observe (63PPM/ 19PPF) - 6.3m(20.67ft)
• Recognize (125PPM/ 38PPF) - 3.1m(10.33ft)
• Identify (250PPM/ 76PPF) - 1.6m(5.17ft)
