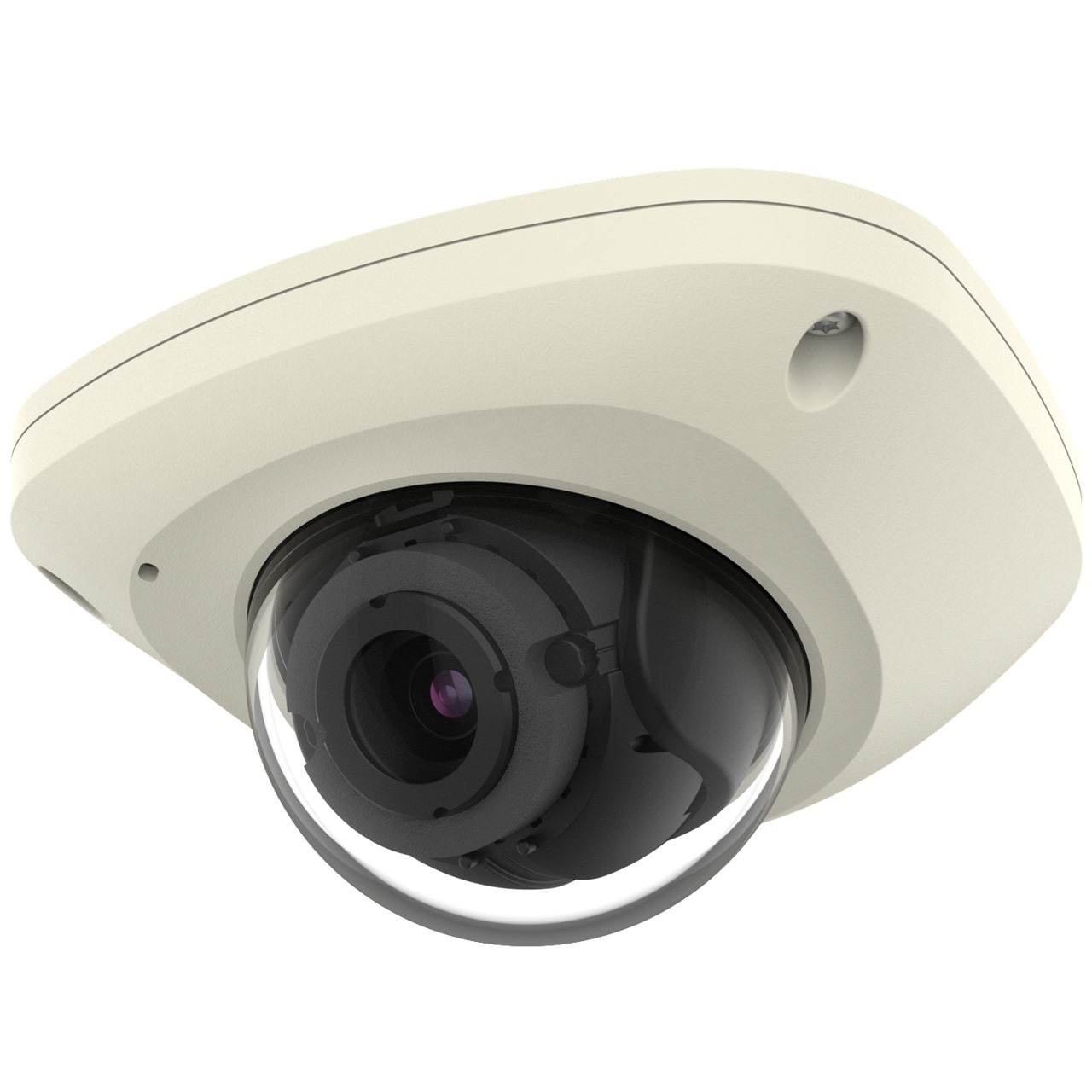

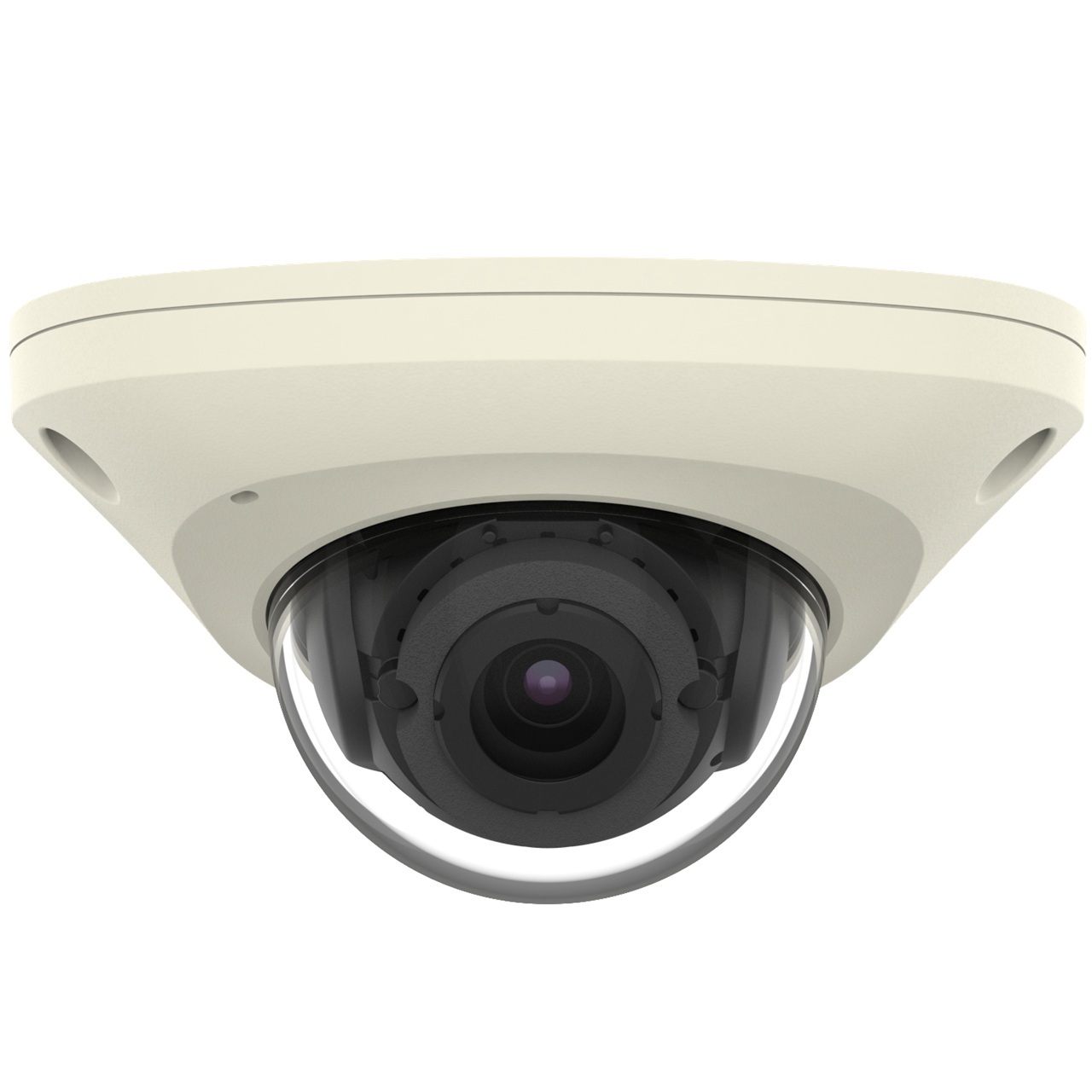

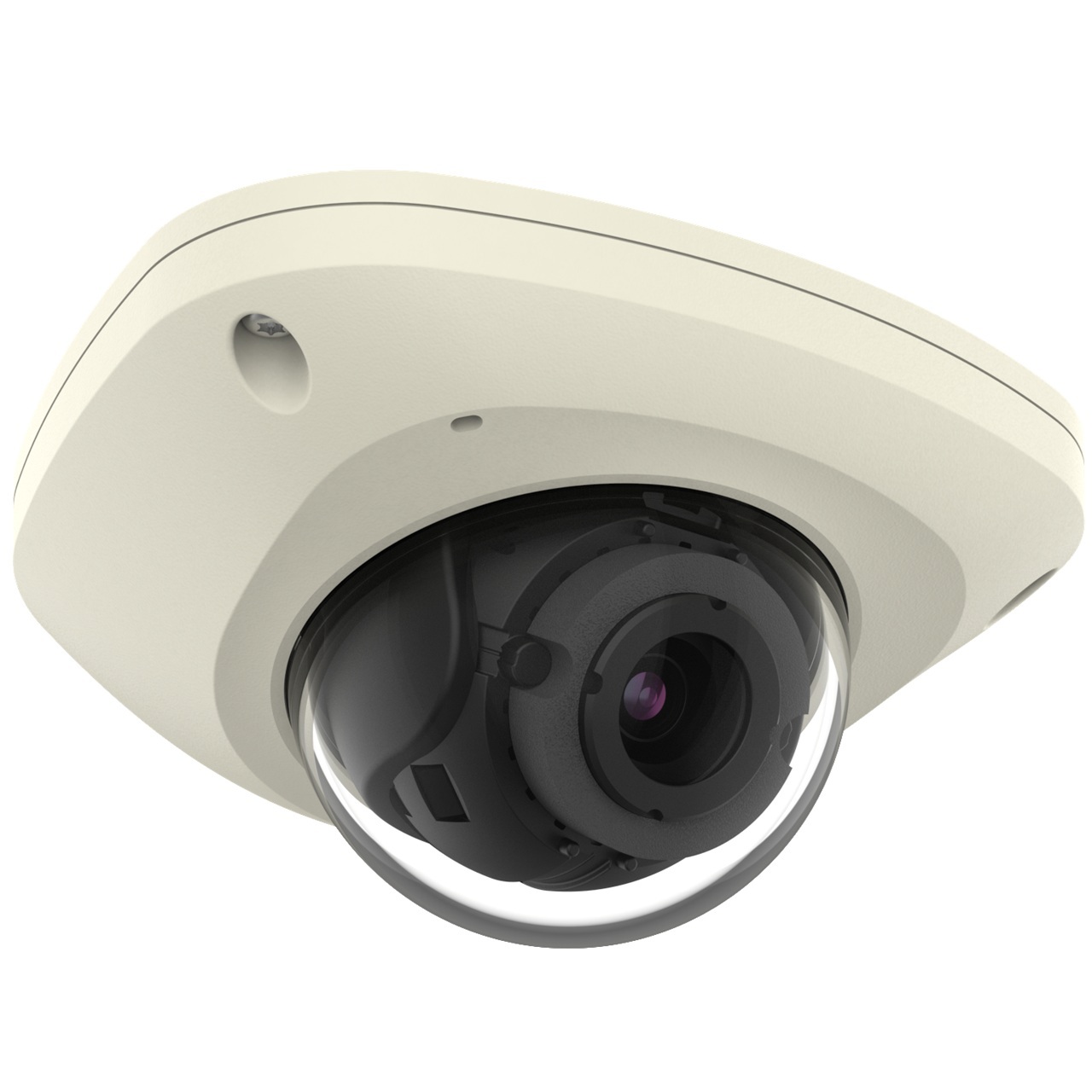

XNV-6012M Hanwha Vision X Series 2.4mm 60FPS @ 2MP Outdoor Day/Night WDR Dome IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps
• Min. Illumination - Color: 0.04Lux(F2.0, 1/30sec) BW: 0.004Lux(F2.0, 1/30sec)
• Video Out - USB: Micro USB Type B

Lens

• Focal Length (Zoom Ratio) - 2.4mm
• Max. Aperture Ratio - F2.0
• Angular Field of View - H: 135.4Ëš, V: 71.2Ëš, D: 161.6Ëš
• Focus Control - Manual

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - ±5° / 0°~67° / ±90°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (Electrical)
• Backlight Compensation - BLC, HLC, WDR
• Wide Dynamic Range - (150dB)
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support (built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Alarm Triggers - Analytics, Network disconnect
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers
• Audio In - Selectable(mic in/line in)
• Audio Out - Line out

Analytics

• Analytics - Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) Digital auto tracking

Network

• Ethernet - M12
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual, WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming (Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, PPPoE, PIM-SM,
• Application Programming Interface - ONVIF Profile S/G SUNAPI(HTTP API) Hanwha Vision open platform

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP)
• Secure Communication - HTTPS
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Secure Storage - SDcard partition encrypt (AES-256)

General

• Edge Storage - Micro SD/SDHC/SDXC Max. 256GB x 1slot
• Memory - 1GB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -30°C~+55°C(-22°F ~ +131°F) / 0~90% RH(non-condensing)
• Storage Temperature / Humidity - -50°C ~ +60°C (-58°F ~ +140°F) / 0~90% RH(non-condensing)
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE : Max 6.5W

Mechanical

• Color / Material - Ivory / Aluminum
• Product Dimensions / Weight - 98.9(W)x52.0(H)x100.0(D)mm(3.89x2.05x3.94"), 295g(0.65 lb)

Certifications & Standards

• Environment - IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X
