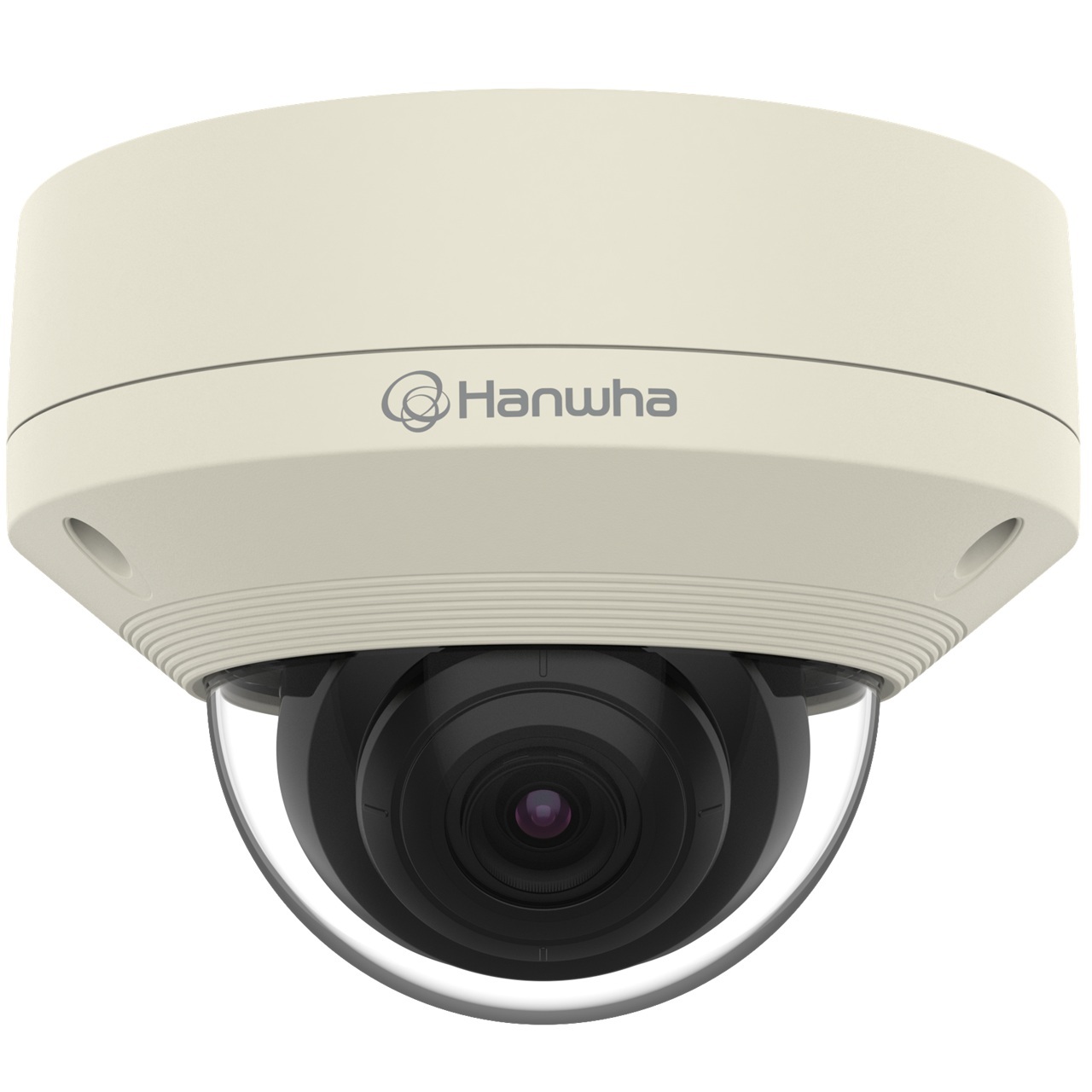

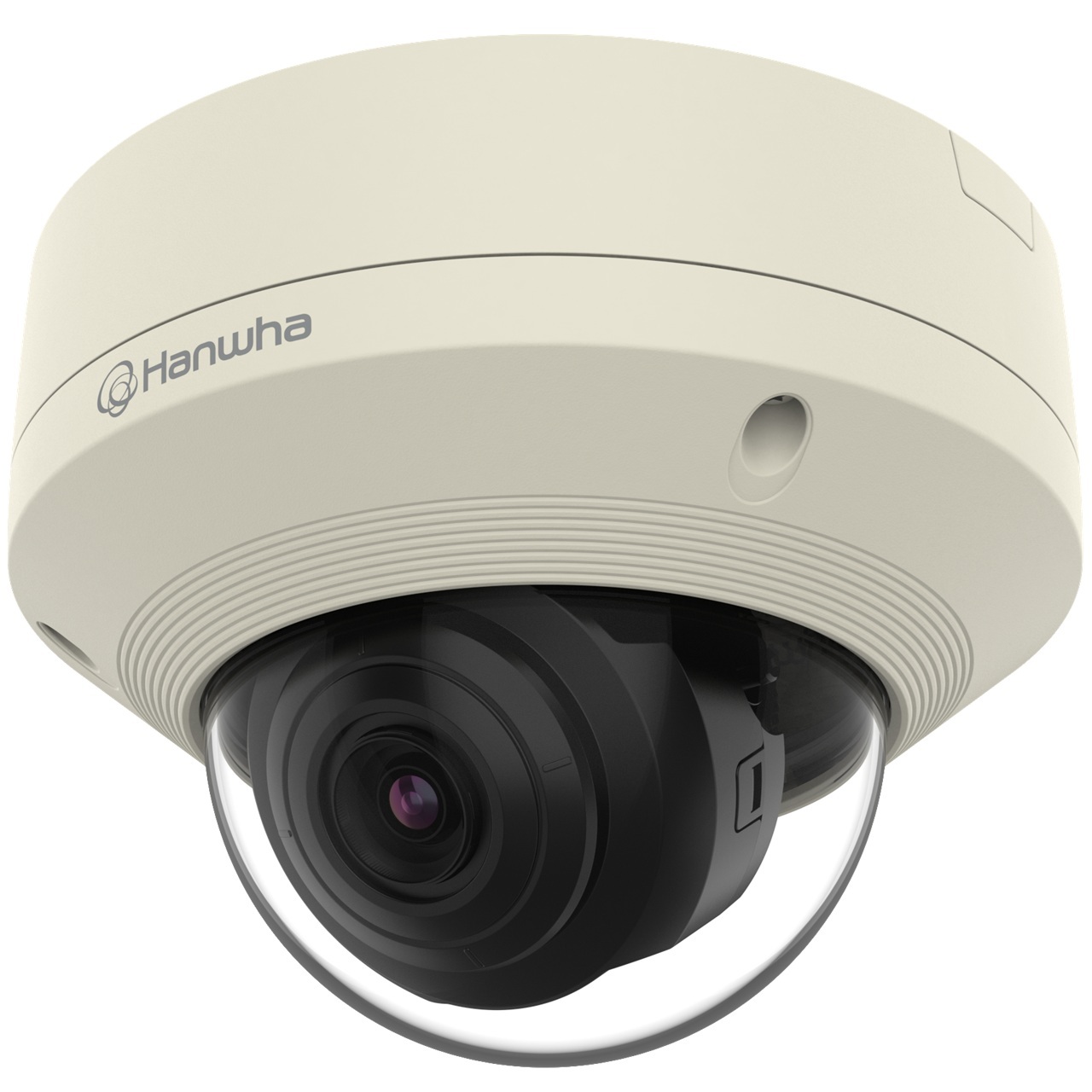

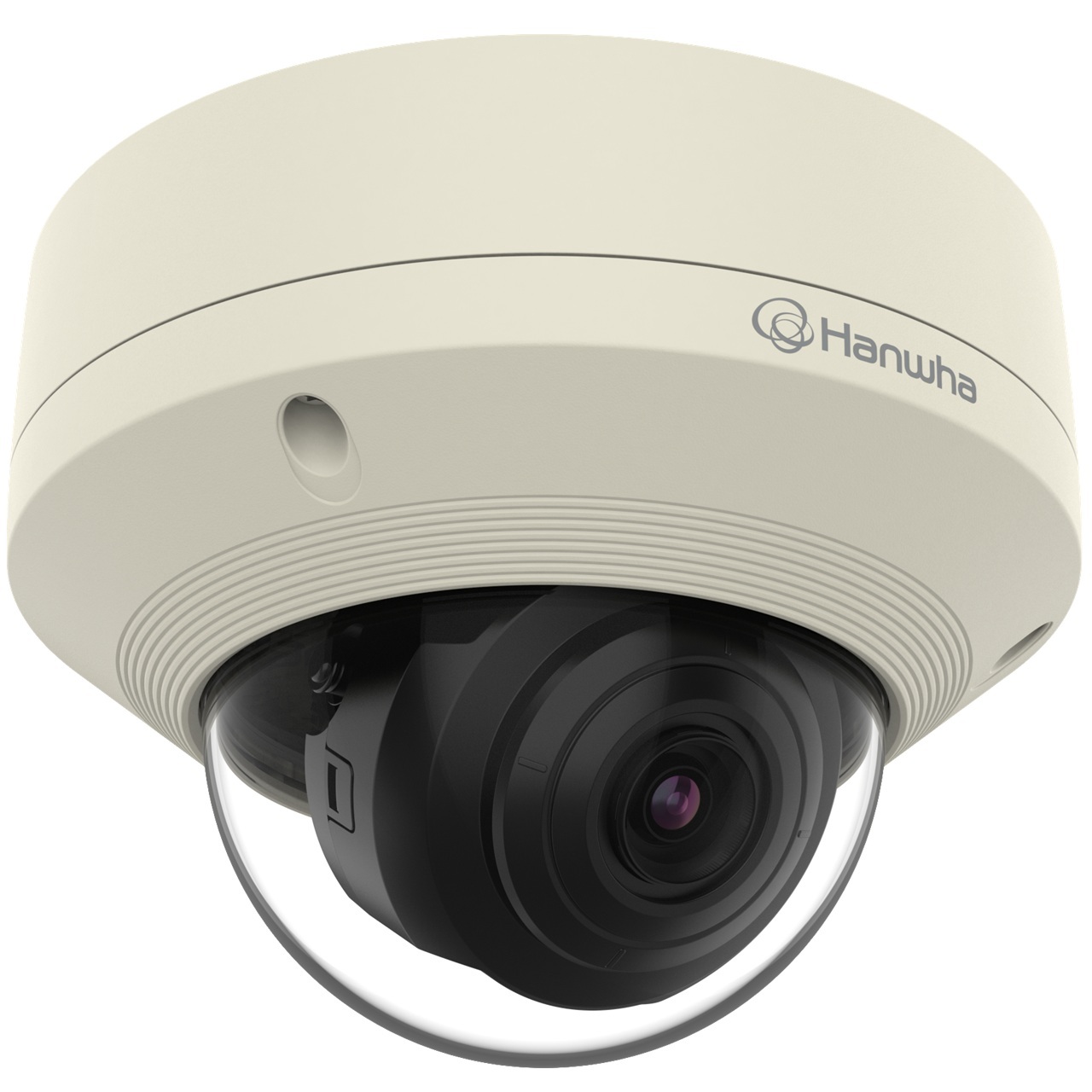

XNV-L6080 Hanwha Vision X Series 3.2-10mm Motorized 60FPS @ 2MP Outdoor Day/Night WDR Dome IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Effective Pixels - 1945(H)x1109(V)
• Min. Illumination - Color: 0.03Lux(F1.6, 1/30sec) BW: 0.003Lux(F1.6, 1/30sec)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 3.2~10mm(3.1x) motorized varifocal
• Max. Aperture Ratio - F1.6(Wide) ~ F2.9(Tele)
• Angular Field of View - H: 109.0°(Wide)~33.2°(Tele) / V: 57.4°(Wide)~18.7°(Tele) / D: 132.0°(Wide)~38.0°(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0Ëš~354Ëš / 0Ëš~67Ëš / 0Ëš~355Ëš

Operational

• Camera Title - Displayed up to 85 Characters
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, HLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRV
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker(2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Defocus detection, Motion detection, Tampering
• Alarm Triggers - Analytics, Network disconnect
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Handover

Network

• Ethernet - RJ-45 (10/100 BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Bitrate Control Method - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Application Programming Interface - ONVIF Profile S/G SUNAPI(HTTP API) Wisenet open platform
• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
• Web Viewer - Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
• Memory - 1024MB RAM, 512MB Flash

Environmental

• Operating Temperature / Humidity - -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
• Certification - IP66, IK10

Electrical

• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE: Max. 11W, typical 5W

Mechanical

• Color / Material - Ivory / Aluminum
• Product Dimensions/ weight - Ø160x118.5mm(Ø6.3x4.67"), 940g(2.1 lb)
