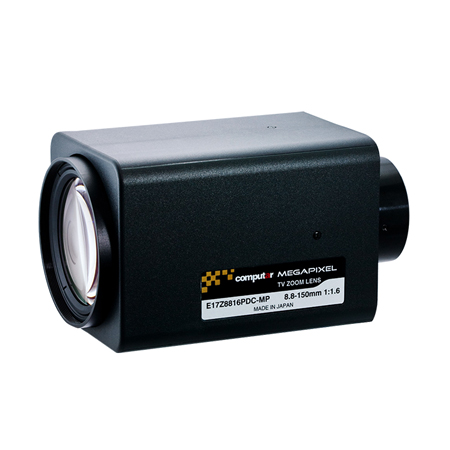

E17Z8816PDC-MP Computar CS-Mount Motorized Zoom 8.8mm‐150mm F/1.8 3 Mega-Pixel DC Auto Iris Lens

Specifications

• Model No. - E17Z8816PDC-MP
• Focal Length - 8.8mm ‐ 150mm
• Max. Aperture Ratio - 1:1.6
• Max. Image Format - φ8.9mm
• Effective Lens Aperture
  • Front - φ56.6mm
  • Rear - φ14.9mm
• Operation Range
  • Iris - F1.6 ‐ F500C
  • Focus - 4m ‐ lnf.
  • Zoom - 8.8mm ‐ 150mm
• Back Focal Length - 13.5mm
• Control
  • Iris - DC Auto Iris
  • Focus - Motorized
  • Zoom - Motorized
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M72 P=0.75mm
• Tripod Screw - 1/4 -20UNC
• Dimensions - W85mm x H85.8mm x D158.5mm
• Weight - 1160g
• Angle of View
  • 1/1.8 type (4:3)
  • D - 54.4°‐ 3.4°
  • H - 44.1°‐ 2.8°
  • V - 33.4°‐ 2.1°
  • 1/2 type (4:3)
    • D - 49.3°‐ 3.1°
    • H - 39.9°‐ 2.5°
    • V - 30.1°‐ 1.9°
  • 1/3 type (4:3)
    • D - 37.4°‐ 2.3°
    • H - 30.1°‐ 1.9°
    • V - 22.7°‐ 1.4°
• Focus
  • Supply Voltage - DC6V
  • Current - 90mA or less
  • Response Time - Approx. 5.4 sec.
  • Preset Potentiometer - 5kΩVR
• Zoom
  • Supply Voltage - DC6V
  • Current - 90mA or less
  • Response Time - Approx. 6.4 sec.
  • Preset Potentiometer - 5kΩVR
• Coil
  • Drive - 190Ω
  • Control - 1000Ω
• Operating Temperature - -10°C ‐ +50°C
