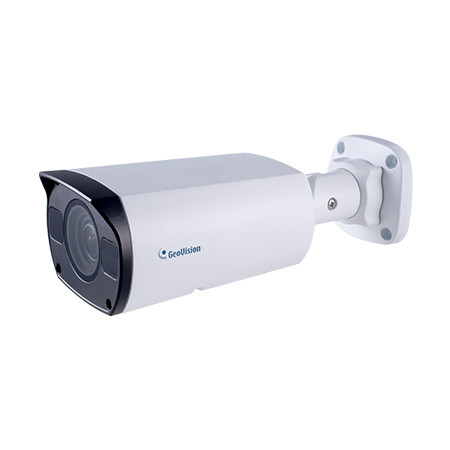

[DISCONTINUED] GV-ABL4712 Geovision 2.8~12mm Motorized 20FPS @ 4MP Outdoor IR Day/Night WDR Bullet IP Security Camera 12VDC/POE

Specifications

Camera

• Image Sensor - 1/3" progressive scan low lux CMOS
• Picture Elements - 2592 (H) x 1944 (V)
• Minimum illumination - Color - 0.01 Lux, IR ON - 0 Lux
• Shutter Speed - Automatic, Manual (1/6 ~ 1/100000 sec)
• White Balance - Automatic, Manual
• Gain Control - Automatic, Manual
• S/N Ratio - 52 dB
• WDR Pro - Yes
• Dynamic Range - Up to 120 dB

Lens

• Megapixel - 4 MP
• Day/Night - Yes (with removable IR‐cut filter)
• Lens Type - Motorized varifocal lens
• Focal Length - 2.8 ~ 12 mm
• Maximum Aperature - F/1.4
• Mount - Ø14 mm
• Horizontal FOV - 27 ° ~ 91°
• Operation - Focus - Auto / Manua, Zoom - 4.3x Optical Zoom, Iris - Fixed
• IR LED Quantity - 2 IR LEDs
• Max. IR Distance - 98.4 ft

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Triple streams
• Video Resolution - Main Stream 2592 x 1520, 2560 x 1440 (Default), 2048 x 1520, 1920 x 1080, Sub Stream 1920 x 1080, 1280 x 720, 720 x 576 (Default), 704 x 288, 640 x 360, 352 x 288, Third Stream (Closed by Default) 720 x 576, 704 x 288, 640 x 360, 352 x 288
• Frame Rate - 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).

Network

• Interface - 10/100 Ethernet
• Protocol - DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, ICMP, L2TP, NTP, RTP, RTSP, SMTP, SIP, TCP,UDP,ONVIF (Profile S)

Mechanical

• Camera Angle Adjustment - Pan/Tile/Rotate: Fixed
• Connectors - Power: DC Jack (DC 12V, 1.25A), PoE, Ethernet: RJ‐45, Audio: 1 in (Audio In Wire); 1 out (Audio Out Wire) *The Audio In port only supports active microphones., Digital I/O: I/O Wires, Local Storage: Micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10) * UHS‐II card types are not supported.

General

• Operating Temperature -  ‐22°F ~ 140°F
• Humidity - 0% to 95% (no condensation)
• Power Source - 12 V DC / PoE (IEEE802.3af)
• Max. Power Consumption - 9 W
• Dimensions (without lens) - 9.98" x 3.4" x 2.8"
• Weight  - 1.28 lb
• Ingress Protection - IP67
• Regulatory - FCC, UL, CE, RoHS compliant

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking
• Language - English

Applications

• Software Supported - GV‐DVR / NVR (V8.7.4.0), GV‐VMS (V16.11.0.0), GV‐Control Center (V3.5.0.0), GV‐Recording Server / Video Gateway (V1.4.0.0), GV‐Redundant / Failover Server (V1.1.0.0)
• Smart Device Access - GV‐Eye for iOS and Android
• Live Viewing - Browser (IE, Chrome, Firefox, Safari), Mobile App

GV-ABL4712 Specifications PDF
