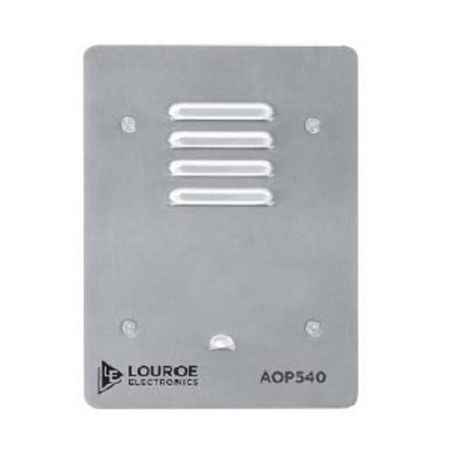

LE-540 Louroe Electronics AOP540 Full Duplex Speakerphone

Model AOP-530 and 540 are wall mount speaker phones. The AOP-530 integrates a 5/8" illuminated call button. They are capable of full duplex communication and electronic noise cancellation. They are designed to interface with various modes of audio/video transmission systems such as IP Network Cameras, Video Encoder that accept audio, DVR's, soundcards, etc.

Microphone Specifications

• Type - Electret Condenser
• Audio output - Line level (0 dB @ 600) unbalanced
• Microphone element sensitivity - -45 dB
• Frequency response - 40 Hz - 15 kHz
• Audio Input Impedance - 600

Speaker Specifications

• Speaker power output - 1W
• Speaker impedance - 4
• Speaker magnet - Neodymium
• Speaker size - 2"
• Current Drain - 200mA
• Supply Voltage - 12Vdc
• Dimensions - 6.5" H x 4.8" W x 1.9"
• Weight - 1lb 7 oz
• Shipping Weight - 3 lbs
