[DISCONTINUED] AE-23E-WBS Vivotek Outdoor Enclosure PoE at 50~57VDC

Search available promotions and discounts for this Item

SKU: AE-23E-WBS

Brand: Vivotek

Weather-proof IP68-rated Enclosure without Wiper (AE-23A, AE-23E)
Vandal-proof IK10-rated Cast Aluminum Housing
Window Demister Heater and Fan
Adjustable Sunshield
Side-Opening Alarm Switch
VAIR Illuminators (Optional)

More details...

Search available promotions and discounts for this Item

MPN: AE-23E-WBS

MSRP Price: $410.00

Online Price: $410.00

DISCONTINUED

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Supreme Series outdoor enclosures are compatible with all VIVOTEK box cameras, including wide-angle lenses r long-distance remote focus lenses. The camera enclosures are constructed from cast aluminum to meet IP68, nd IK 10 standards.

Specifications

Input Voltage - PoE at 50~57VDC

Max Output Power Budget

25 W thru 30W PoE PSE
48 W thru 60W PoE PSE
72 W thru 95W PoE PSE

Power Consumption

Window Heater 10W
Blower - 2W
Camera - 6 ~ 8W
Others - 2W

Optional Vari IR Illuminators Power consumption

AI-106 - 6W
AI-108 - 24W
AI-109 - 48W

Operating Temperature - 20°C ~ 65°C (-4°F ~ 149°F)

Windows Heater ON/OFF - = 30°C (86°F) ON, = 35°C (95°F) OFF

Fan ON/OFF - = 40°C (104 °F) ON, = 35°C (95 °F) OFF

Waterproof IP Rating - IP68

Vandal Proof

IK10
Impact Rated on Cast
Aluminum Housing

Supported Cameras - All VIVOTEK Box Cameras

Included Accessories

Installation Guide
Screw Kit
Wall Mount Bracket
Sun Shield

AE-23E-WBS Specifications PDF

Check out some additional items that you may need to purchase with this product:

AI-106 Vivotek IR Illuminators 25~100m

MSRP Price: $194.40

AI-108 Vivotek IR Illuminators 80~160m

MSRP Price: $388.85

AI-109 Vivotek IR Illuminators 120~250m

MSRP Price: $465.39

IP9165-HP Vivotek 3.6~17mm Varifocal 60FPS @ 1920x1080 Day/Night WDR Box IP Security Camera 12VDC/24VAC/POE

MSRP Price: $900.00

IP9167-HT-10MM Vivotek Varifocal 2.8~10mm Varifocal 30FPS @ 1920x1080 Day/Night WDR Box IP Security Camera 12VDC/POE

MSRP Price: $450.00

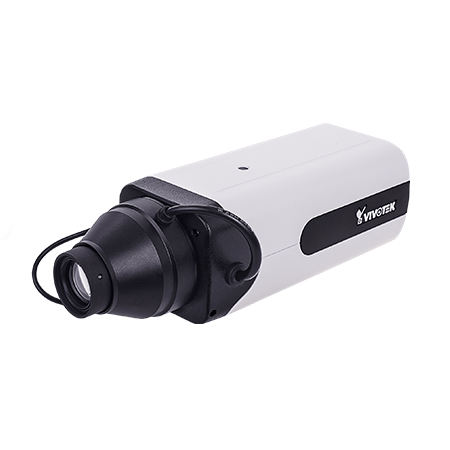

[DISCONTINUED] IP9167-HT-40MM Vivotek 12~40mm Varifocal 30FPS @ 1920x1080 Day/Night WDR Box IP Security Camera 12VDC/POE

MSRP Price: $580.00

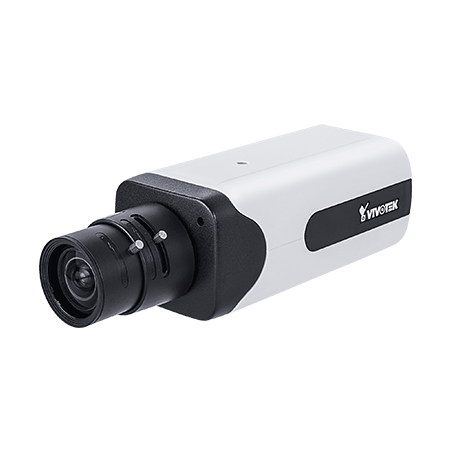

[DISCONTINUED] IP9191-HP Vivotek 3.9~10mm Varifocal 30FPS @ 3840x2160 Day/Night WDR Box IP Security Camera 12VDC/24VAC/POE
