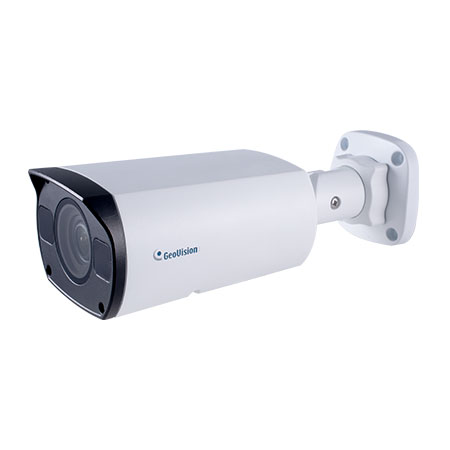

[DISCONTINUED] GV-ABL2702 Geovision 2.8~12mm Varifocal 30FPS @ 1080p Outdoor IR Day/Night WDR Bullet IP Security Camera 12VDC/PoE

The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR‐cut filter and 3 IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With Wide Dynamic Range Pro (WDR Pro), it can process scenes with contrasting intensities of light and produce clear image. The camera adheres to IK10 and IP67 standards and can be powered through PoE.

Specifications

Camera

• Image Sensor - 1/2.9" progressive scan low lux CMOS
• Picture Elements - 1920 (H) x 1080 (V)
• Minimum illumination- Color - 0.002 Lux, IR ON - 0 Lux
• Shutter Speed - Automatic, Manual (1/6 ~ 1/100000 sec)
• White Balance - Auto / Manual
• Gain Control - Auto / Manual
• S/N Ratio - 52 dB
• WDR - Yes
• Dynamic Range - 120 dB

Lens

• Megapixel - Yes
• Focal Length - 2.8 ~ 12 mm
• Day/Night - Yes (with removable IR-Cut Filter)
• Lens Type - Varifocal lens
• Maximum Aperature - F/1.4
• Mount - ™14 mm
• Horizontal FOV - 92™ ~ 34™
• Operation - Focus - Manual (w / lock), Zoom - Manual (w / lock), Iris - Fixed
• IR LED Quantity - 3 IR LEDs
• Max. IR Distance - 50 m (164 ft)

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Triple streams
• Frame Rate - 30 fps at 1920 x 1080 (60 / 50 Hz)
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog, Low Lux Enhancement, Denoise, Metering
• Audio Compression - G.711
• Audio Support - Two‐way audio
• Sensor Input - 1 Input
• Alarm Output - 1 Digital Output

Video Resolution

• Main Stream- 1920 x 1080 (Default)
• Sub Stream- 1280 x 720, 720 x 576 (Default), 704 x 288,352 x 288
• Third Stream (Closed by Default) - 720 x 576, 704 x 288, 352 x 288

Network

• Interface - 10/100 Ethernet
• Protocol - DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA

Mechanical

• Connectors- Power: DC Jack (DC 12V, 1A), PoE (IEEE802.3af), Ethernet: RJ‐45 connector, Audio: 1 in (Audio In Wire); 1 out (Audio Out Wire), Digital I/O: 4‐pin terminal block pitch 3.5 mm (0.14"), Local Storage: Micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) * UHS‐II card type is not supported

General

• Operating Temperature - ‐35™C ~ 60™C (‐22™F ~ 140™F)
• Humidity - 0% to 95% (no condensation)
• Power Source - 12V DC / PoE (IEEE 802.3af)
• Max. Power Consumption - 9 W
• Weight - 0.58 kg (1.28 lb)
• Dimensions (without lens) - 253.4 x 86 x 71.1 mm (9.98" ™ 3.4" ™ 2.8")
• Ingress Protection - IP67
• Vandal Resistance - IK10
• Regulatory - FCC, UL, CE, RoHS compliant

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay, Digital PTZ
• Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish

Applications

• Software Supported - GV‐DVR / NVR (V8.7.4.0), GV‐VMS (V17.1), GV‐Control Center (V3.5.0.0), GV‐Edge Recording Manager (V1.3.0.0), GV‐Recording Server / Video Gateway (V1.4.0.0), GV‐Redundant / Failover Server (V1.1.0.0)
• Smart Device Access - GV‐Eye for iOS and Android
• Live Viewing - Brower (IE, Chrome, Firefox, Safari), Mobile app
• CMS Server support - GV‐Control Center, GV‐Center V2, GV‐Vital Sign Monitor

GV-ABL2702 Specifications PDF
