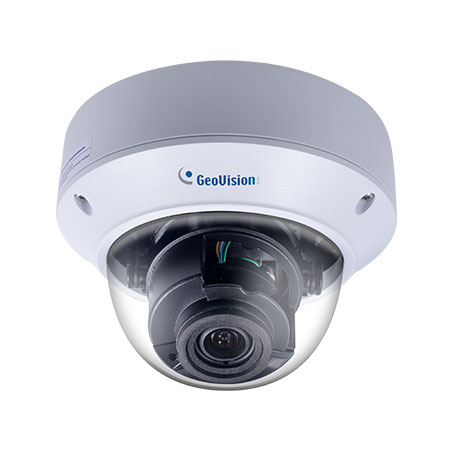

[DISCONTINUED] GV-AVD4710 Geovision 2.8~12mm Motorized 20FPS @ 4MP Outdoor IR Day/Night WDR Vandal Dome IP Security Camera 12VDC/POE

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV‐AVD4710 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR‐cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers an entry‐level surveillance solution with all the essential features and excellent image quality.

Specifications

Camera

• Image Sensor - 1/3" progressive scan low lux CMOS
• Picture Elements - 2592(H) x 1520 (V)
• Minimum illumination- Color - 0.02 Lux, IR ON - 0 Lux
• Shutter Speed - Automatic, Manual (1/6 ~ 1/100000 sec)
• White Balance - Auto / Manual
• Gain Control - Auto / Manual
• S/N Ratio - 56 dB
• WDR - Yes
• Dynamic Range - 120 dB

Lens

• Megapixel - 4 MP
• Focal Length - 2.8 ~ 12 mm
• Day/Night - Yes (with removable IR-Cut Filter)
• Lens Type - Motorized varifocal lens
• Maximum Aperature - F/1.4
• Mount - Ø14 mm
• Horizontal FOV - 91°~27°
• Operation - Focus - Automatic / Manual, Zoom - 4.3x Optical Zoom, Iris - Fixed
• IR LED Quantity - 2 IR LEDs
• Max. IR Distance - 30 m (98.4 ft)

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Triple streams
• Frame Rate - 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520 (60 / 50 Hz)
• Audio Compression - G.711
• Audio Support - Two‐way audio
• Video Resolution
  • Main Stream- 2592 x 1520, 2560 x 1440 (Default), 2048 x 1520, 1920 x 1080
  • Sub Stream- 1920 x 1080, 1280 x 720, 720 x 576 (Default), 704 x 288, 640 x 360, 352 x 288
  • Third Stream (Closed by Default) - 720 x 576, 704 x 288, 352 x 288

Network

• Interface - 10/100 Ethernet
• Protocol - DHCP, DynDNS, FTP, HTTP, HTTPS, IPv4, ICMP, L2TP, NTP, PPPoE, RTP, RTSP, SMTP, SIP, TCP/IP, UDP, ONVIF (Profile S)

Mechanical

• Camera Angle Adjustment
  • Pan - 0° ~ 360°
  • Tilt - 0° ~ 80°
  • Rotate - 0° ~ 360°
• Connectors- Power: DC Jack, PoE, Ethernet: RJ‐45, Audio: 1 in (Audio In Wire); 1 out (Audio Out Wire), Digital I/O: 4‐pin terminal block pitch 3.5 mm (0.14"), Local Storage: Micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) * UHS‐II card type is not supported, TV‐Out: BNC connector

General

• Environment Temperature - ‐40°C ~ 60°C (‐22°F ~ 140°F)
• Humidity - 0% to 95% (no condensation)
• Power Source - 12V DC / PoE (IEEE 802.3af)
• Max. Power Consumption - 7.2 W
• Weight - 0.75 kg (1.7 lb)
• Dimensions (without lens) - Ø148 x 111.3 mm (Ø5.8" x 4.4")
• Ingress Protection - IP67
• Vandal Resistance - IK10 (for metal casing)
• Regulatory - FCC, UL, CE, RoHS compliant

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay, Digital PTZ
• Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish

Applications

• Software Supported - GV‐DVR / NVR (V8.7.4.0), GV‐VMS (V17.1), GV‐Control Center (V3.5.0.0), GV‐Edge Recording Manager (V1.3.0.0), GV‐Recording Server / Video Gateway (V1.4.0.0), GV‐Redundant / Failover Server (V1.1.0.0)
• Smart Device Access - GV‐Eye for iOS and Android
• Live Viewing - Brower (IE, Chrome, Firefox, Safari), Mobile app
• CMS Server support - GV‐Control Center, GV‐Center V2, GV‐Vital Sign Monitor
