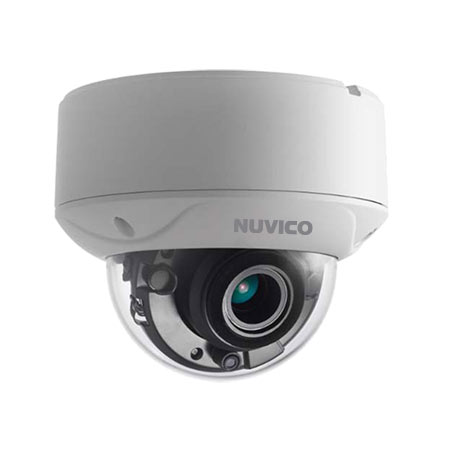

TCH-5M-OV21 Nuvico 2.7~13.5mm Motorized 20FPS @ 5MP Indoor/Outdoor IR Day/Night Vandal Dome HD-TVI/HD-CVI/AHD Security Camera 12VDC/24VAC

SKU: TCH-5M-OV21

Brand: Nuvico

MPN: TCH-5M-OV21
Availability: In Stock
Ordering Notes: Service Professionals Only

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Specifications

Image Sensor - 5MP CMOS Image Sensor
Resolution - 5MP (2592 x 1944)
Lens - 2.7~13.5mm Motorized Varifocal
Horizontal FOV - 95.7° ~ 29.1°
Video Output - HD-TVI / HD-CVI / AHD
Day/Night - IR with Cut Filter
IR LED Distance - Up to 130 ft.
Shutter Time - PAL: 1/25s to 1/50,000s, NTSC: 1/30s to 1/50,000s
Minimum Illumination - Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Frame Rate - NTSC: 20FPS @ 5MP, 30FPS @ 4MP, 30FPS @ 1080p, PAL: 20FPS @ 5MP, 25FPS @ 4MP, 25FPS @ 1080p
Operating Temperature - -40°F ~ 140°F
Operating Humidity - 90% or Less Non-condensation
Power Consumption - Max 6W
Power Requirement - 12 VDC / 24 VAC
Protection - IP67, IK10
Dimensions - Ø 5.5" X 5.0"
Weight - 1.44 lbs
Warranty - 3 Years
Package Contents - Camera, Installation Manual / Template, Installation Accessories
