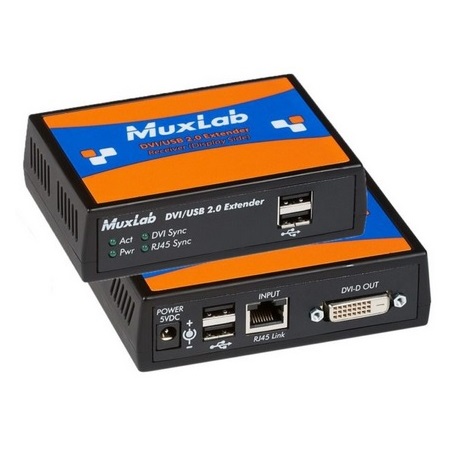

500391 Muxlab DVI/USB 2.0 Extender Kit

Specifications

• Environment - DVI 1.0 (Single Channel) & USB 2.0
• Devices - Projectors, monitors, PC, laptops, mouse, keyboard, webcam
• Transmission - Transparent to the user
• Bandwidth - 340 MHz
• Signals - DVI 1.0 protocol, USB2.0
• USB - One input (type B) on TX side and 4 output (type A) on RX. Bandwidth available: Up to 250 Mbps.
• Connectors - One (1) DVI-D receptacle One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair On TX: 1 standard USB connector type B On RX: 4 standard USB connector type A Note: Cables not included
• Maximum Distances Based on a maximum length of 6.6ft / 2m of DVI cable per end - Cat 5e/6: 330ft / 100m up to 1920x1200 230ft / 70m for 4K (3840x2160 @ 24 / 25 / 30Hz) Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
• RJ45 Configuration - Reverse Polarity Sensitive. Use EIA/TIA 568A or 586B straightthrough wiring.
• RJ45 Link - Pin 1 (R) Pin 2 (T) Pin 3 (R) Pin 6 (T) Pin 4 (R) Pin 5 (T) Pin 7 (R) Pin 8 (T)
• Cable - One (1) Cat 5e/6 or better twisted pair cables required
• Power Supply - Two (2) 110-240V/5VDC power supplies with interchangeable blades
• Power Consumption - Transmitter: 3 Watts Receiver: 7 Watts
• Temperature - Operating: 0° to 40°C
• Humidity: - Up to 95% non-condensing
• Enclosure - Aluminum
• Dimensions - 4.50" x 3.00" x 1.25" (114 x 76 x 32 mm)
• Weight - 2.6 lb / 1.2 kg
• Compliance - Regulatory: FCC, CE, RoHS

500391 Specifications PDF
